Summary
Advanced features and ultimate performance is what this 32" D-Series Stereo TV is all about. 3-Line Digital Comb Filter, Component Video Input, TheaterPro 6500K Color Temperature Setting, S-Video Input, 2 AV Inputs, XDS Auto Clock Set with ID Display and BBE High Definition Audio deliver a picture more vibrant, and sound more natural than any other standard definition TV.
Manuals
Media & Promo Materials
- JVC Product Page
- Later JVC Product Page
- Consumer Reports December 2004

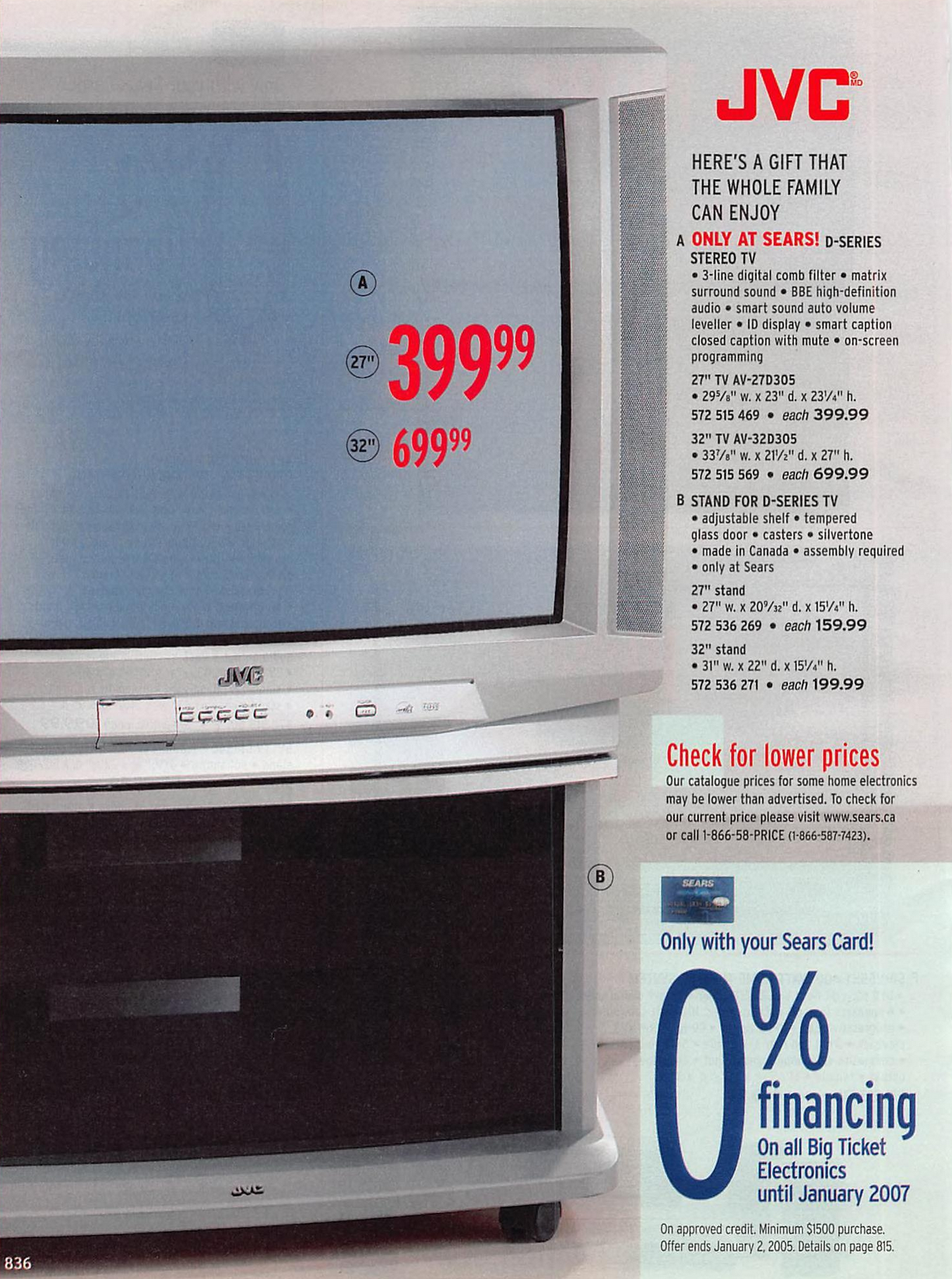

- Consumer Reports Electronics Buying Guide 2006
- Consumer Reports Buying Guide 2006
Mods & Repair Guides
Notes

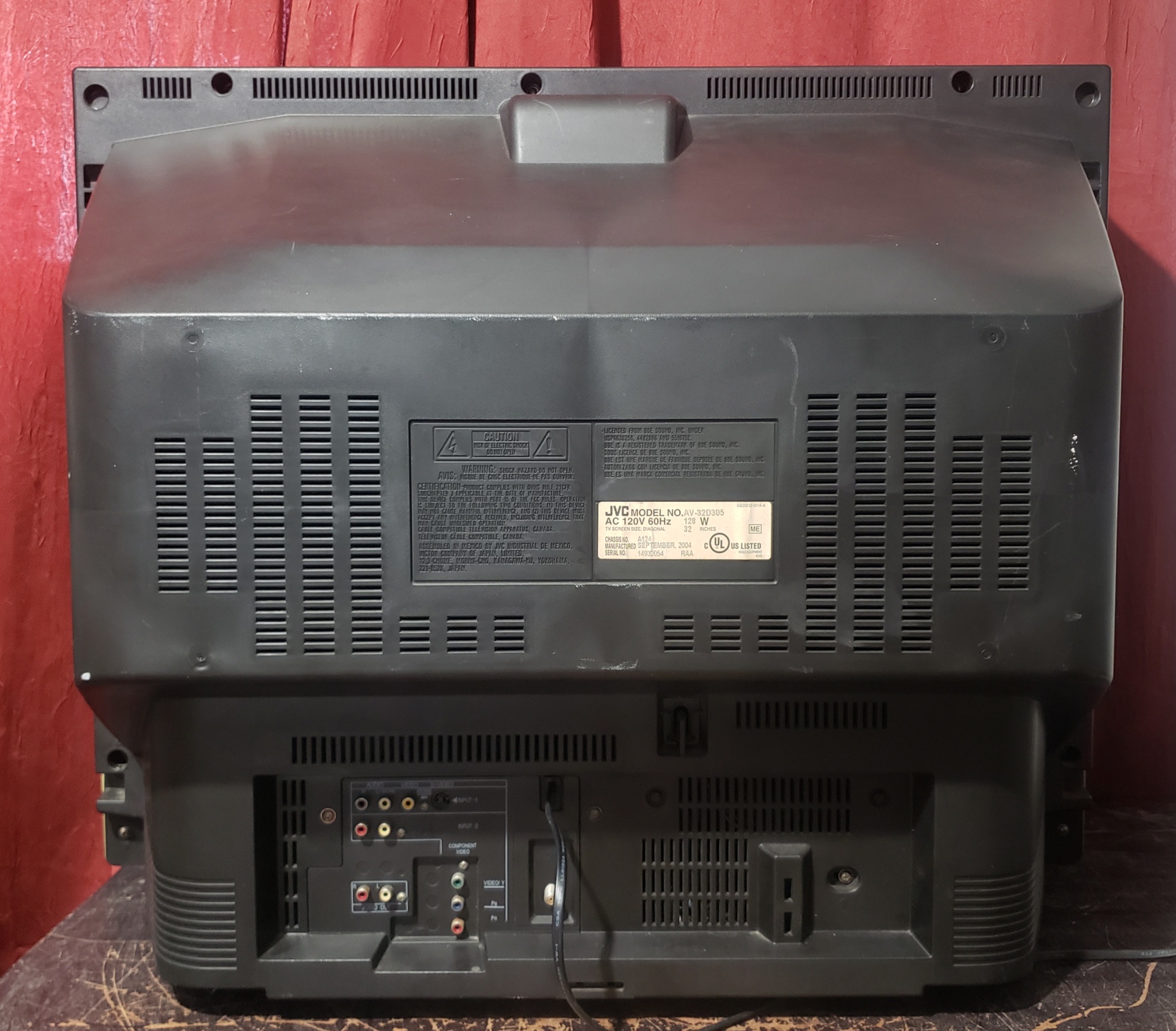

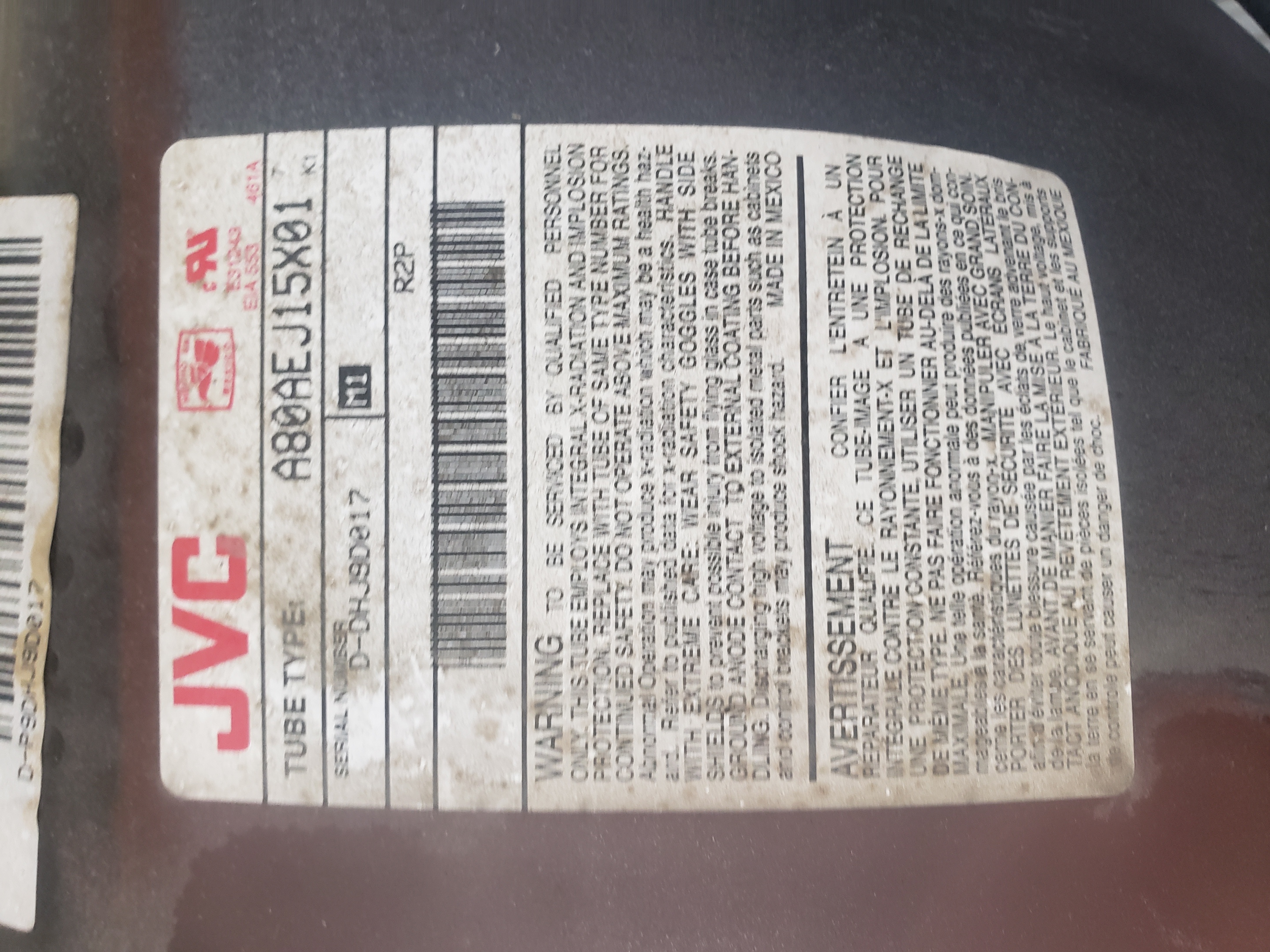

On the back label, an R or RAA suffix indicates the tube is made by Thomson, Y for Toshiba. While the suffixes to the serial number on the back label indicate who the tube manufacturer was, the picture quality of a set is determined by evaluating the picture itself and NOT by simply checking the suffix on the back label.

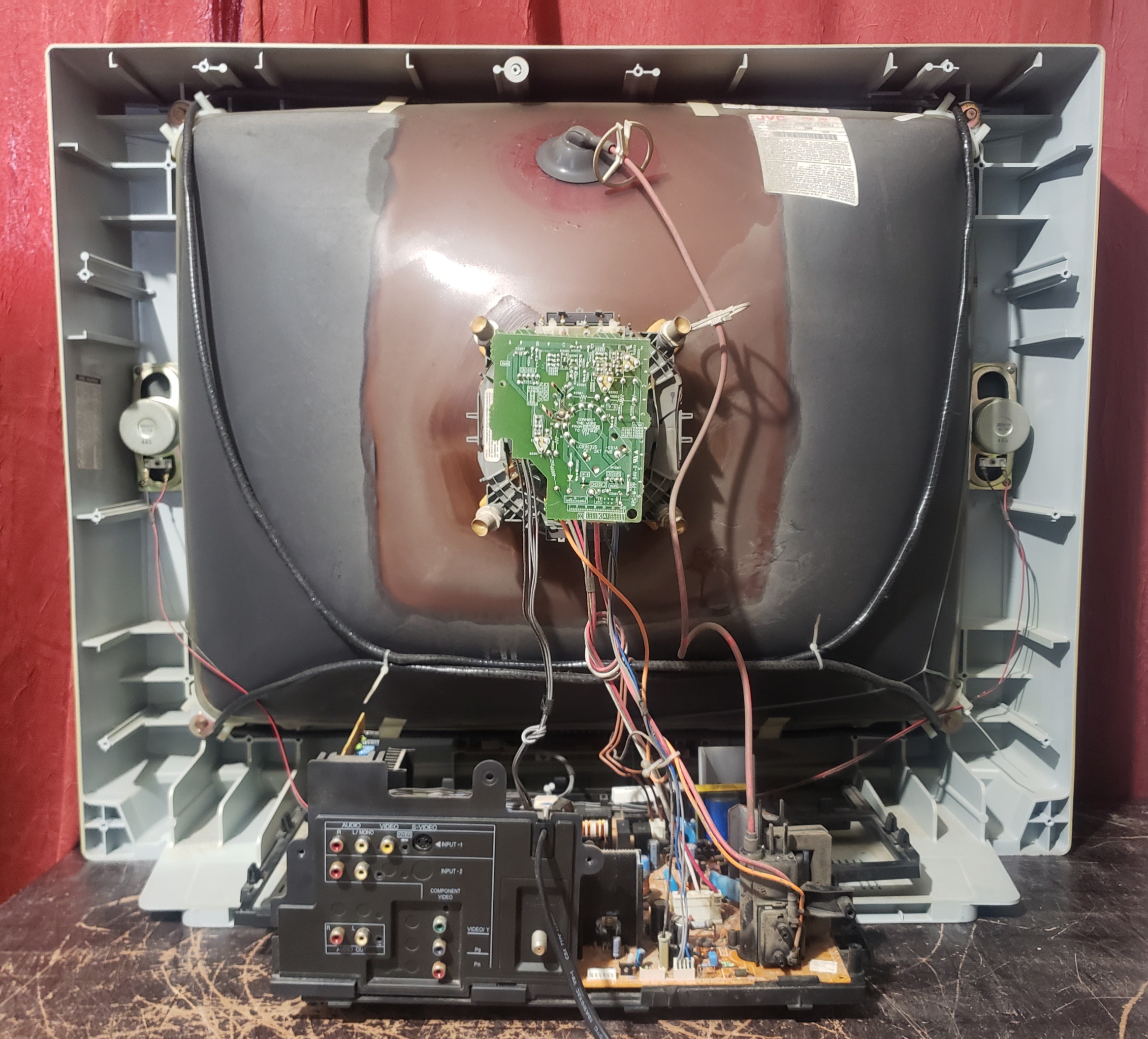

There is a 3-position vertical position switch internally at the rear of the main PCB; when viewed from the rear, the left-most position is the lowest vertical position and the right-most position is the highest.
Repair Notes
There is an error on the schematic. The non-grounded side of C526 should be connected to pin 3 of the flyback (ABL). The dot joining those two lines is missing on this schematic, but is present on prior years.

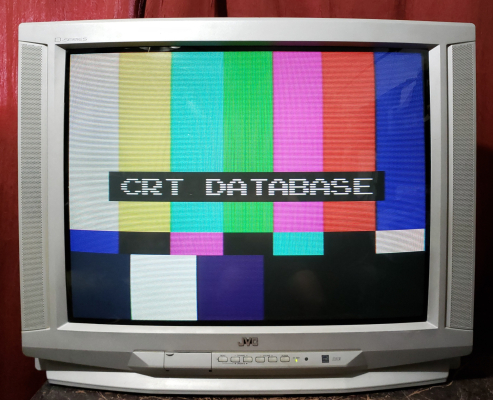

Unit pictured exhibited an extremely garbled picture on composite, a very dim picture on component, and adjusting contrast would have no effect. R527 & R528 had gone open and replacing fixed all issues.

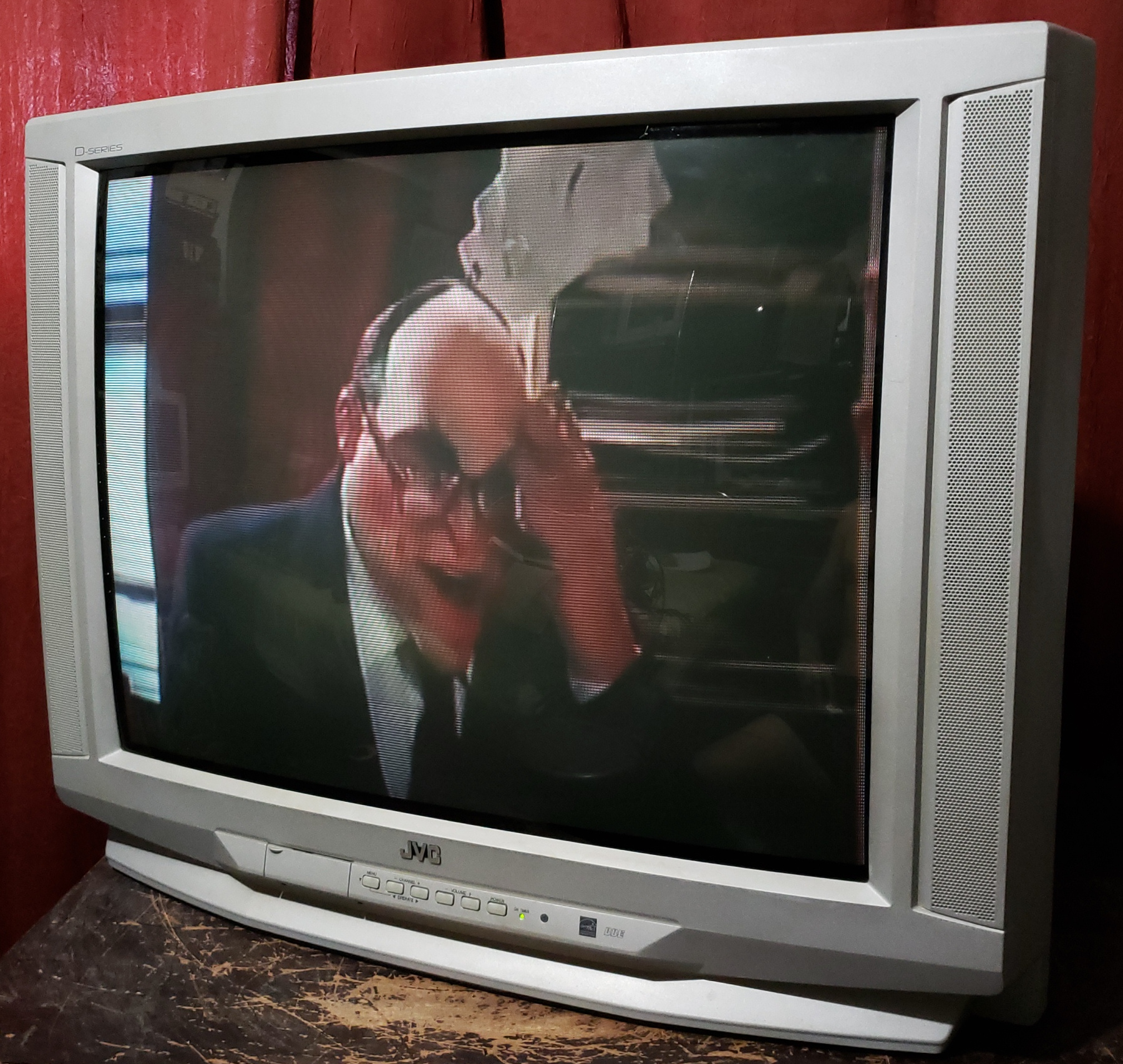

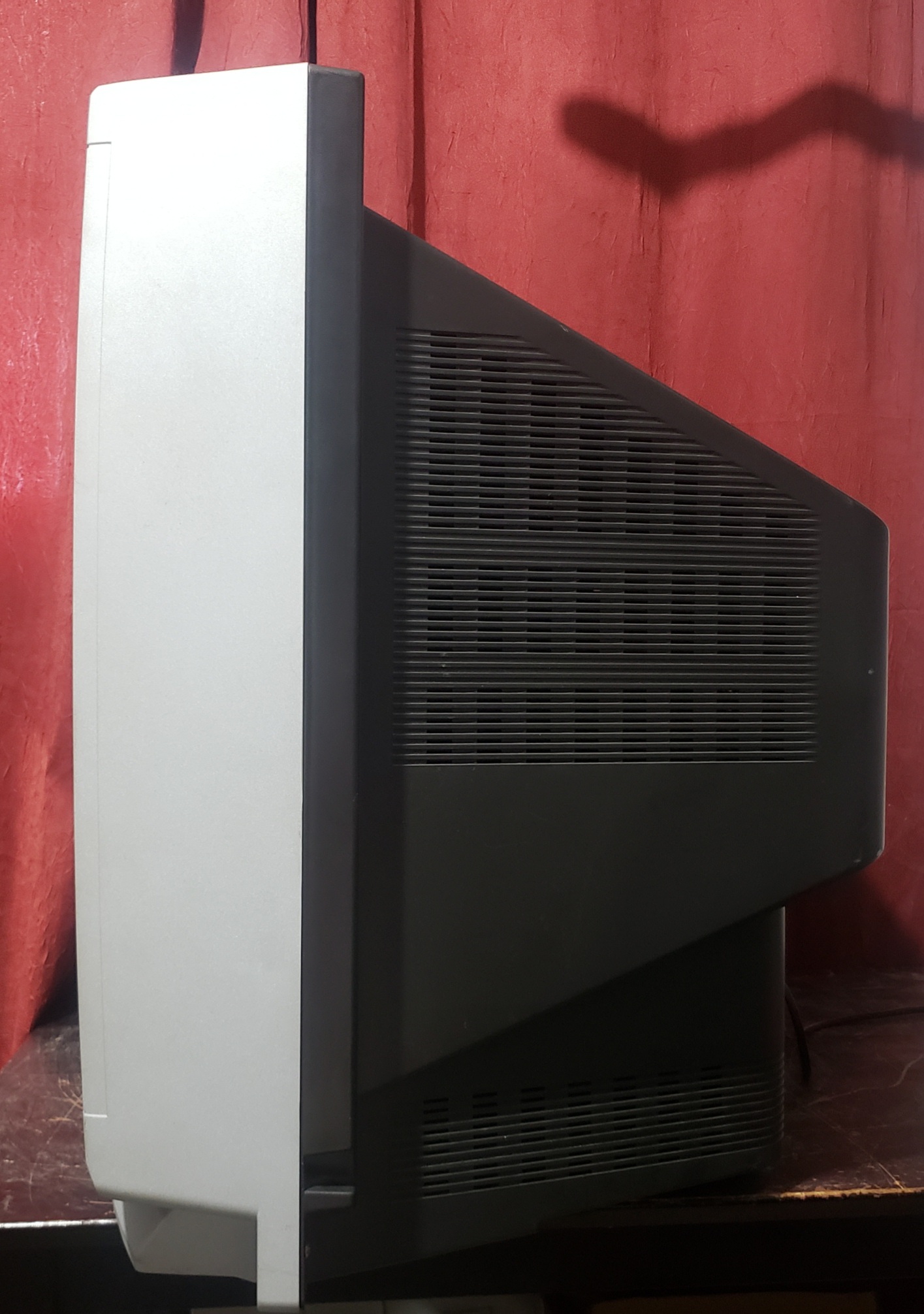

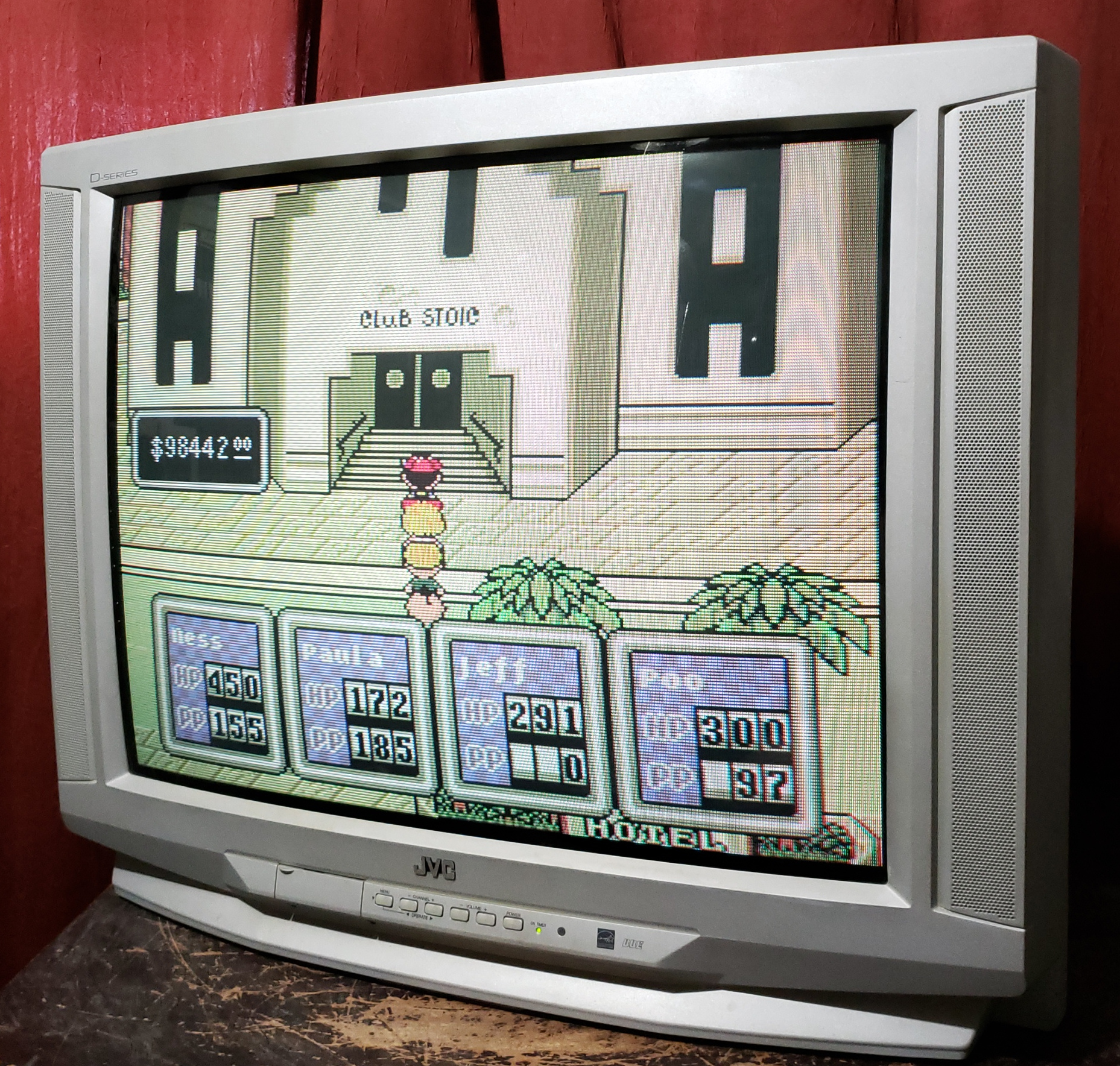

Gallery










Specifications | |
---|---|
Brand: | JVC |
Manufacturer: | JVC |
Model: | AV-32D305 |
Series: | D-Series |
Viewable Size: | 32" |
Inputs: | Composite, S-Video, RF, Component YPbPr |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Horz. Output Transistor: | 2SD2645-YD |
Vertical Output IC: | LA78041 |

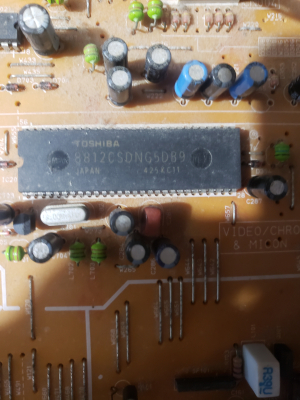

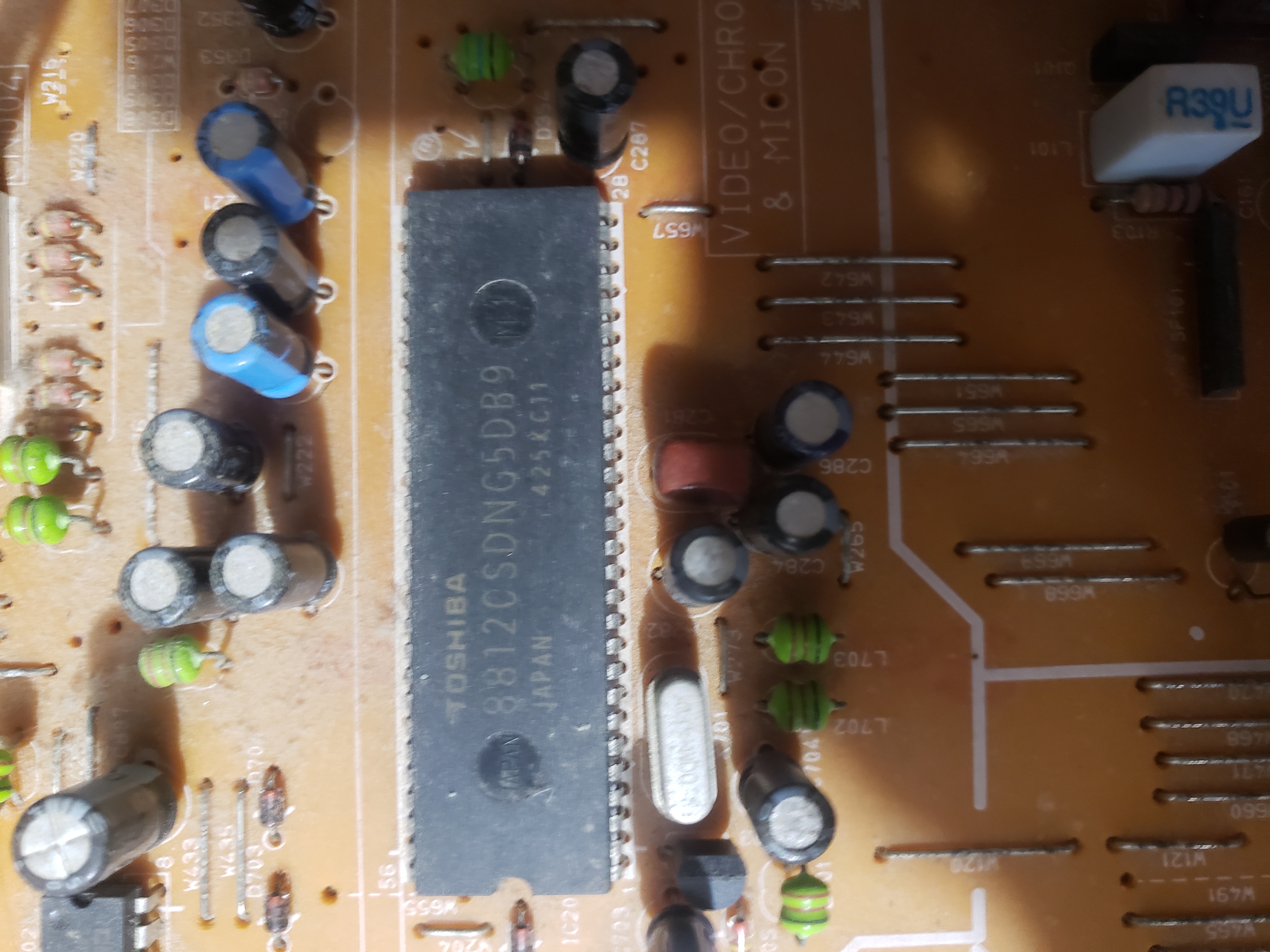

Jungle: | TM8812C, TM8812CSDNG5DB9 |
Comb Filtering: | 3-Line Digital |
Comb Filter IC: | TC90A49AP |

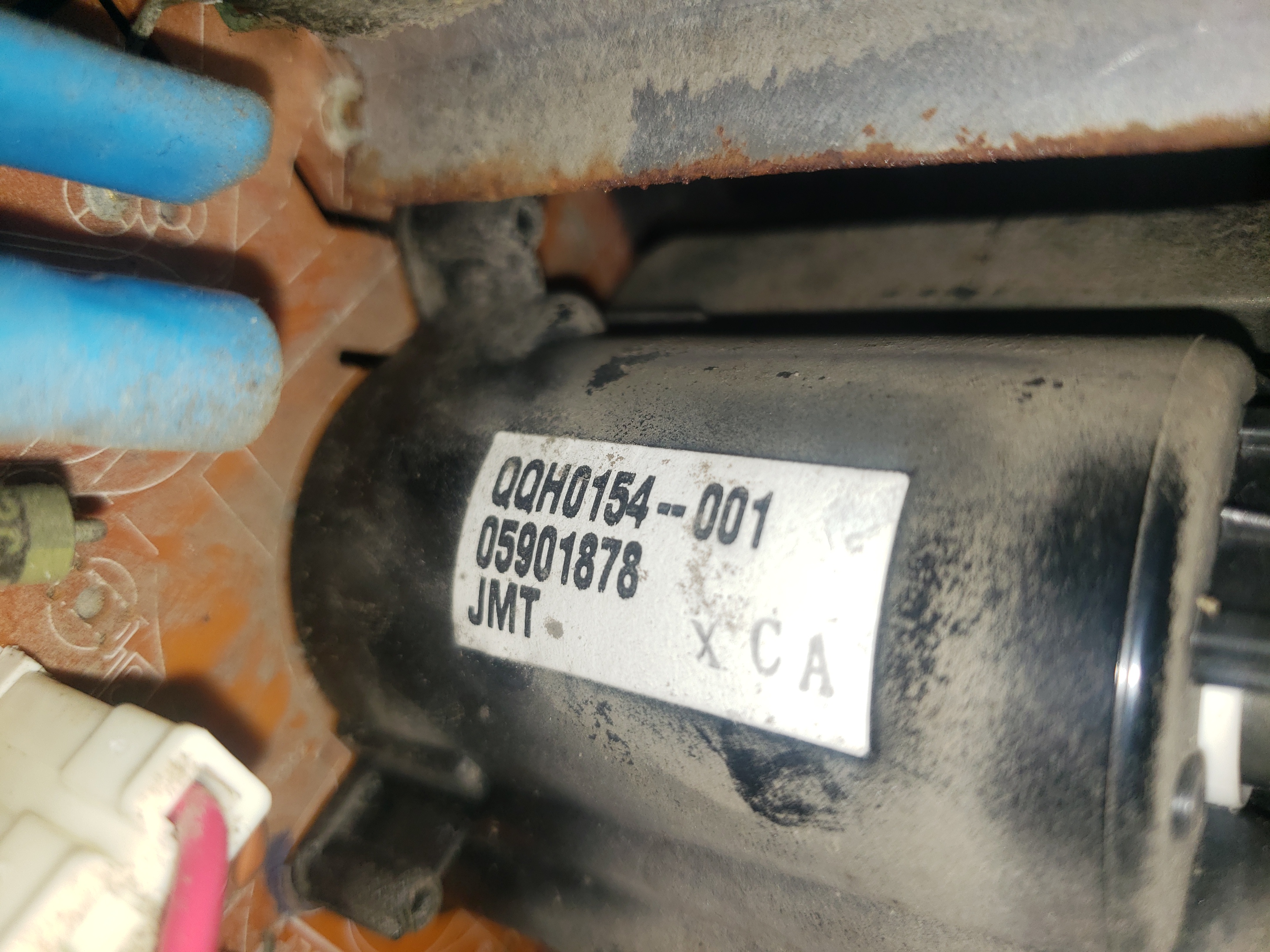

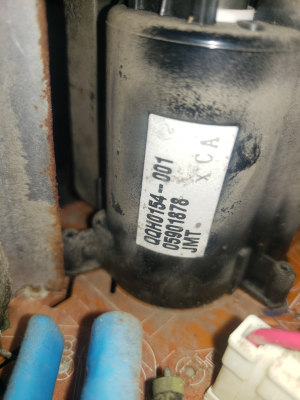

Flyback: | QQH0175-001, QQH0154-001 |
Focus Type: | Single |
Tube: | Toshiba , Thomson , M80JUA061X , A80AEJ15X01 , A80AEJ15X , M80JUA061X06 |
Heater Voltage: | 6.3v |
Deflection: | 110° |
Mask: |
Slot
![]() |
Pitch: | .92 mm |
Tint: | Dark |
Removable Glare Film: | No |
Yoke: | 79L1UBP |
Yoke Horz. Resistance: | 1.3 ohm |
Yoke Vert. Resistance: | 9.2 ohm |
Speakers: | Stereo, 5W x 2 |
Remote: | RM-C1259G-1H |
Chassis: | GE4, A124 |
Weight: | 114.4 lbs (51.9 kg) |
Dimensions (W/H/D): |
859 x 684 x 548 mm
(33.8 x 26.9 x 21.5") |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 2004 |
MSRP: | 449 USD |
Country of Manufacture: | Mexico |
Market: | North America |
Power Standard: | 120v |
Mounting: | OEM Stand |
Degaussing: | Automatic on Power-on |
Tag: | Repair Log |
