Summary
Manufactured by Funai, this TV is the same as the Sylvania 6513DF and the Symphonic SC513DF. Requires a compatible remote with a "Picture" button in order to access picture settings. The internal DVD player is connected to the jungle chip via Y/C (S-Video).
Manuals
Mods& Repair Guides
Notes
This Magnavox service manual includes the supplimental page for rebadged part. The service manual also documents multiple crt tube variations, our electrical metrics only cover one tube and yoke.

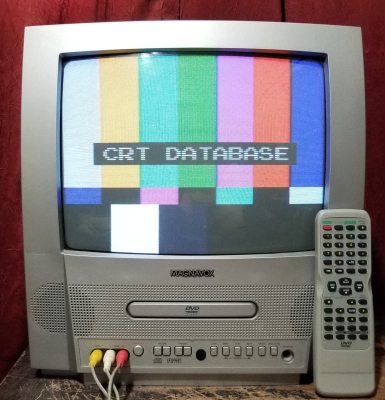

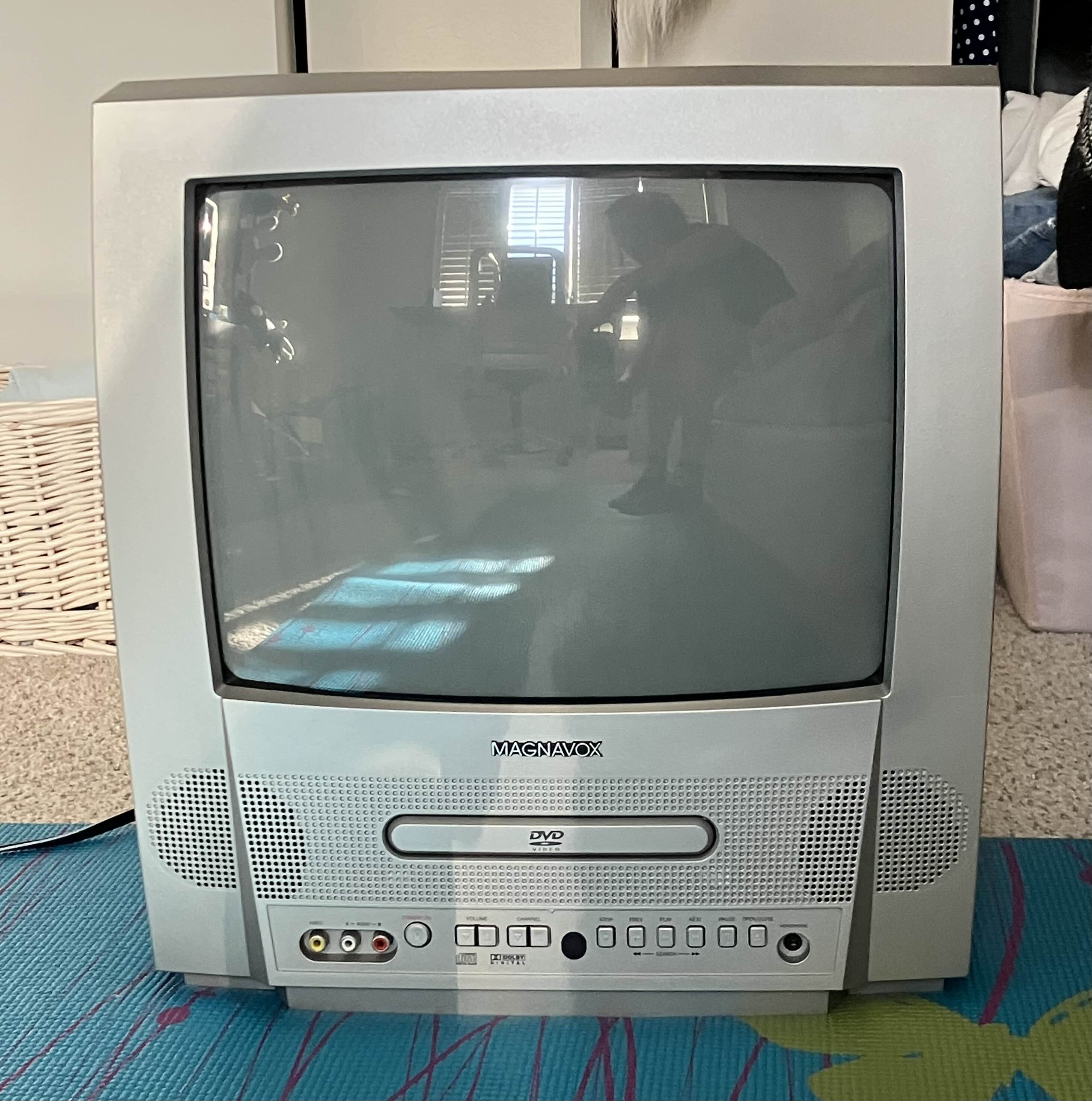

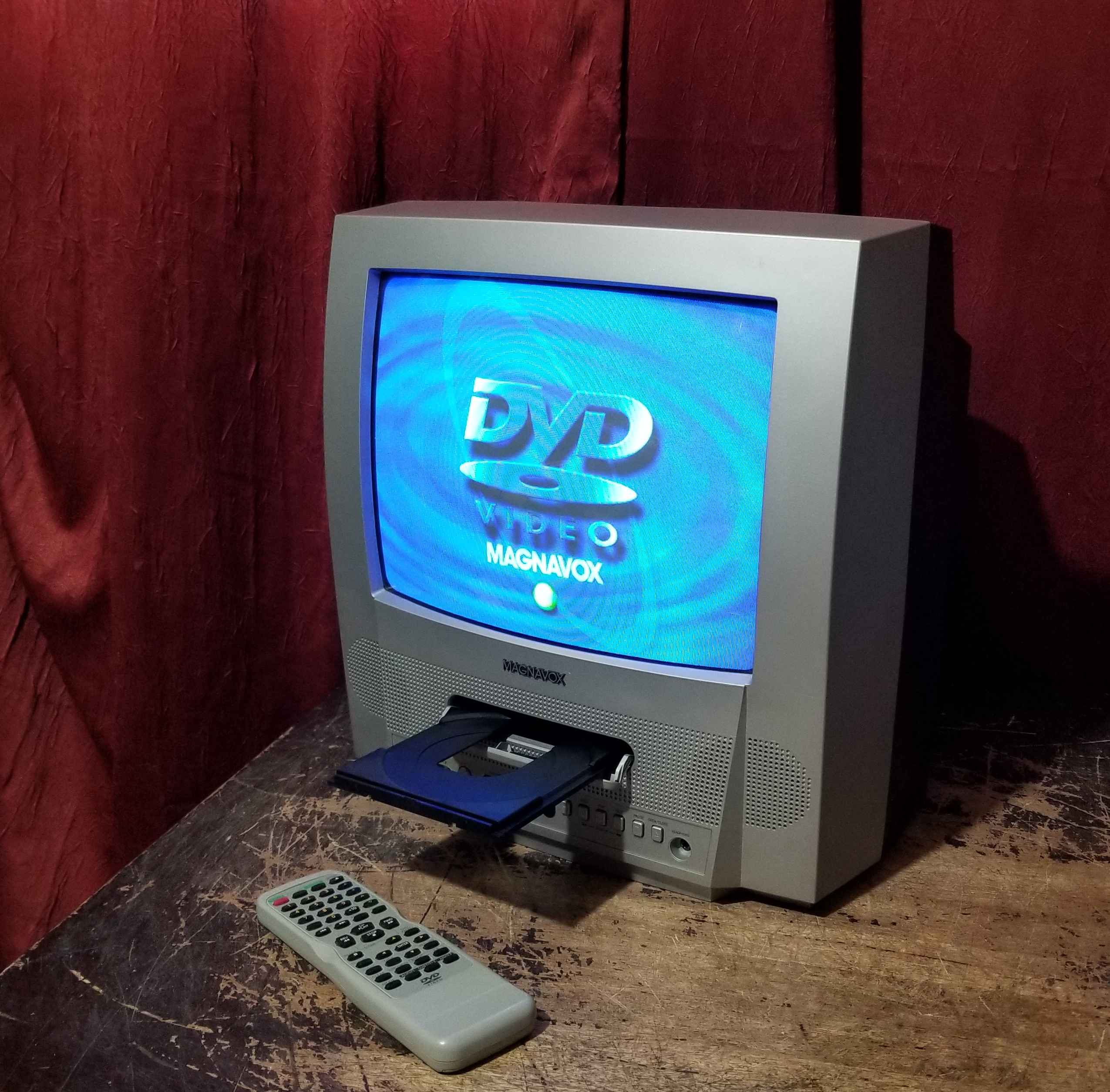

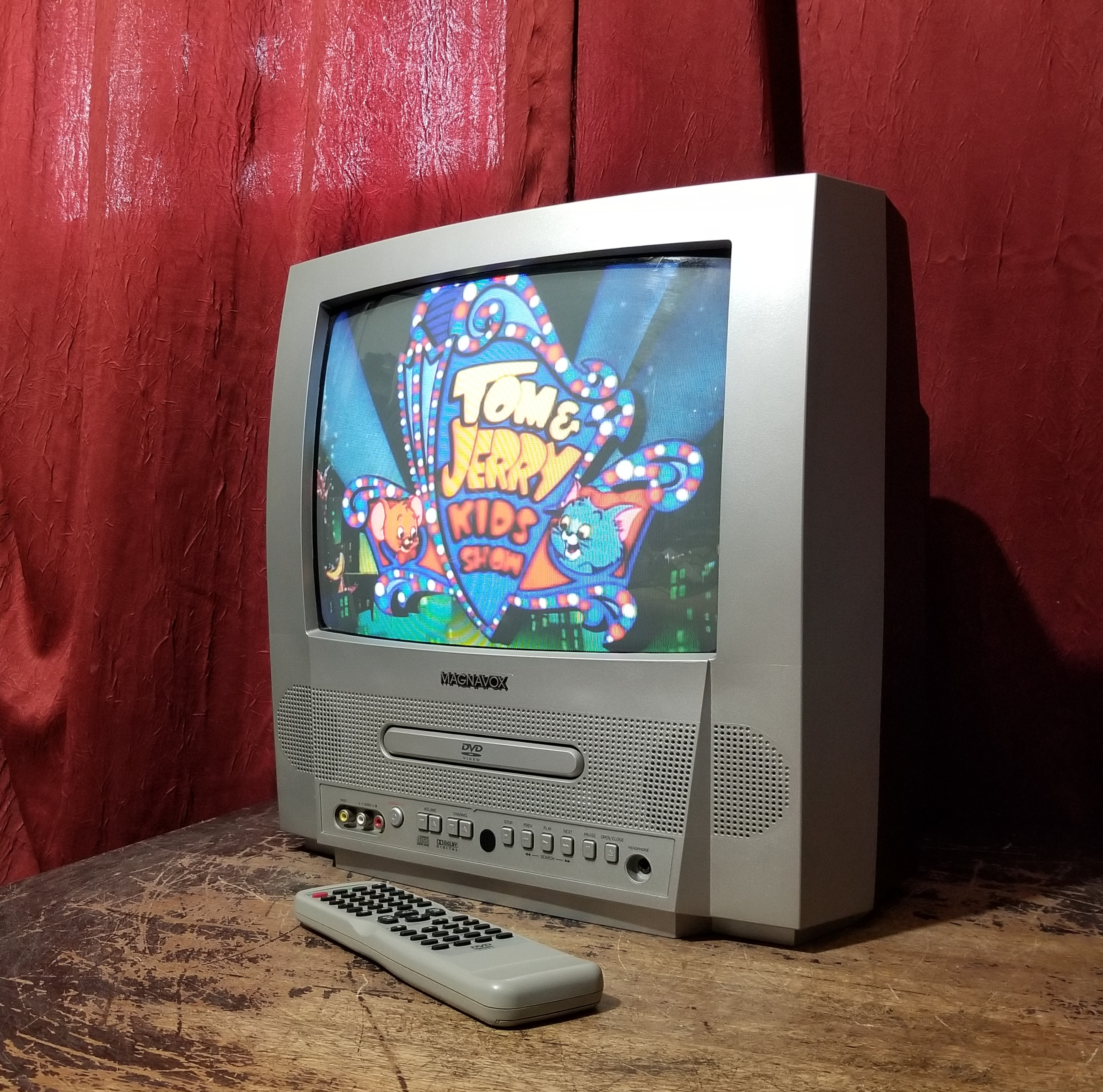

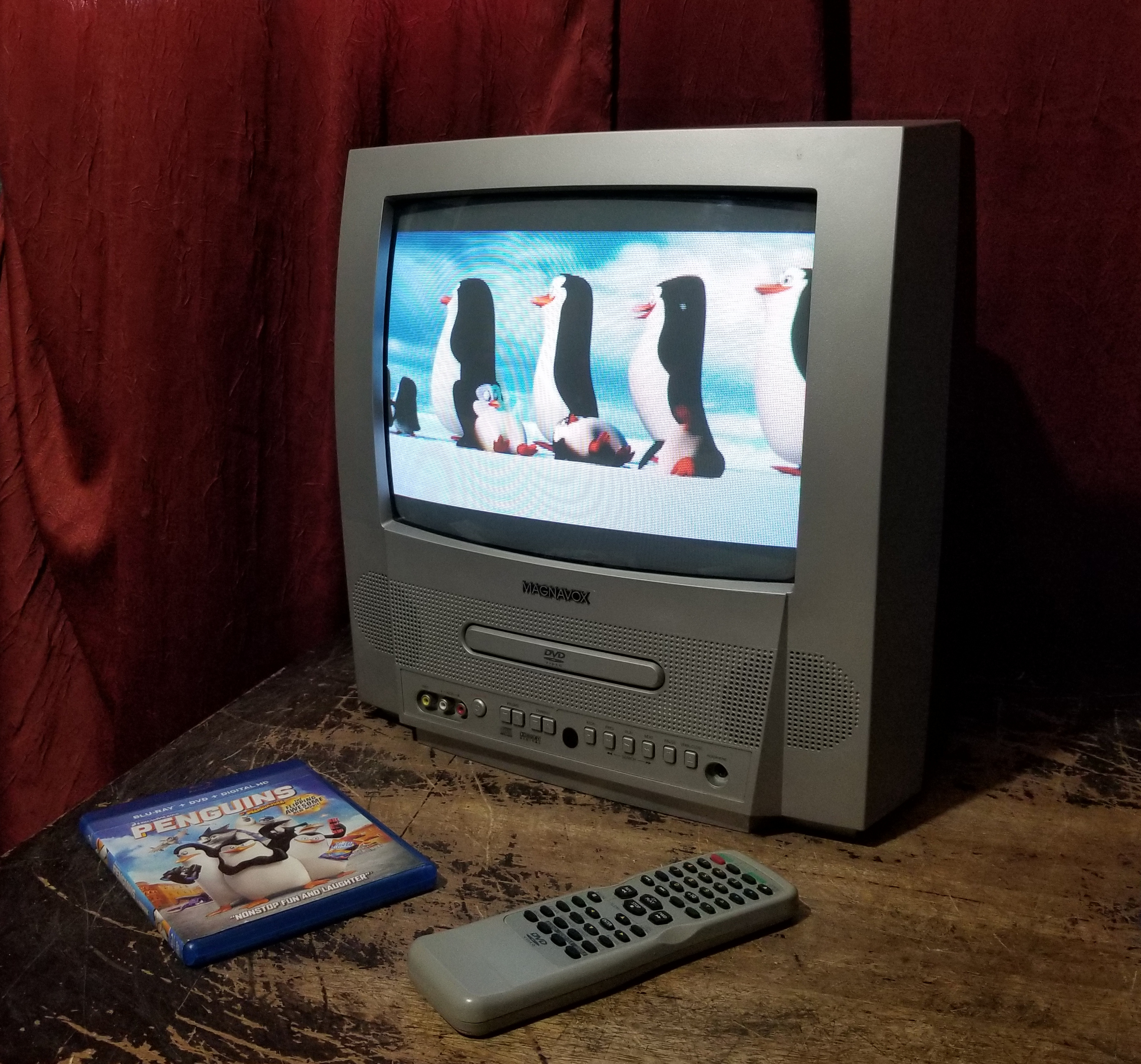

Gallery
| Specifications | |
|---|---|
| Brand: | Magnavox |
| Manufacturer: | Funai |
| Model: | MSD513F |
| Series: | MSD |
| Viewable Size: | 13" |
| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | TT2138LS-YB11 |
| Vertical Output IC: | AN15524 |
| Jungle: | M61271M8-066FP |
| Flyback: | JF0501-3101B |
| Focus Type: | Single |
| Tube: | A34AGT13X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Light |
| Removable Glare Film: | No |
| Yoke: | LLBY00ZSY002 |
| Yoke Horz. Inductance: | 2.686 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 29.75 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 4.951 ohm |
| Yoke Vert. Resistance: | 16.91 ohm |
| Speakers: | Stereo, 1W x 2 |

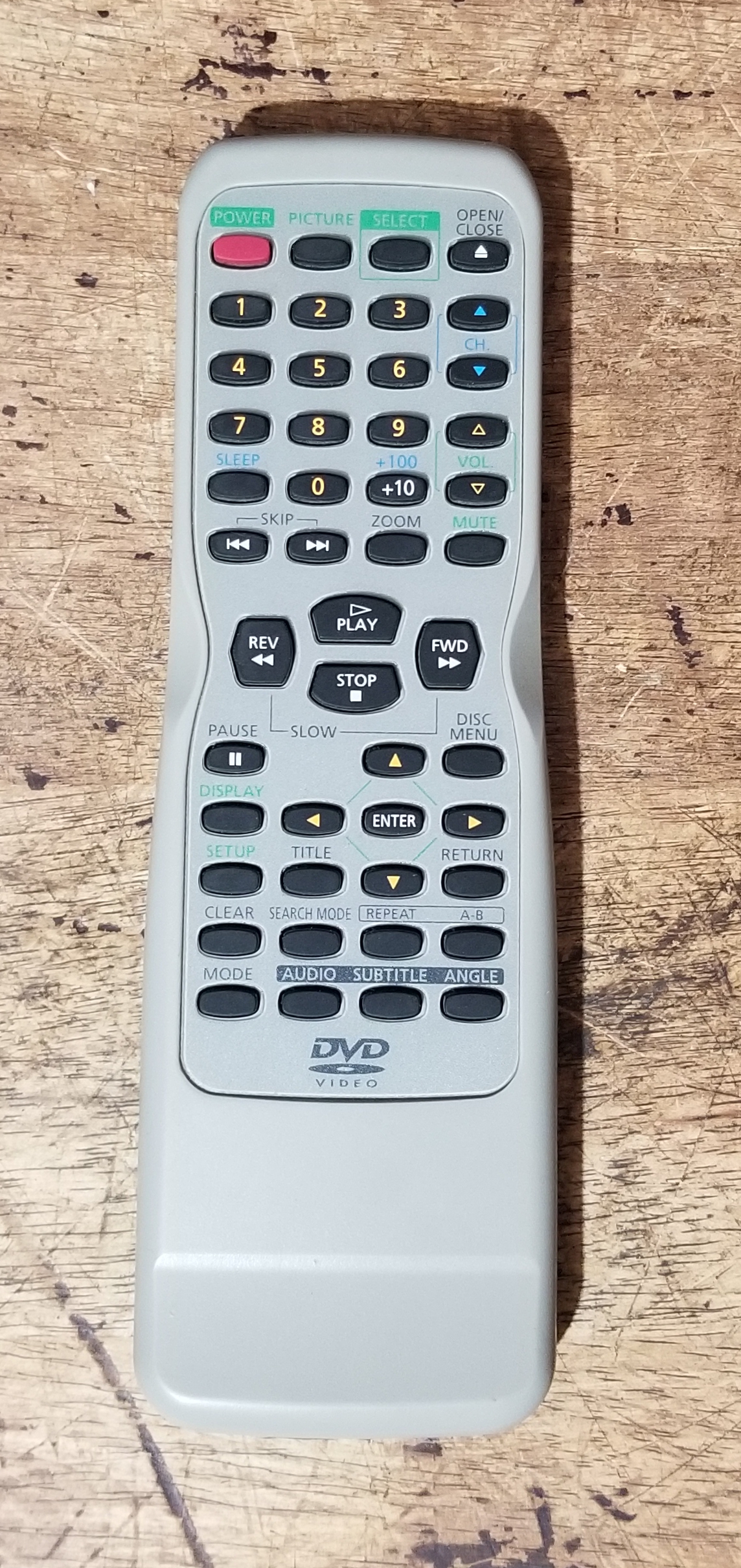

| Remote: | NE219ED |
| Chassis: | T8100UA |
| Weight: | 21.6 lbs (9.8 kg) |
| Dimensions (W/H/D): |
402 x 386 x 376 mm
(15.8 x 15.2 x 14.8") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2005 |
| MSRP: | 129 USD |
| Country of Manufacture: | Malaysia |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Mods: | S-Video |
| Degaussing: | Automatic on Power-on |
