| Specifications | |
|---|---|
| Brand: | Magnavox |
| Manufacturer: | North American Philips |
| Model: | RK4910 AK04 |
| Series: | RK |
| Viewable Size: | 25" |
| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |

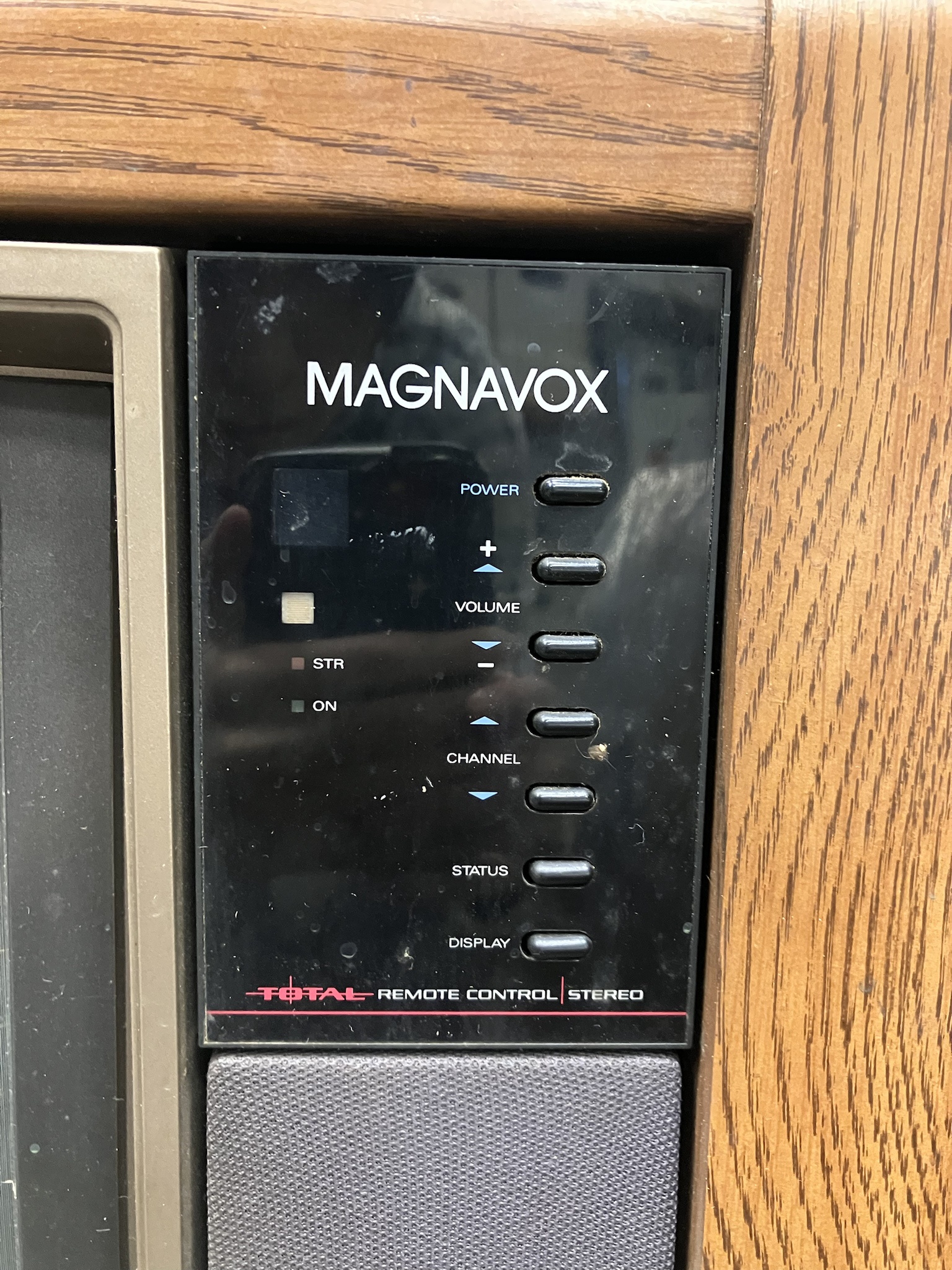

| Adjustments: | Internal Potentiometers, OSD Customer Controls, OSD Service Menu, Front Mounted Buttons |
| Horz. Output Transistor: | 2SD1555 |
| Vertical Output IC: | LA7831 |
| Jungle IC: | TDA3569 |
| Comb Filtering: | 4835 152 87001 |
| Flyback: | 4835 140 67003 |
| Focus Type: | Single |
| Tube: | A63AEH20X |
| Heater Voltage: | 6.3v |
| Deflection: | 110° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | 0036 204 17012 |
| Yoke Horz. Inductance: | 1.46 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 14.7 mH (@ 100 Hz) |
| Speakers: | Stereo |

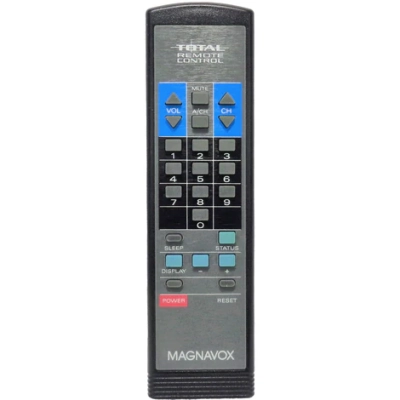

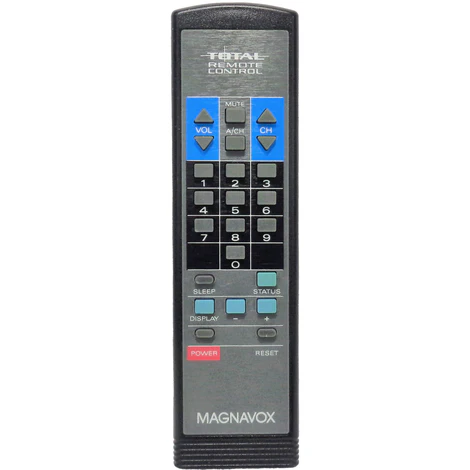

| Remote: | 00T230AG-MA01 |

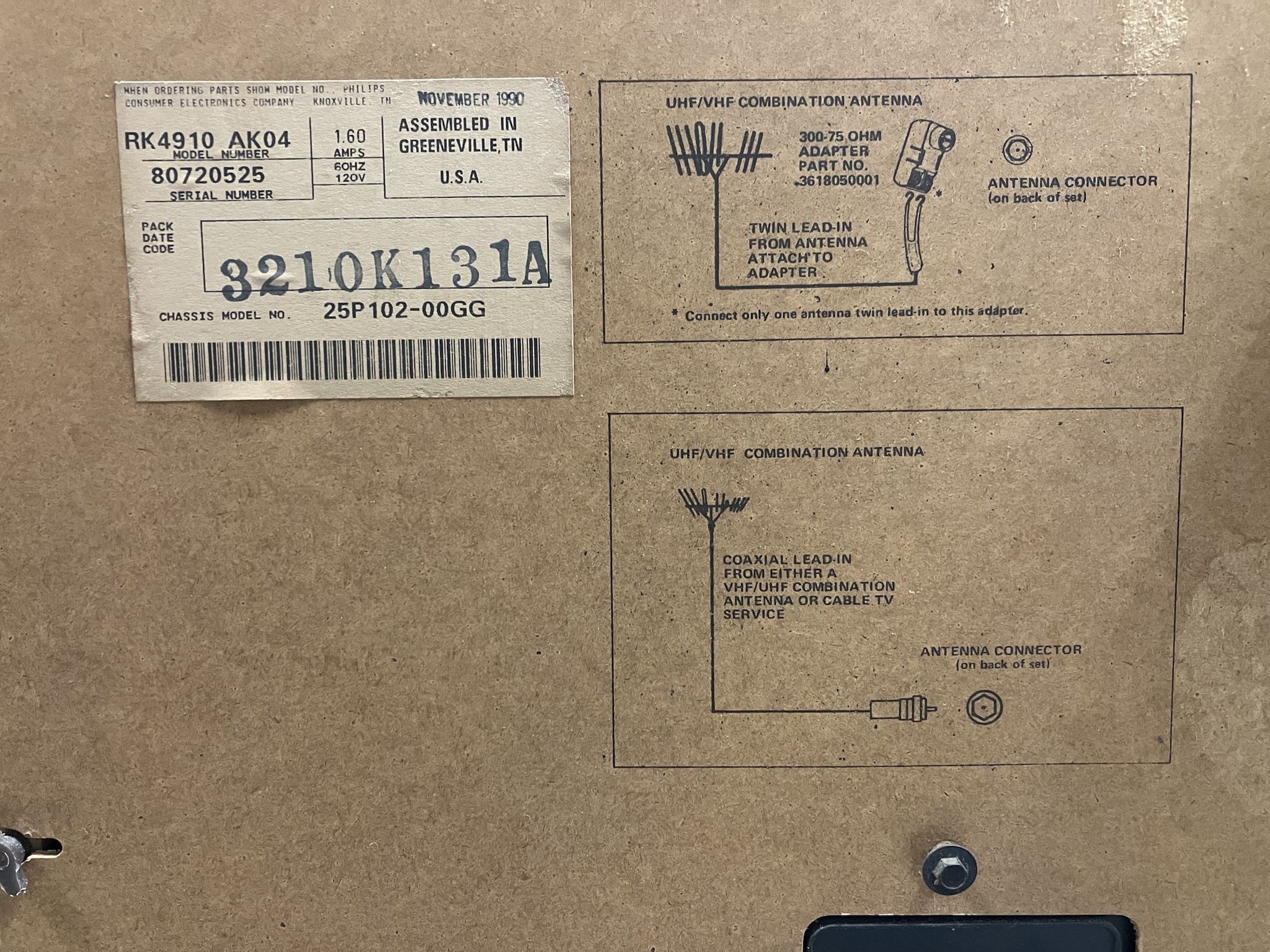

| Chassis: | 25P102-00GG |
| Dimensions (W/H/D): | 870 mm |
| Application: | Consumer |

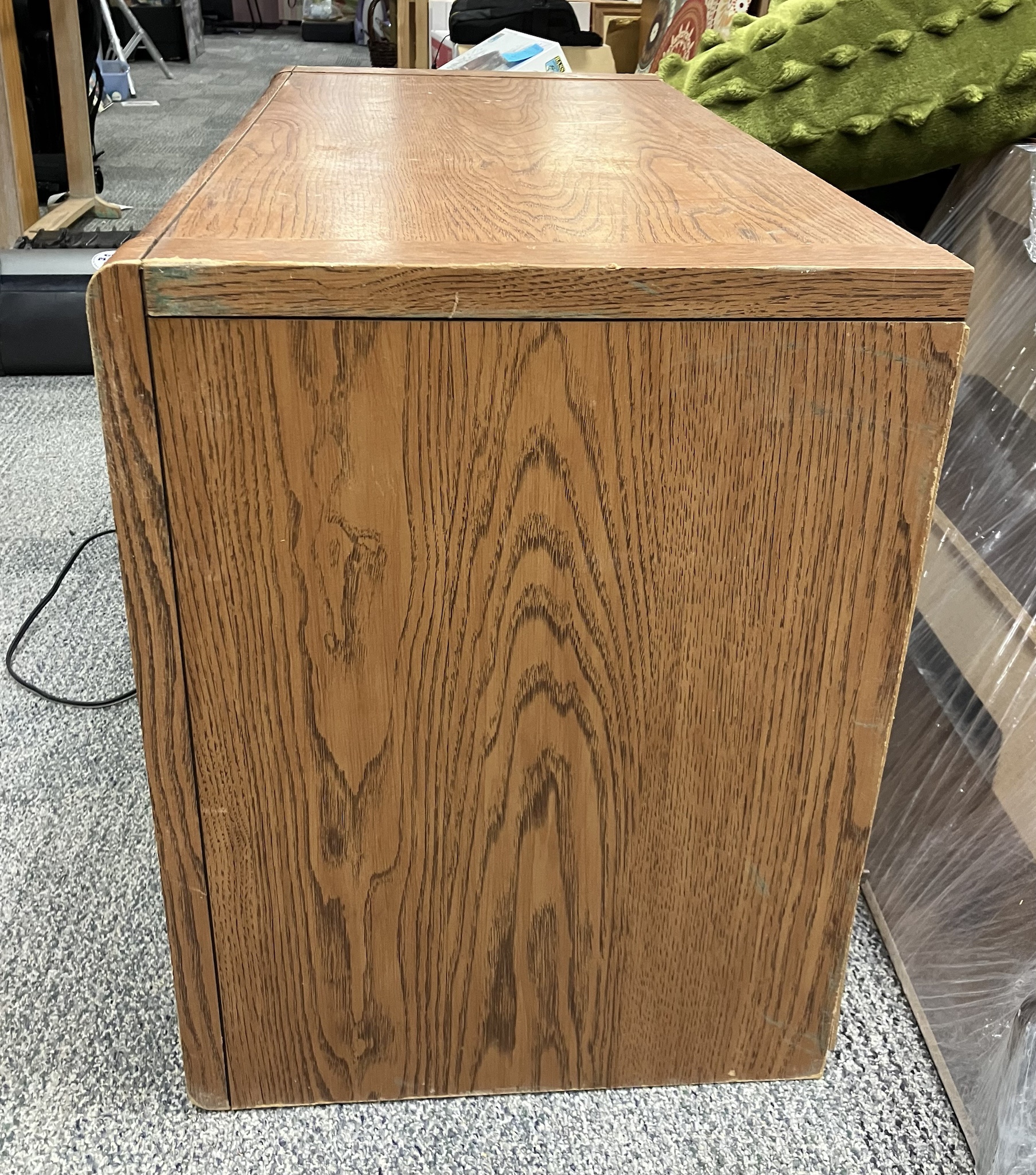

| Cabinet Material: | Plastic, Simulated Woodgrain, Wood |
| Launched: | 1989 |
| MSRP: | 529 USD |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Floor |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual, Needs Measurements, Community Submission |
