Summary

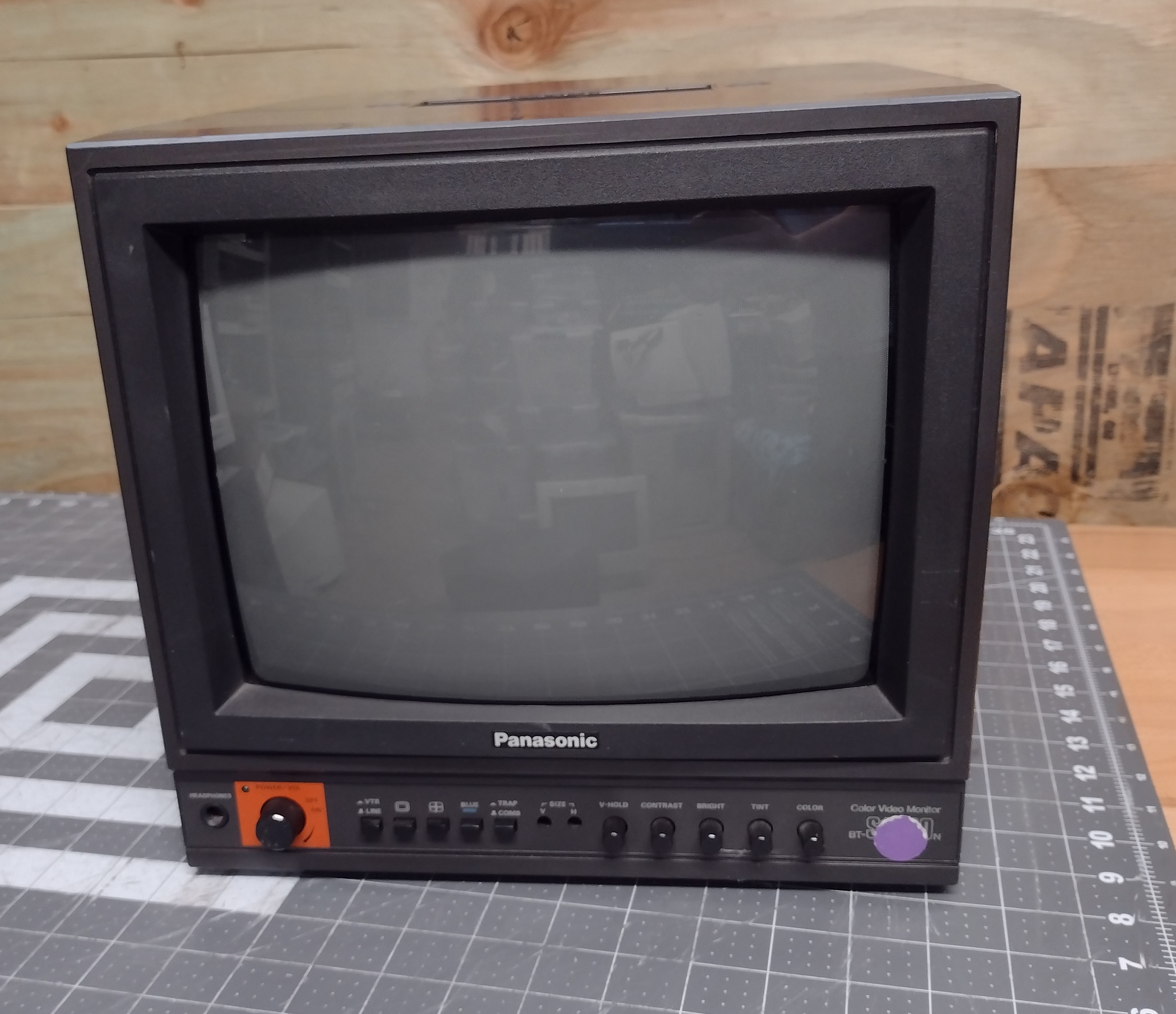

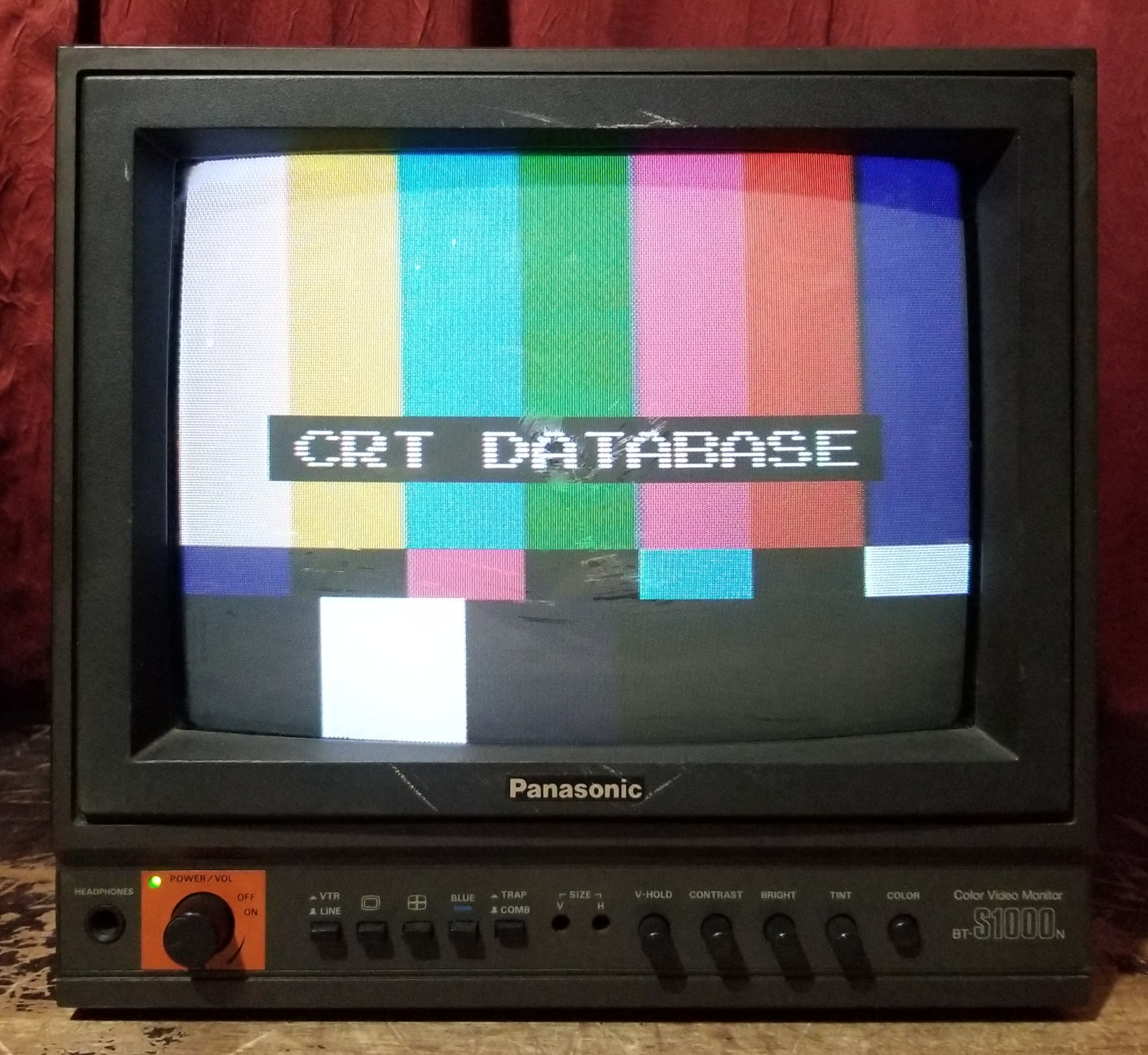

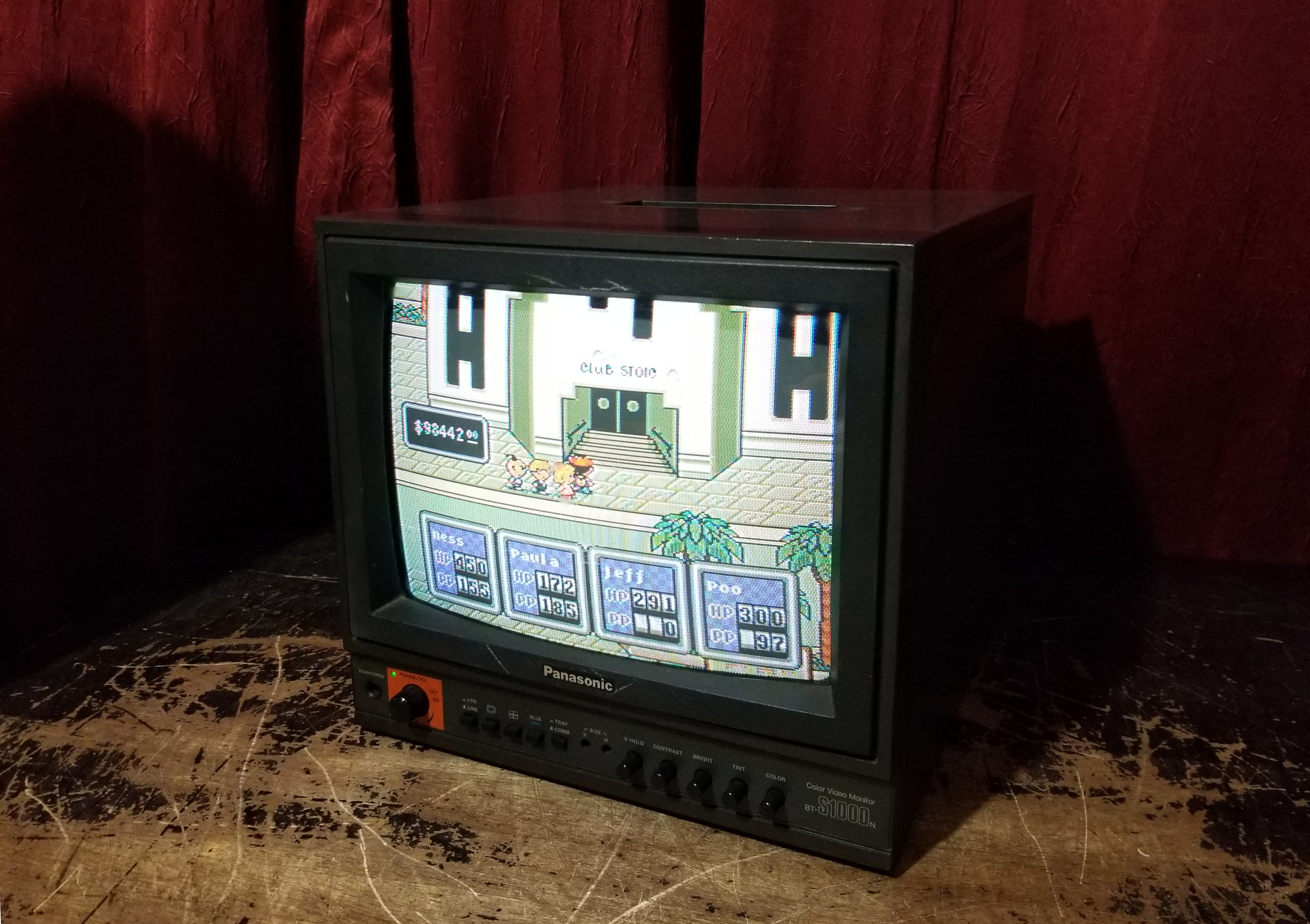

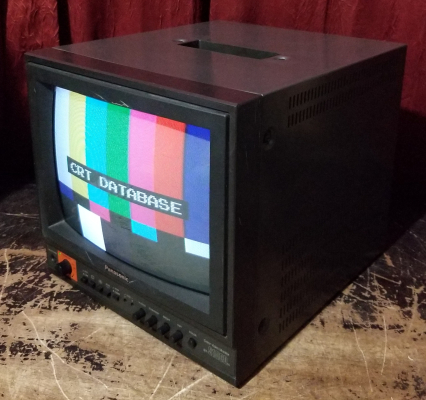

Portable 10" video monitor with a recessed handle in the top. Tube is very low resolution and it only accepts composite video, but it has a number of features specific to broadcast monitors such as blue only mode, underscan, and pulse cross. Can be used with AC mains power or 12V DC.

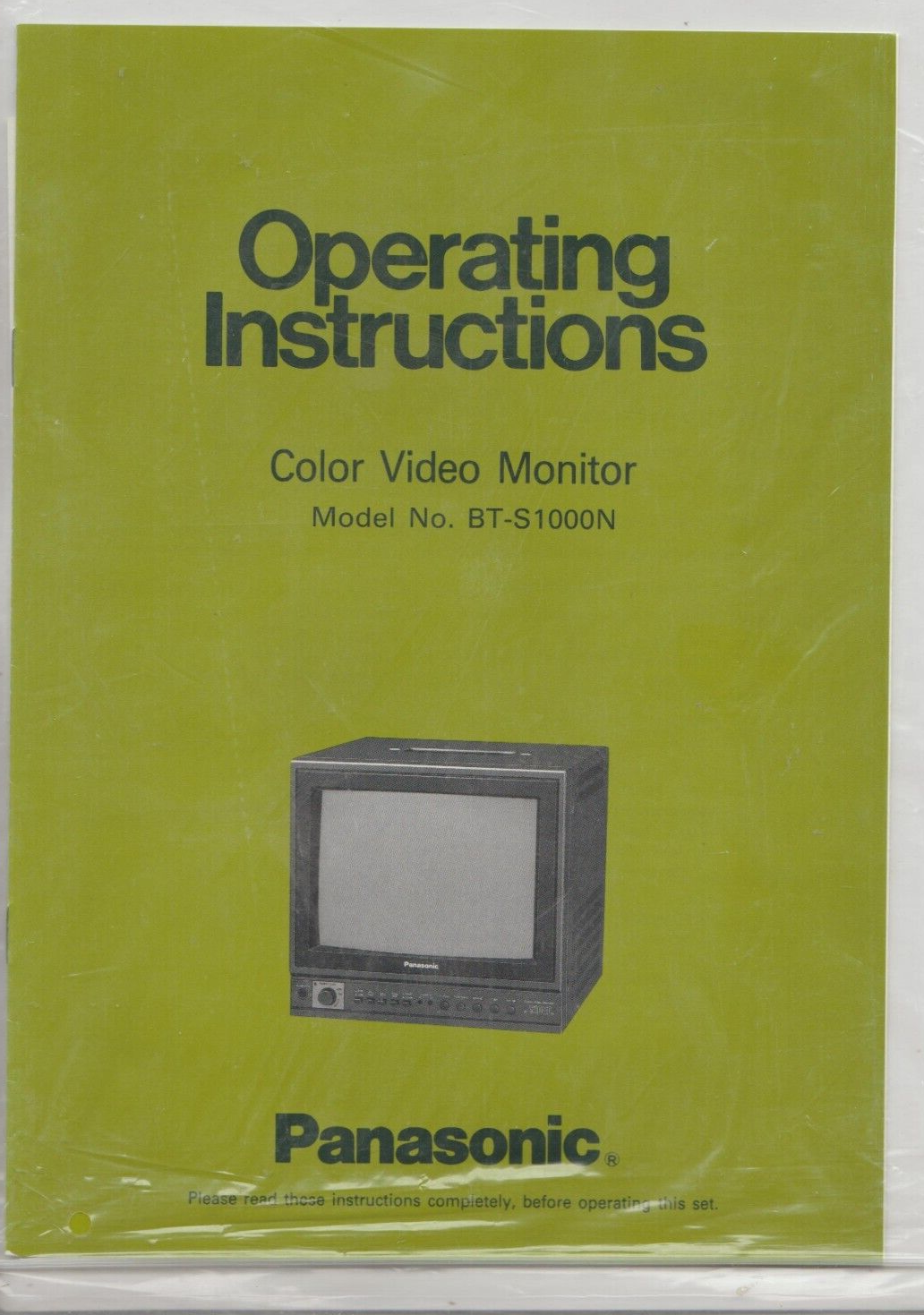

Manuals
Notes
This monitor uses the same tube as the Panasonic AG-500R and AG-550 VCR combo units.
A simplified version of this monitor, the CT-1030M, was also produced. It does not have the 12v power input, and is missing the underscan, pulse cross, and blue only functions.

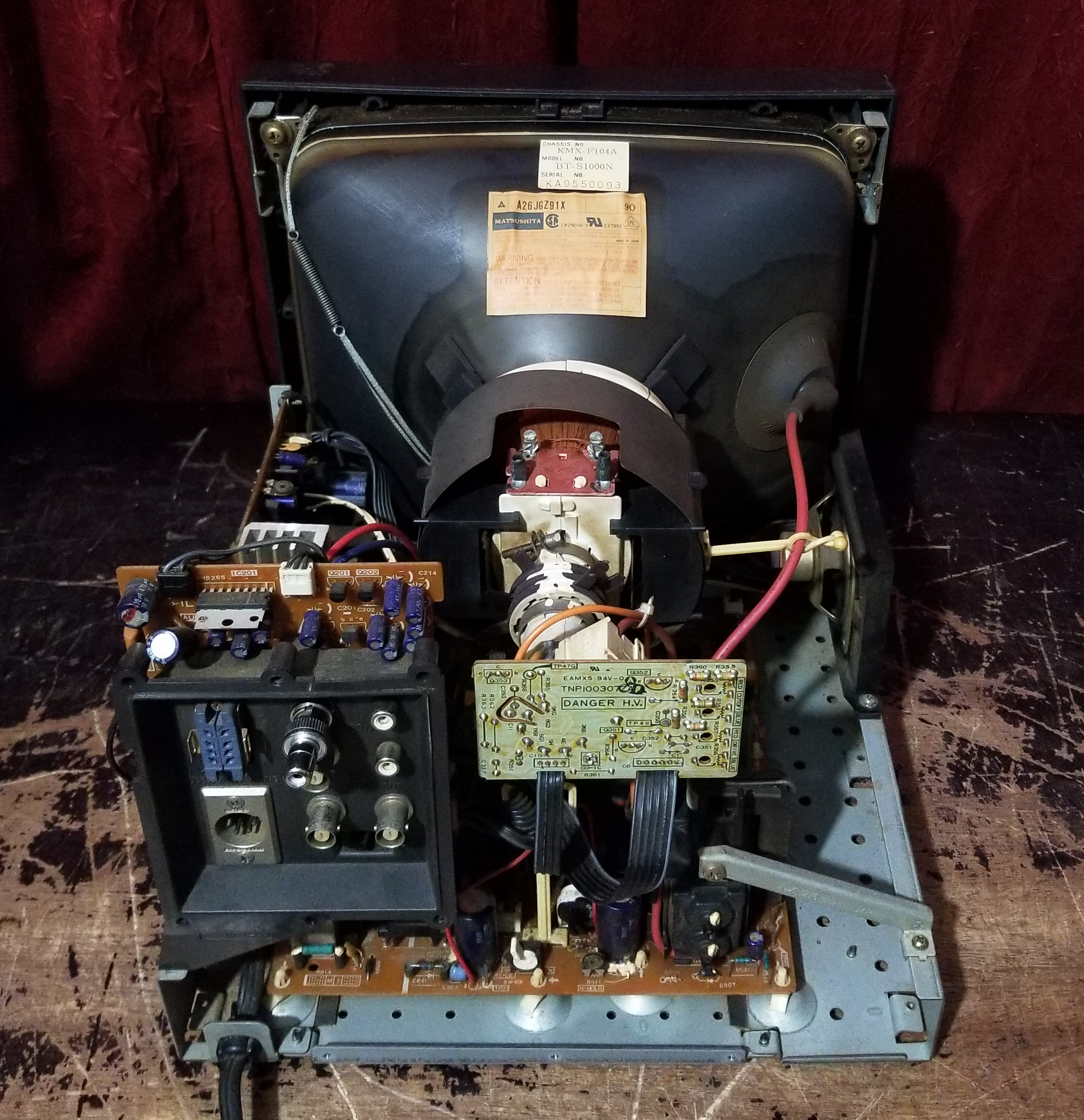

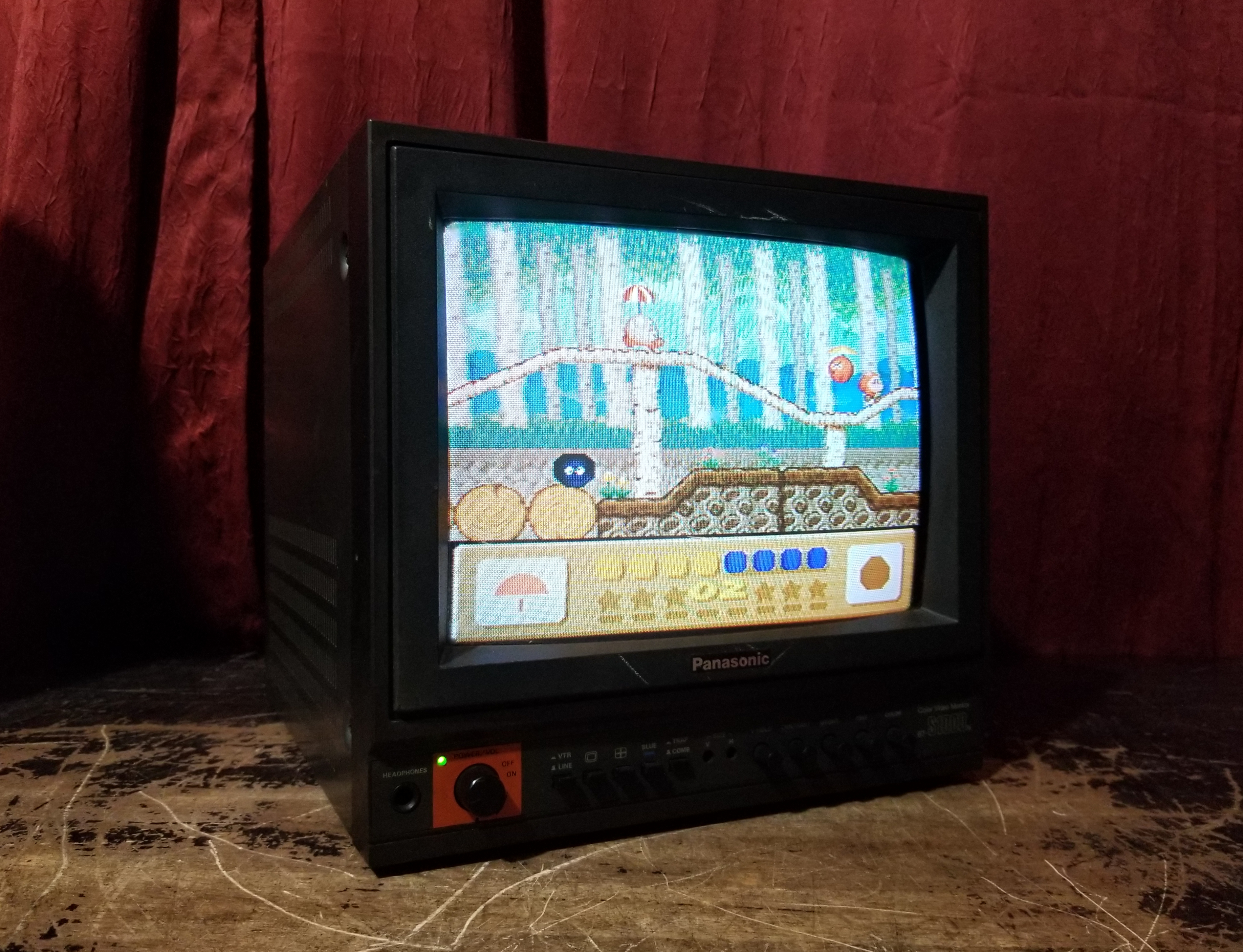

Gallery

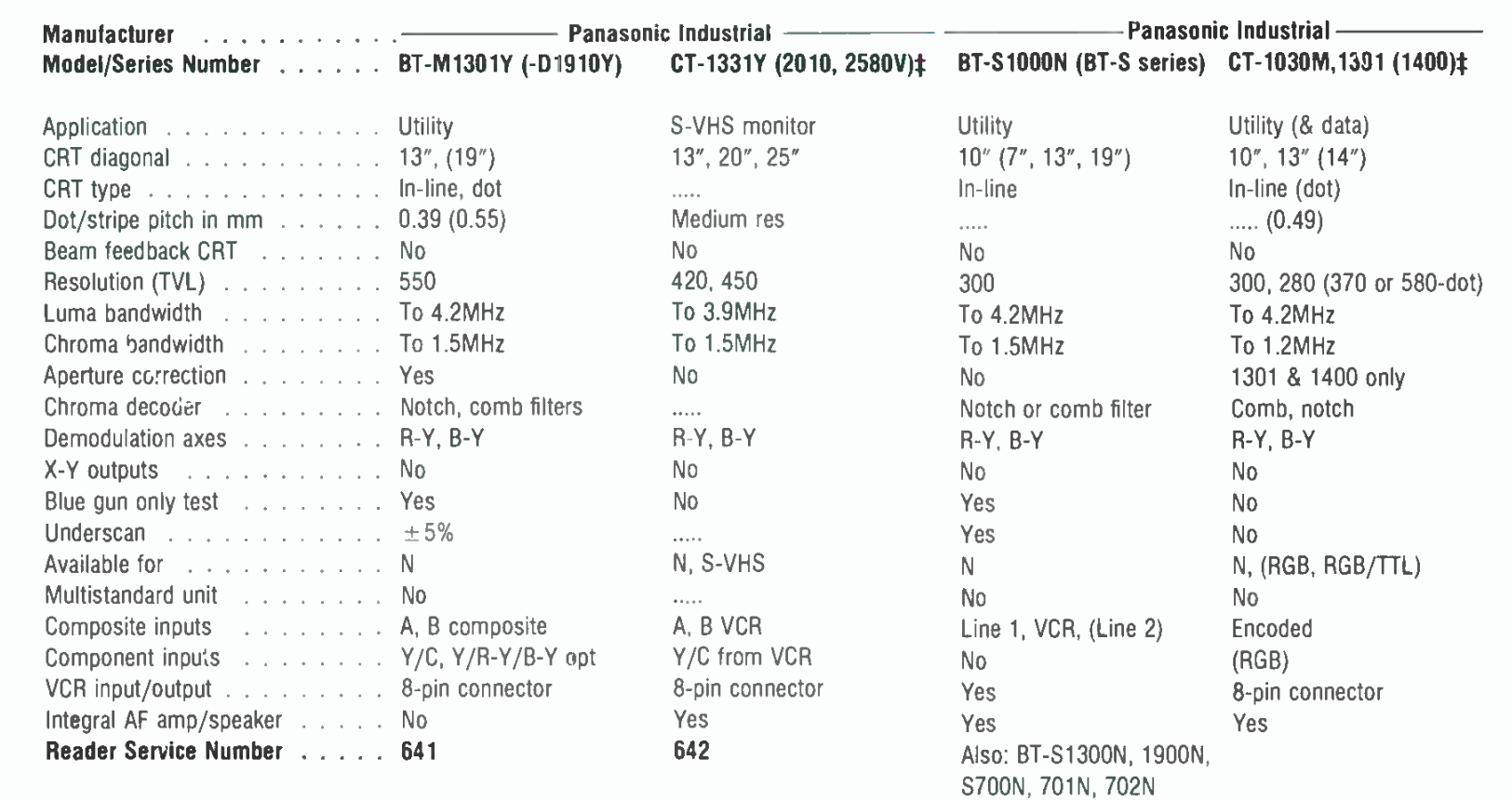

| Specifications | |
|---|---|
| Brand: | Panasonic |
| Manufacturer: | Panasonic |
| Model: | BT-S1000N |
| Series: | BT |
| Viewable Size: | 10" |
| Inputs: | Composite, VTR |
| Sync: | CSYNC |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers |
| Vertical Output IC: | AN5515 |
| Jungle: | AN5316N |
| Comb Filtering: | Glass |
| Flyback: | TLF14744F |
| Tube: | Panasonic , A26JGZ91X , A26JGZ31X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | TLY25360F |
| Speakers: | Mono |
| Chassis: | KMX-F104A |
| Weight: | 19 lbs (8.6 kg) |
| Dimensions (W/H/D): |
284 x 275 x 322 mm
(11.2 x 10.8 x 12.7") |
| Application: | Professional |
| Cabinet Material: | Metal |
| Launched: | 1987 |
| Country of Manufacture: | Japan |
| Mounting: | Rackable |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Pictures |
