Panasonic CT-1030M
Andy King
September 4, 2024, 2:32 am
October 2, 2024, 5:57 pm
September 4, 2024, 2:32 am
October 2, 2024, 5:57 pm
Summary

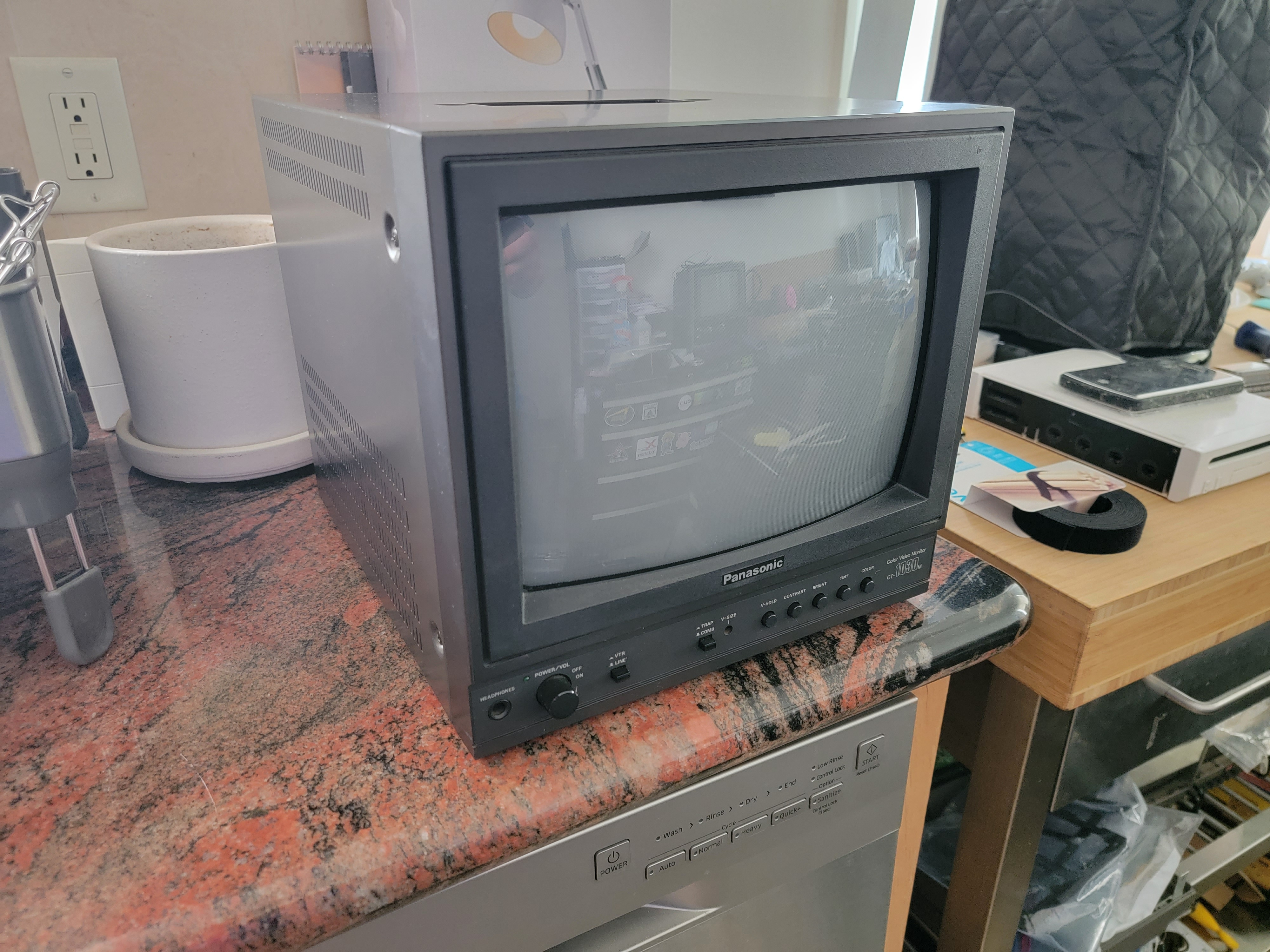

Portable 10" video monitor with a recessed handle in the top. Tube is very low resolution and it only accepts composite video, Same as the BT-S1000N but lacking the features specific to broadcast monitors such as blue only mode, underscan, and pulse cross. Also lacking the DC power input.
Literature
- Owner's Manual
- Service Manual (closest available)
Notes
This monitor uses the same tube as the Panasonic AG-500R and AG-550 VCR combo units.
Should be S-Video moddable, since the AN5316N jungle supports Y/C input and later BT variations of this chassis came with S-Video from the factory.
Gallery




Specifications | |
---|---|
Brand: | Panasonic |
Manufacturer: | Panasonic |
Model: | CT-1030M |
Series: | CT |
Viewable Size: | 10" |

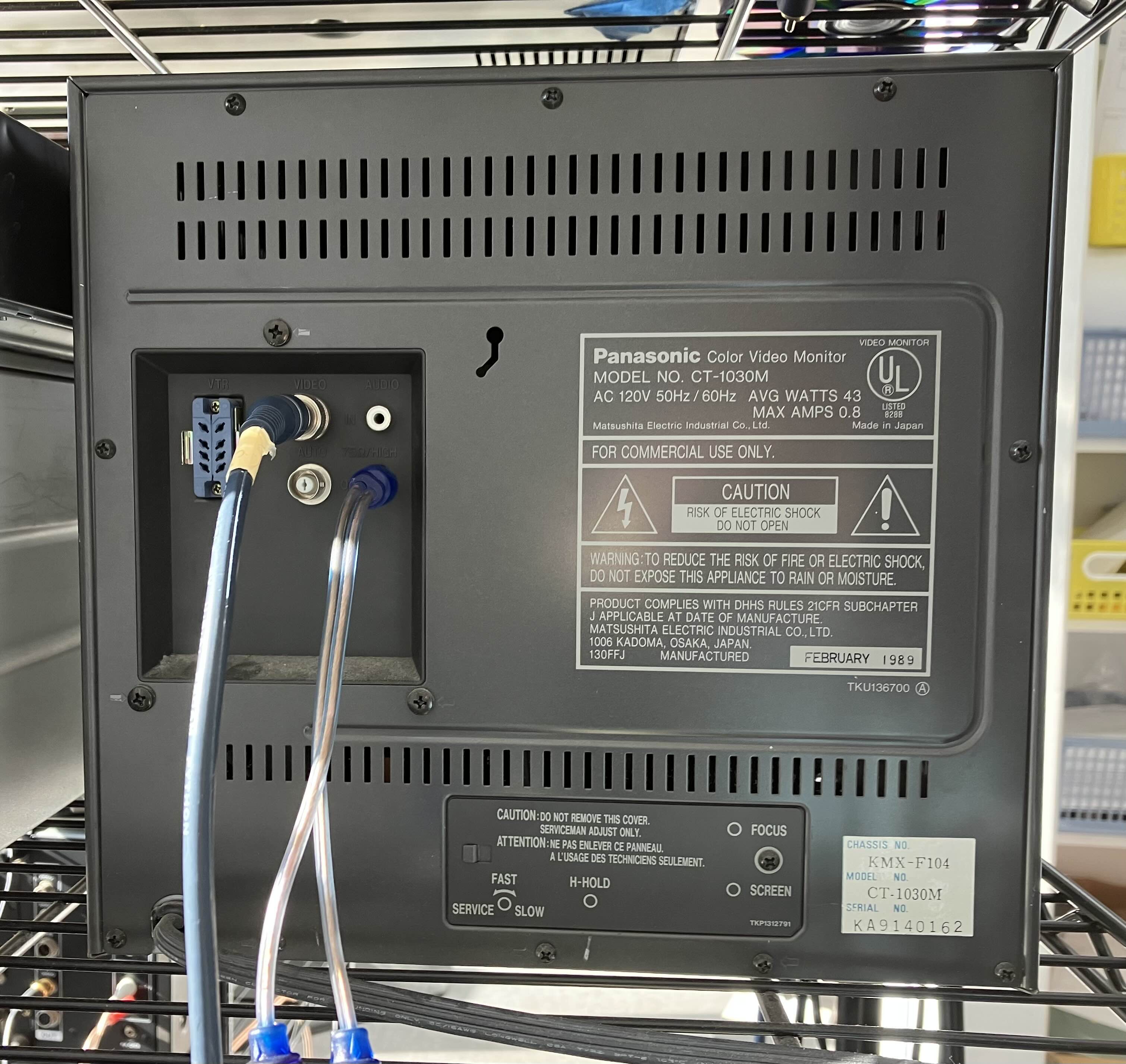

Inputs: | Composite, VTR |

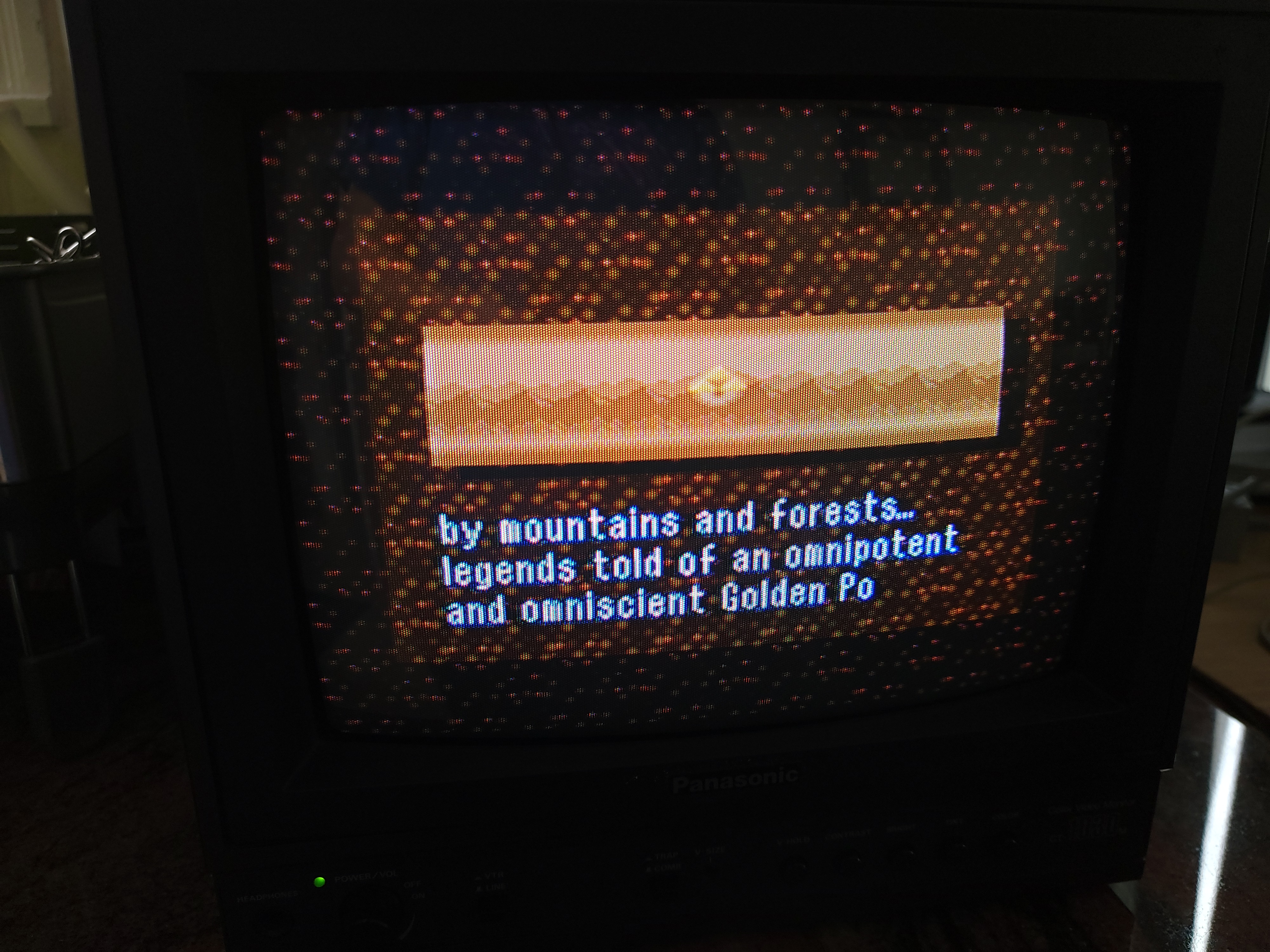

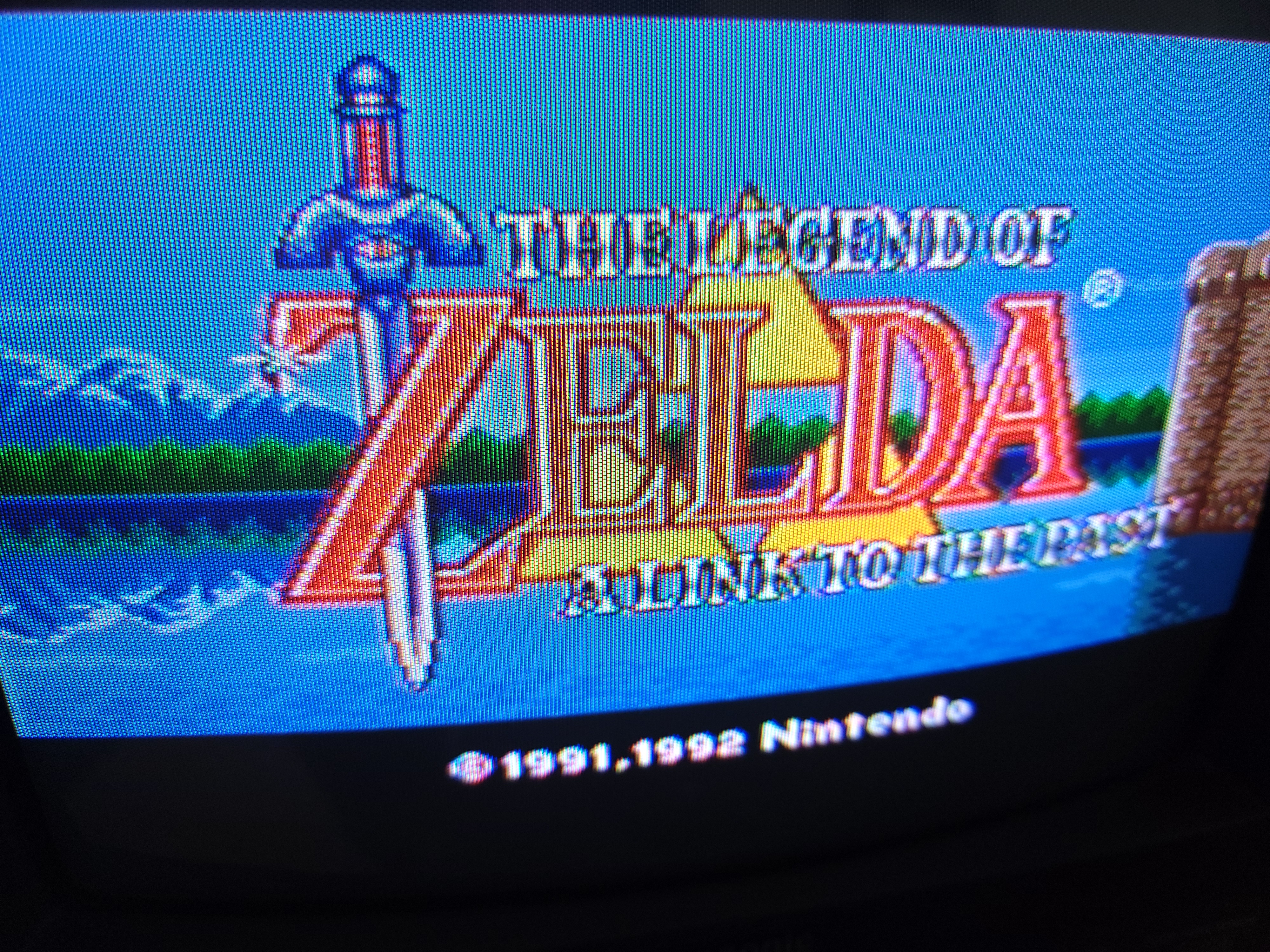

Native Resolutions: | 240p, 480i |
Formats: | NTSC |
Aspect: | 4:3 |

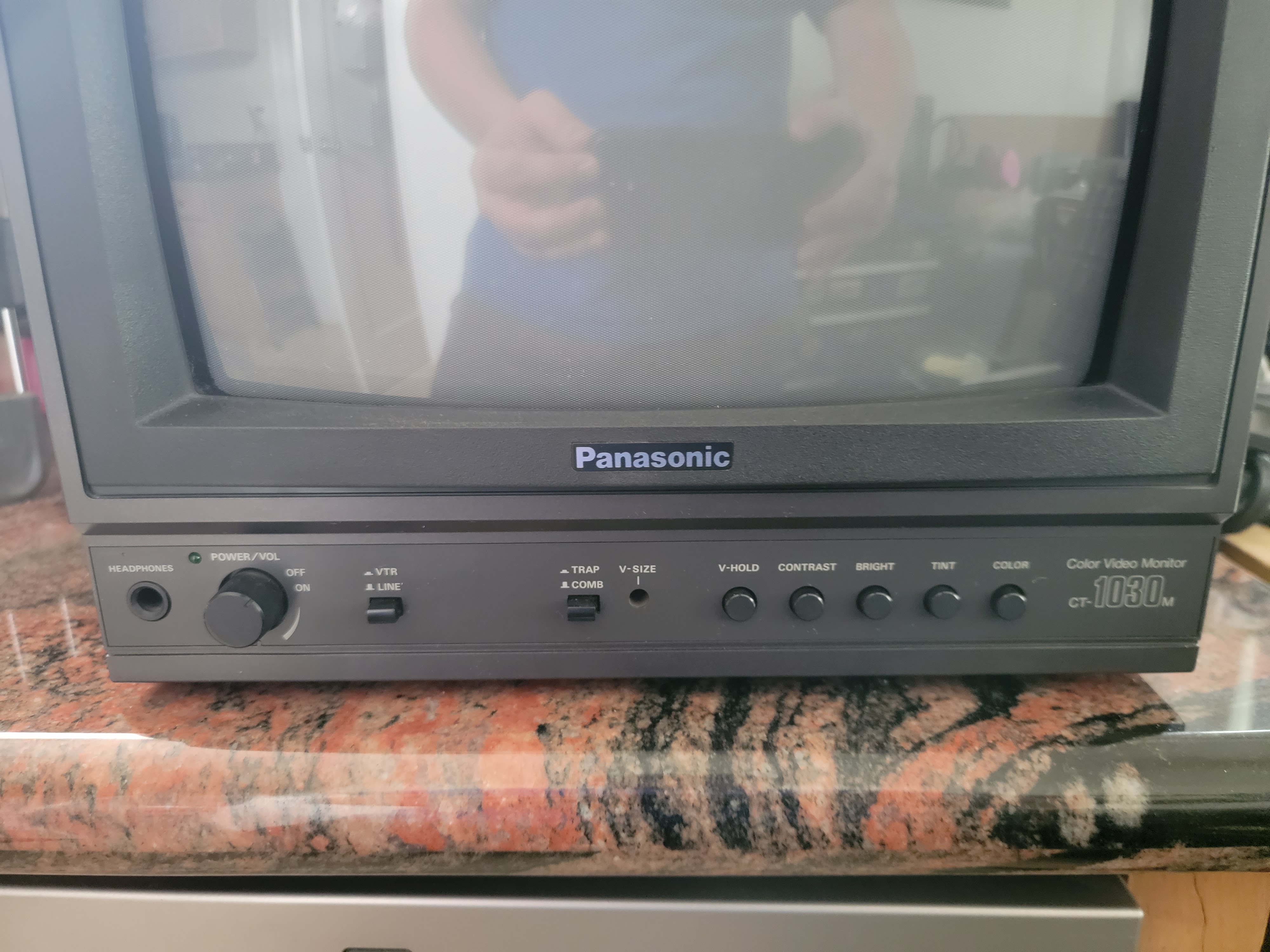

Adjustments: | Internal Potentiometers, External Potentiometers |
Horz. Output Transistor: | 2SD1439 |
Vertical Output IC: | AN5515 |
Jungle: | AN5316N |
Flyback: | TLF14744F |
Tube: | Panasonic , A26JGZ91X , A26JGZ31X |
Deflection: | 90° |
Mask: |
Slot
![]() |
Tint: | Dark |
Yoke: | TLY25360F |
Speakers: | Mono |

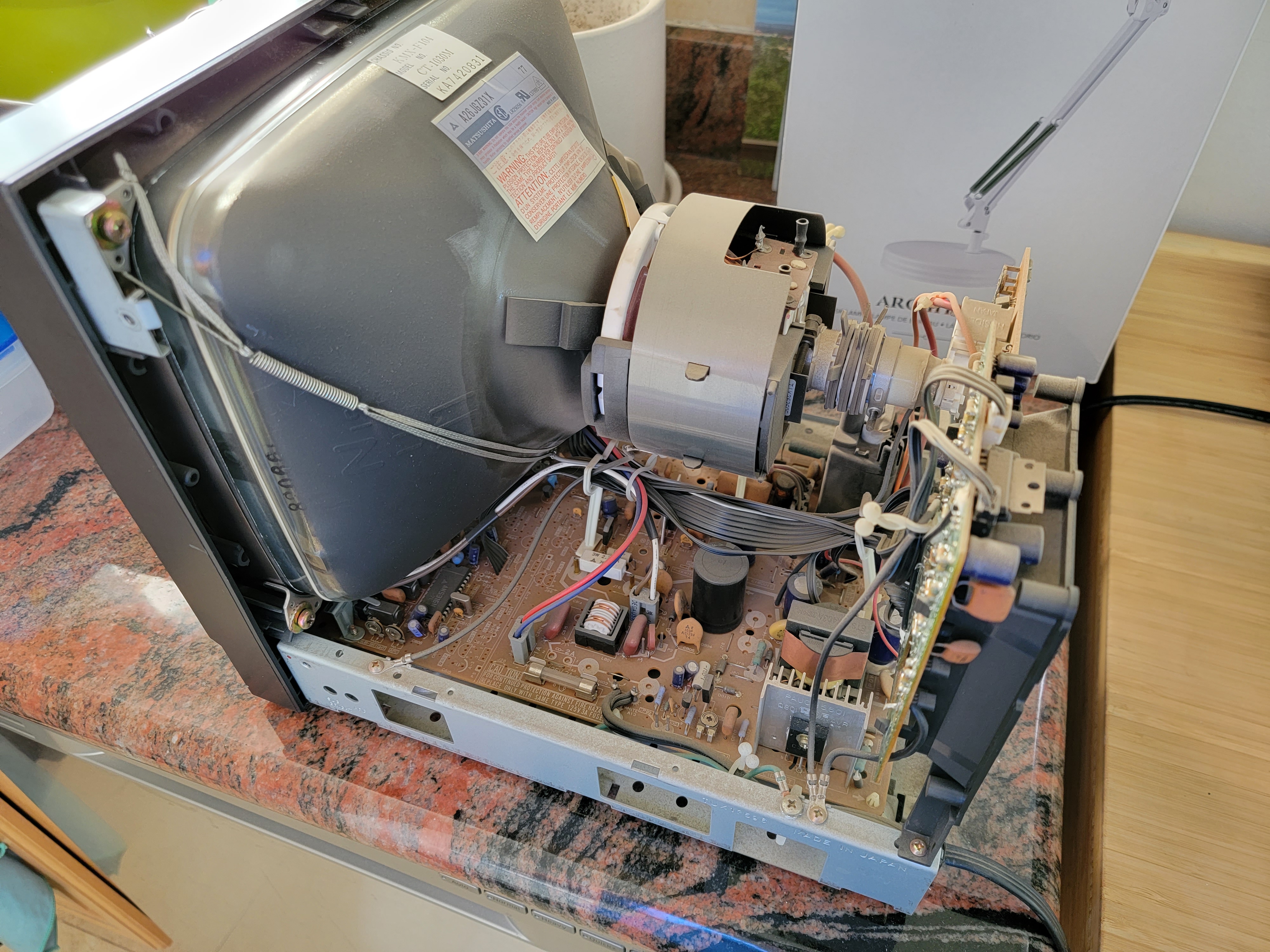

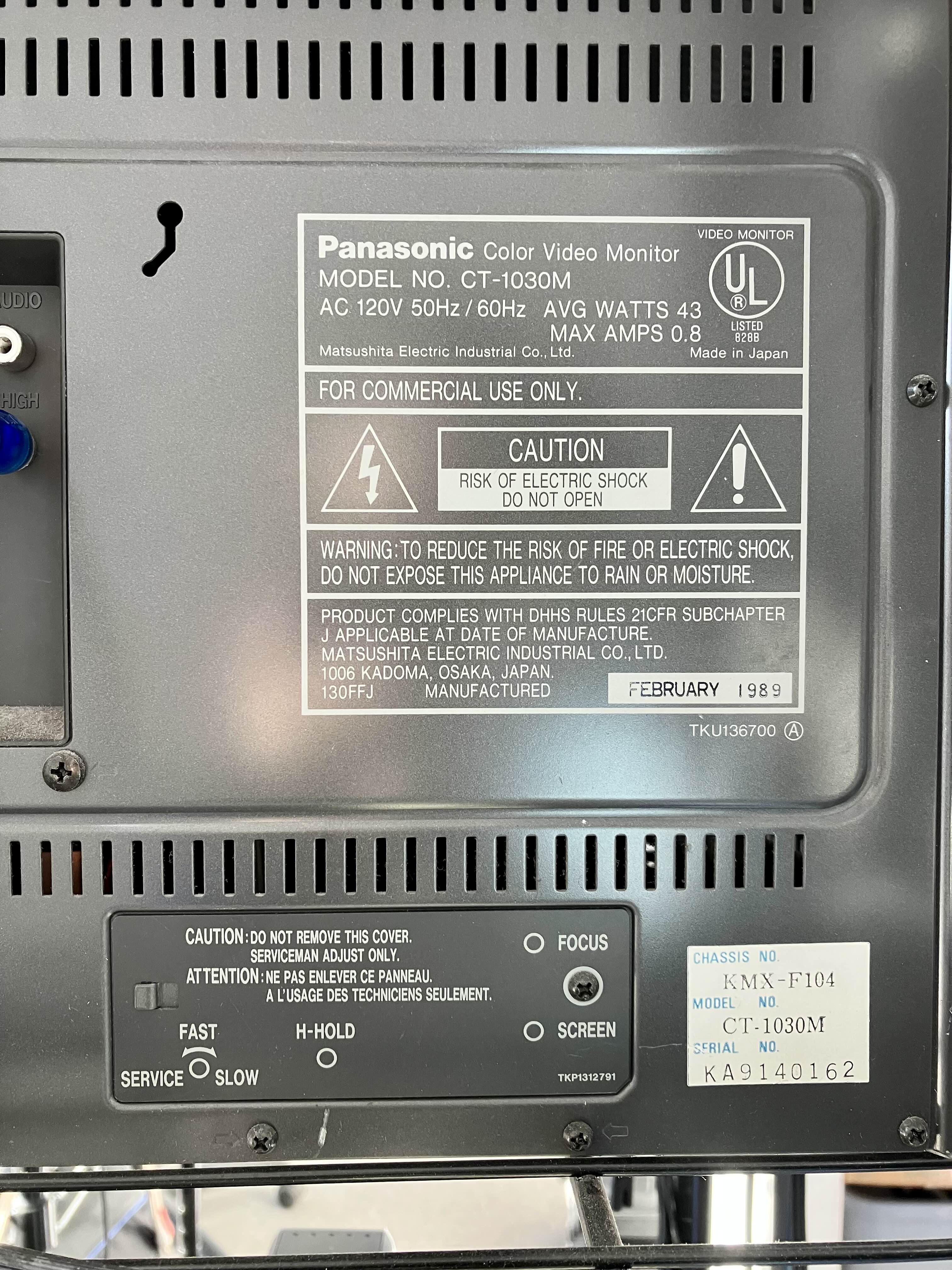

Chassis: | KMX-F104 |
Weight: | 19 lbs (8.6 kg) |
Application: | Professional |
Launched: | 1987 |
Country of Manufacture: | Japan |
Mounting: | Rackable |
Mods: | S-Video |
Degaussing: | Automatic on Power-on |
