Summary

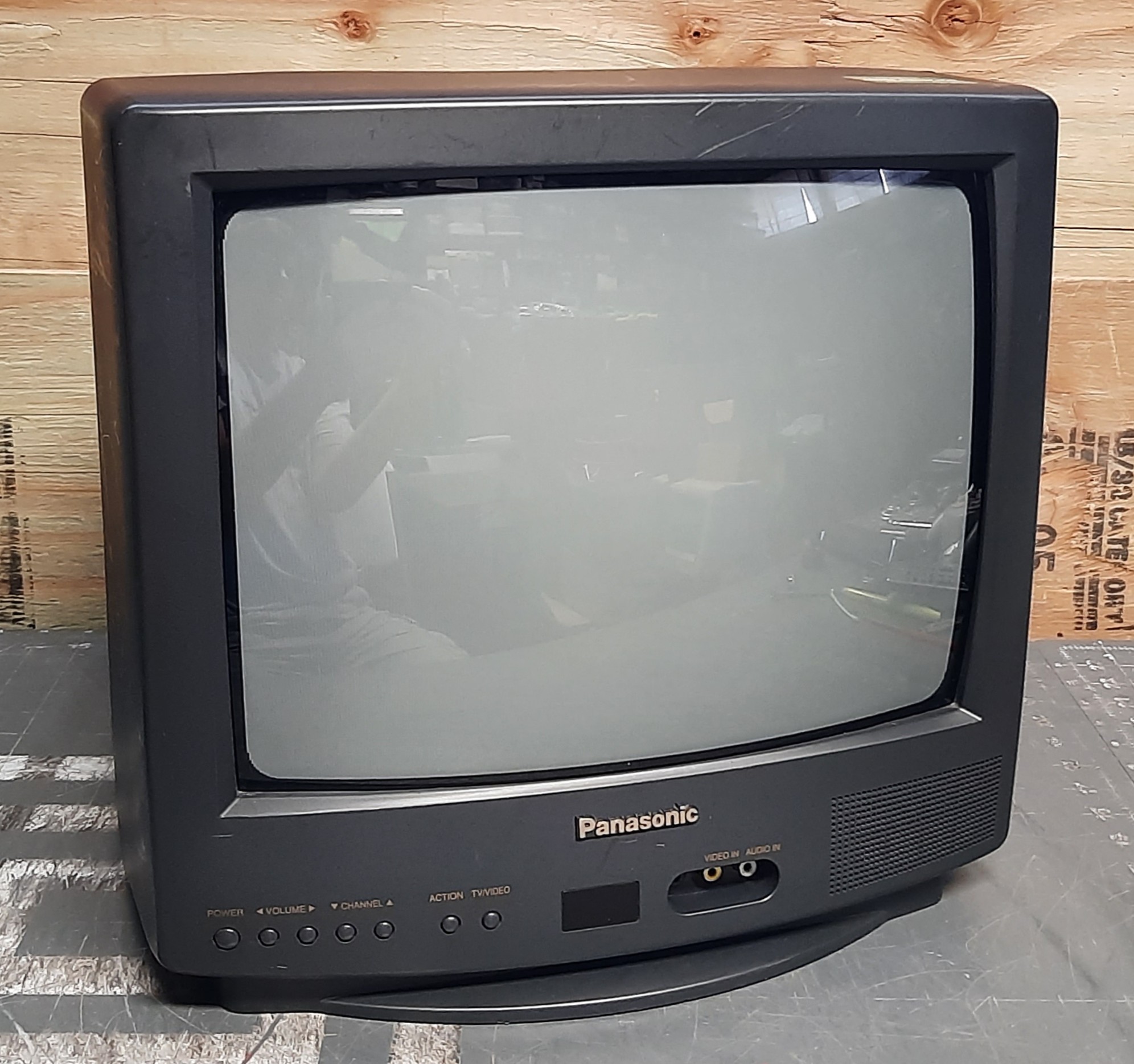

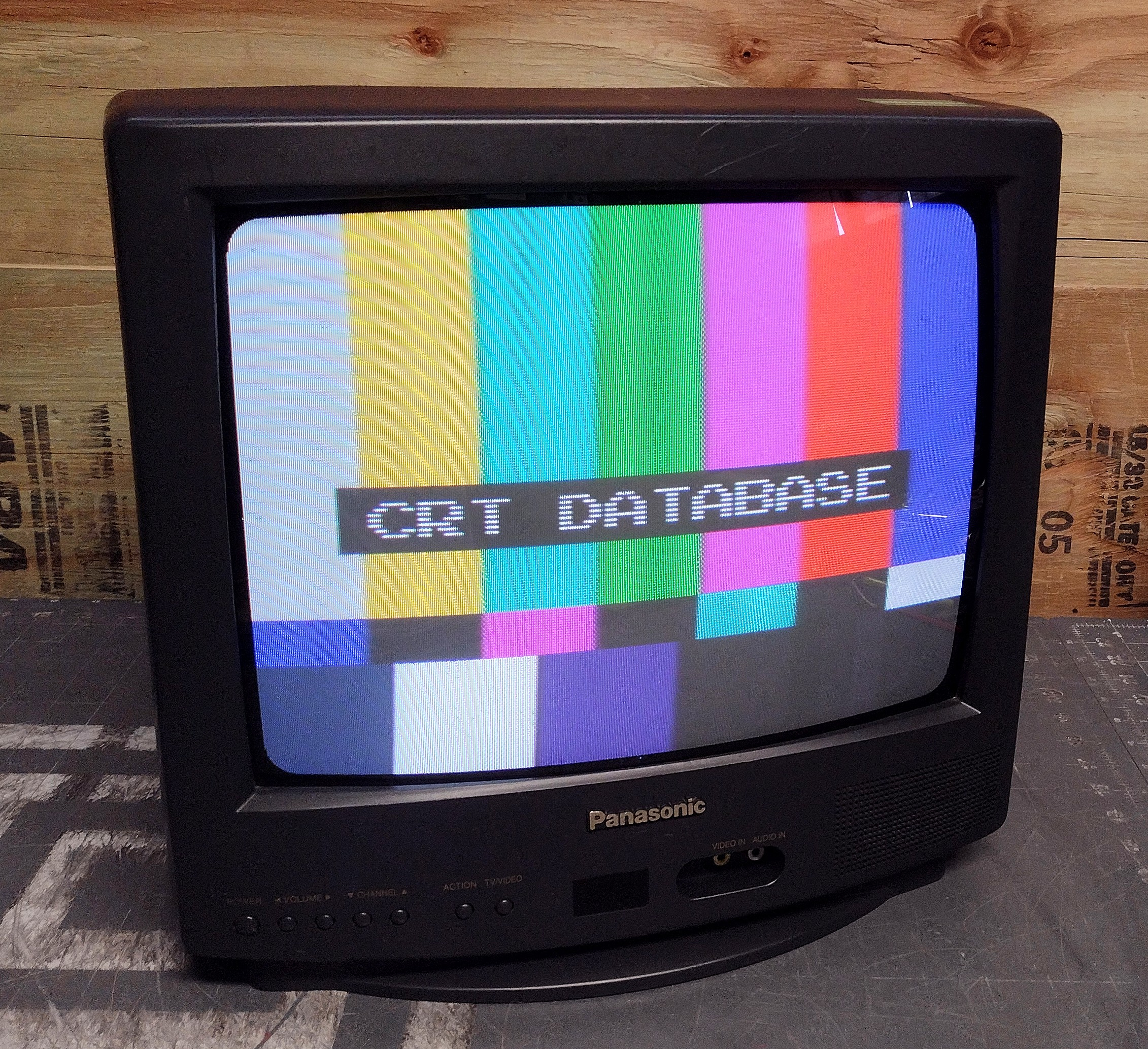

13" consumer TV from Panasonic, with front and back mono A/V inputs. Build quality is good for its size and it has a very clean picture over composite.

Manuals

• User Manual

Notes

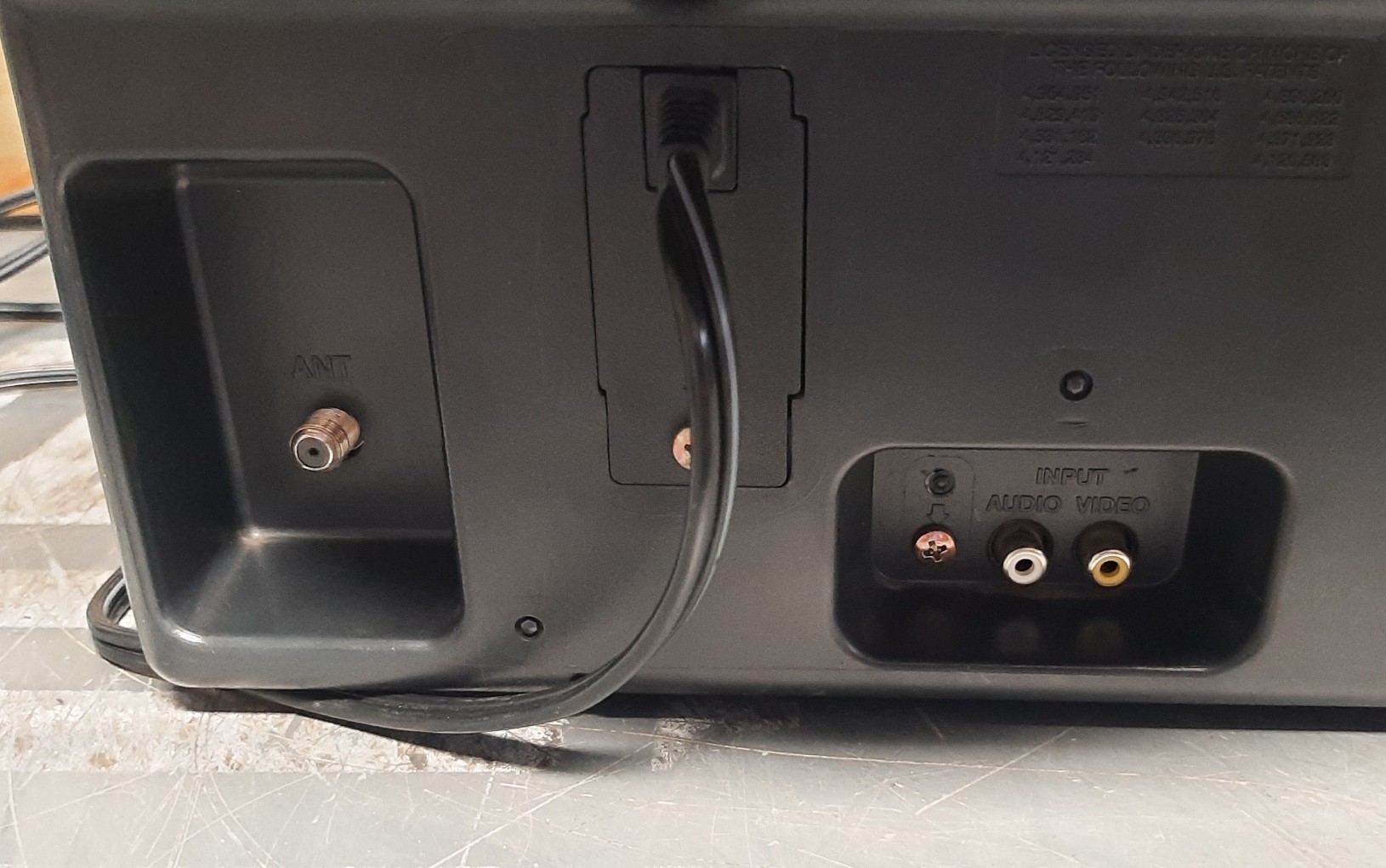

While this TV does have two composite inputs, they are tied together internally and cannot be used at the same time.

This TV uses the same tube and yoke as the CT-S1390Y, and can be used as a direct swap if needed.

As with other Panasonic TVs and monitors from this era, the jungle chip does accept analog RGB. However, the signal has a significant DC offset and cannot be connected directly without amplification and/or level shift. Mod instructions for the CT-S1390Y should also apply to this TV.
