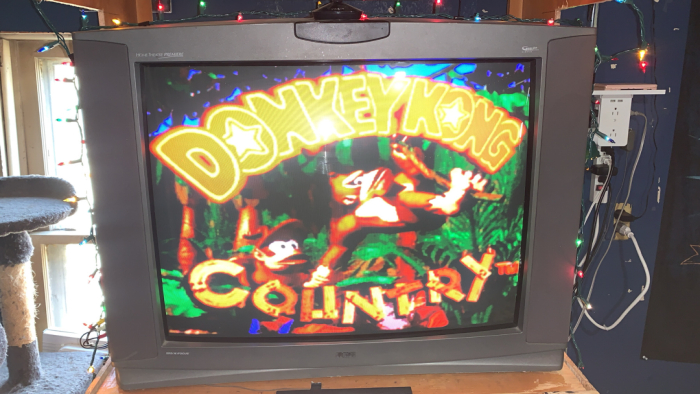

RCA F32715
July 31, 2026, 9:39 pm
July 31, 2026, 9:59 pm
July 31, 2026, 9:59 pm
Summary
32" curved-screen TV by RCA, launched in 2001. Has RF, composite, s-video, and component inputs with stereo sound.
Manuals
Media & Promo Materials
Notes
Features:
- Home Theatre Video System with 765 Lines of Horizontal Resolution.
- 3-Line Digital Comb Filter.
- High Performance Scan Velocity Modulation.
- Dark-Tint, High-Contrast Picture Tube.
- Adaptive Video Noise Reduction.
- GUIDE Plus+ GOLD On-Screen Program Guide.
- Advanced Twin Tuner Picture-In-Picture.
- Master Touch Universal Glow-In-The-Dark Remote.
- SRS Focus Audio Technology and Sound Logic Audio Leveler.
- Matrix Surround Sound with External Speaker Terminals.

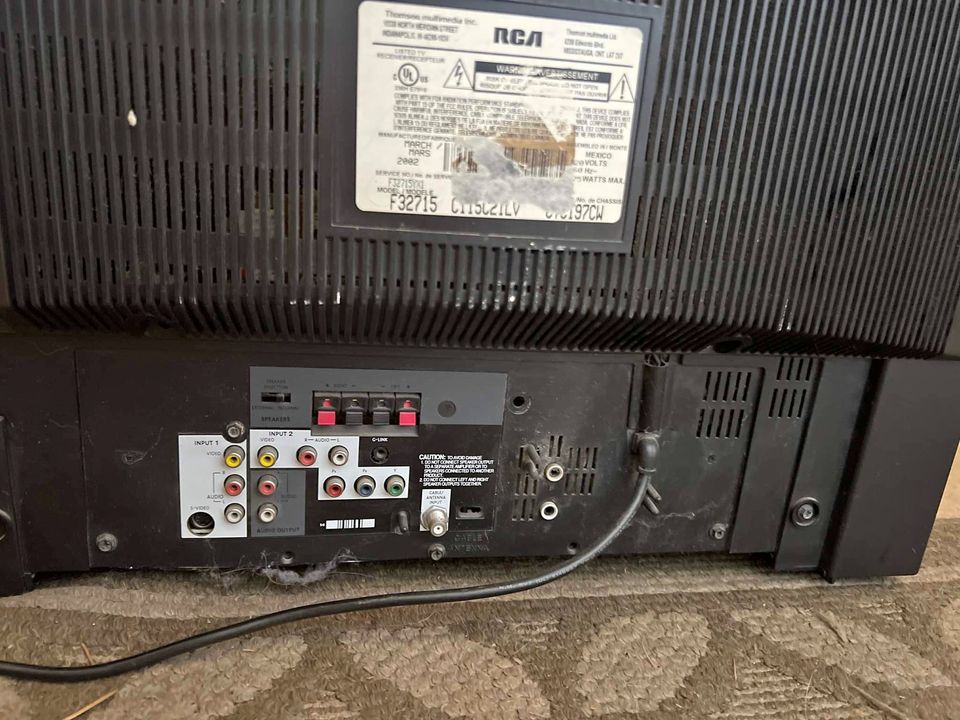

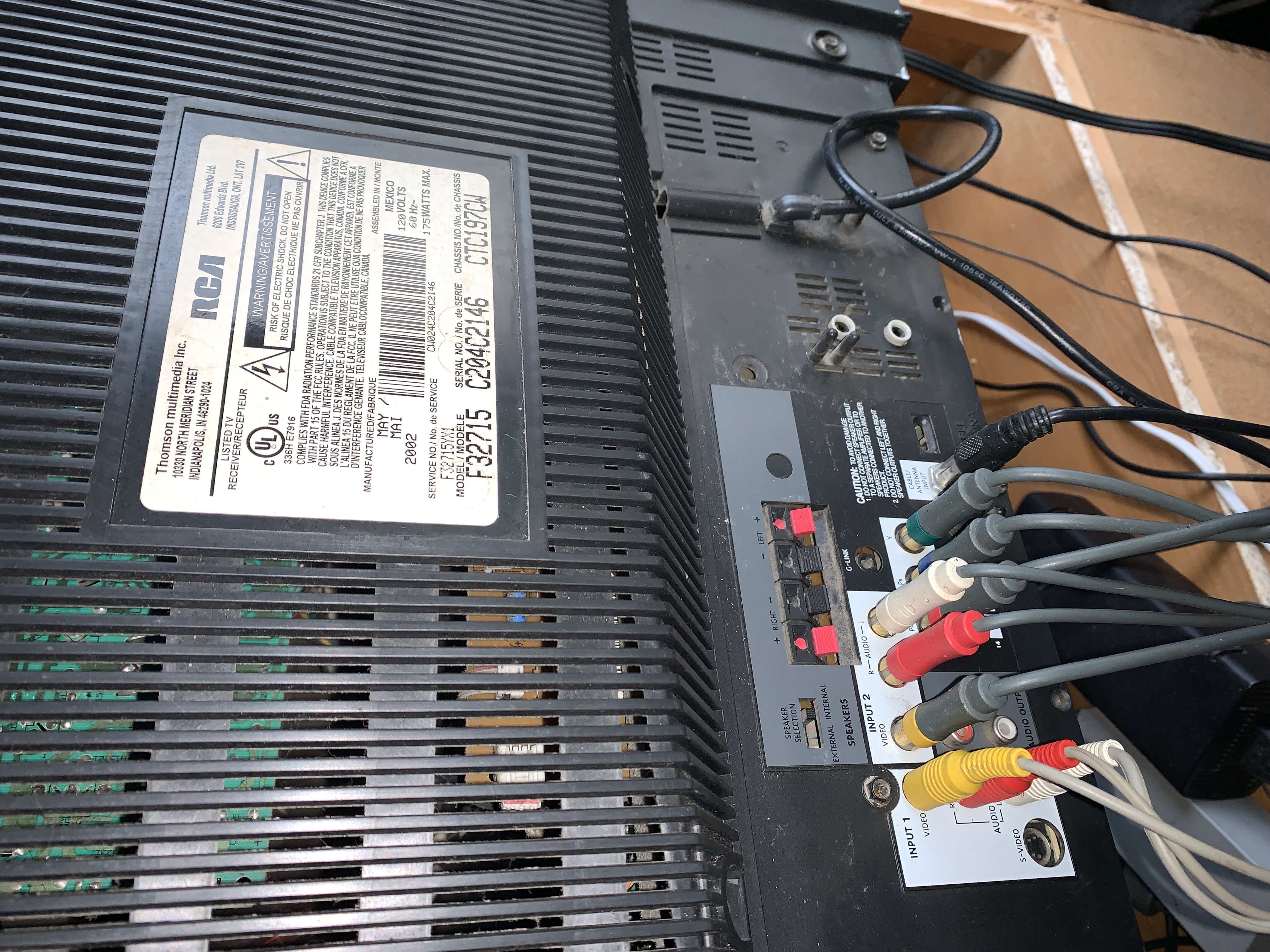

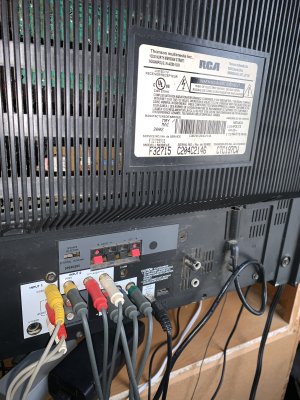

- Two Sets of Audio/Video Inputs with One S-Video Input/One Component Input/Audio Outputs.
When the television dwells on a still image for too long, the large speakers on the sides tend to create some color distortion.

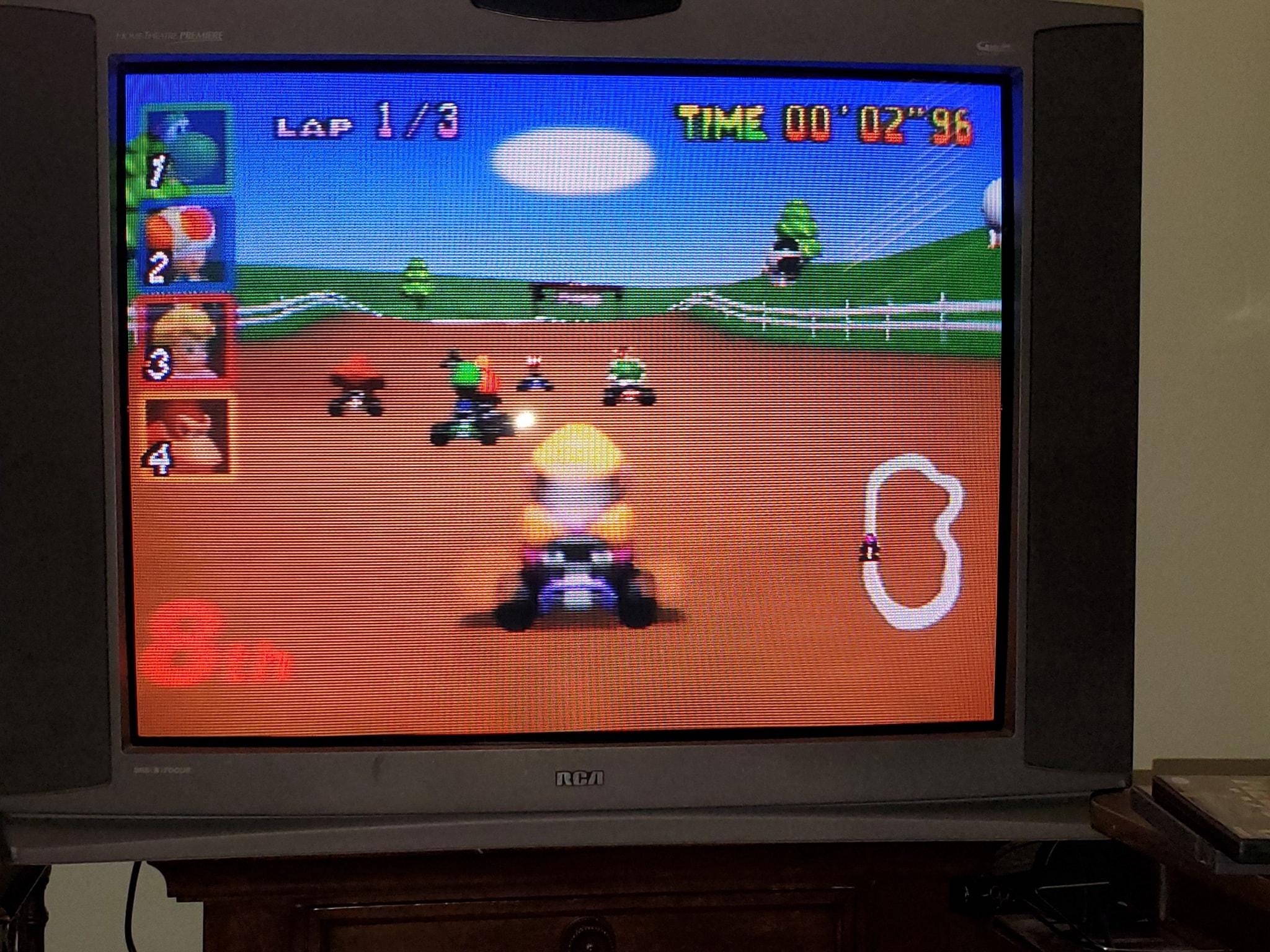

Gallery
| Specifications | |
|---|---|
| Brand: | RCA |
| Manufacturer: | Thomson |

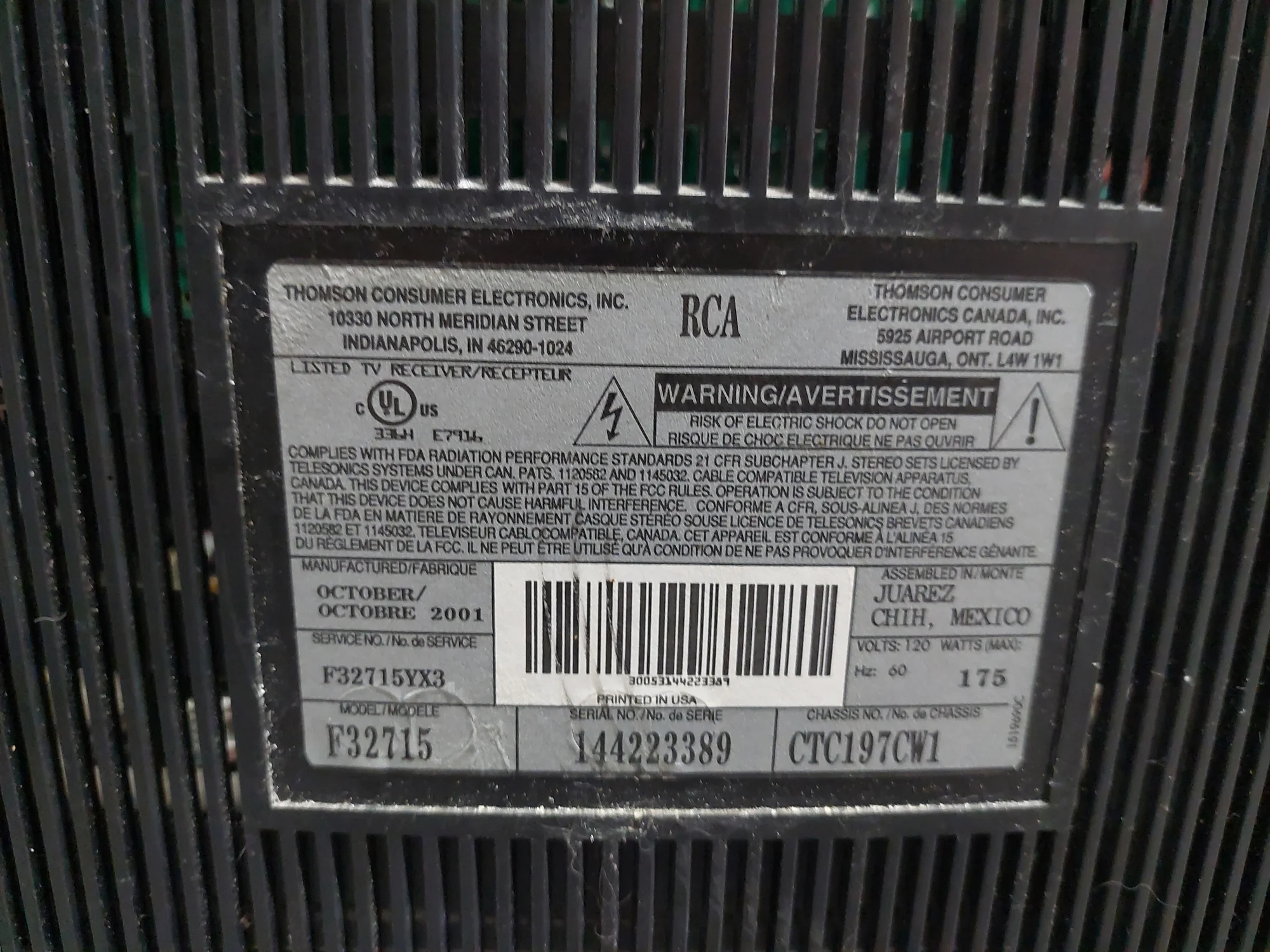

| Model: | F32715 |
| Series: | Home Theatre Premiere |
| Viewable Size: | 32" |
| Input Signals: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |

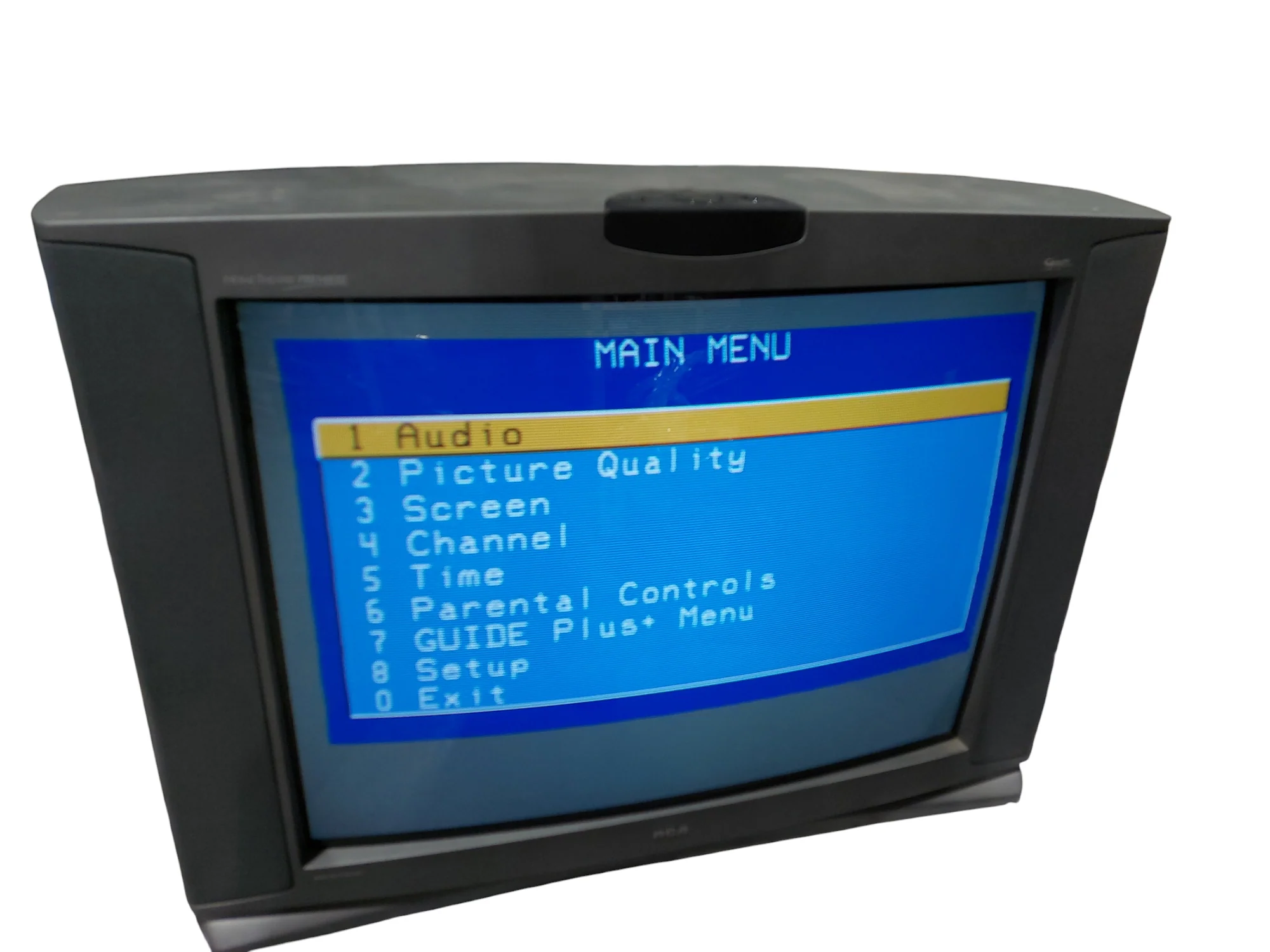

| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Comb Filtering: | 3-Line Digital |
| Focus Type: | Single |
| Tube: | Panasonic , Hitachi , A80LJF30X , RCA , M80JUA061X , A80AEJ15X |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo, Surround |
| Remote: | CRK76TA1 |
| Chassis: | CTC197, CTC197CW1 |
| Weight: | 124 lbs (56.2 kg) |
| Dimensions (W/H/D): |
892 x 655 x 612 mm
(35.1 x 25.7 x 24.1") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2002 |
| MSRP: | 849 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard), OEM Stand, RRS32G |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual, Community Submission |
