Summary

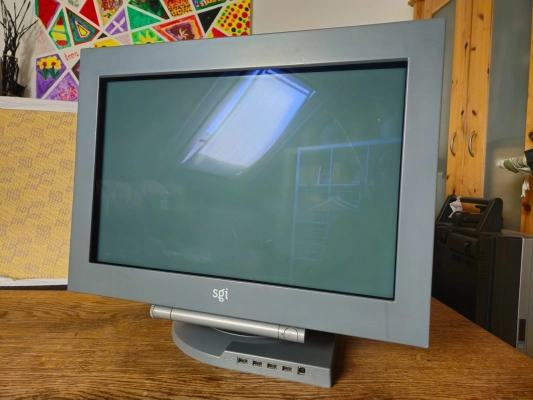

This Monitor is a rebadge of the legendary Sony GDM-FW900.

Aperture Grille Pitch

• 0.23mm – 0.27mm Variable

Screen Treatment

• High Contrast AR Coating

Horizontal Scan Range

• 30kHz – 121kHz

Vertical Scan Range

• 48Hz – 160Hz

Maximum Resolution

• 2304 x 1440 @ 80Hz

Recommended Resolution

• 1920 x 1200 @ 85Hz

Preset Resolutions

• 640 x 480 @ 60Hz VGA
• 720 x 400 @ 70Hz VGA Text
• 800 x 600 @ 75Hz ESVGA
• 1024 x 768 @ 85Hz VESA
• 1152 x 864 @ 85Hz VESA
• 1280 x 1024 @ 85Hz VESA
• 1600 x 1024 @ 60Hz VESA
• 1600 x 1024 @ 75Hz VESA
• 1600 x 1024 @ 85Hz VESA
• 1600 x 1200 @ 85Hz VESA
• 1920 x 1080 @ 60Hz VESA
• 1920 x 1080 @ 72Hz Macintosh® G4
• 1920 x 1080 @ 75Hz VESA
• 1920 x 1080 @ 85Hz VESA
• 1920 x 1200 @ 60Hz VESA
• 1920 x 1200 @ 75Hz VESA
• 1920 x 1200 @ 85Hz VESA
• 2048 x 1280 @ 60Hz VESA
• 2048 x 1280 @ 75Hz VESA
• 2048 x 1280 @ 85Hz VESA
• 2048 x 1536 @ 75Hz VESA
• 2304 x 1440 @ 60Hz VESA
• 2304 x 1440 @ 75Hz VESA
• 2304 x 1440 @ 80Hz VESA
• 1600 x 1024 @ 76Hz W900
• 1920 x 1080 @ 72Hz GWM-3000

Color Temperature Presets

• 5000 Kelvin
• 6500 Kelvin
• 9300 Kelvin
• sRGB
• 5000K – 11000 Linear Control
• Variable RGB Gain/Bias

Manuals

• Service Manual
• Owner's Manual
• 2002 Comparative Spec Sheet

Media & Promo Materials

• Sales Brochure

Notes

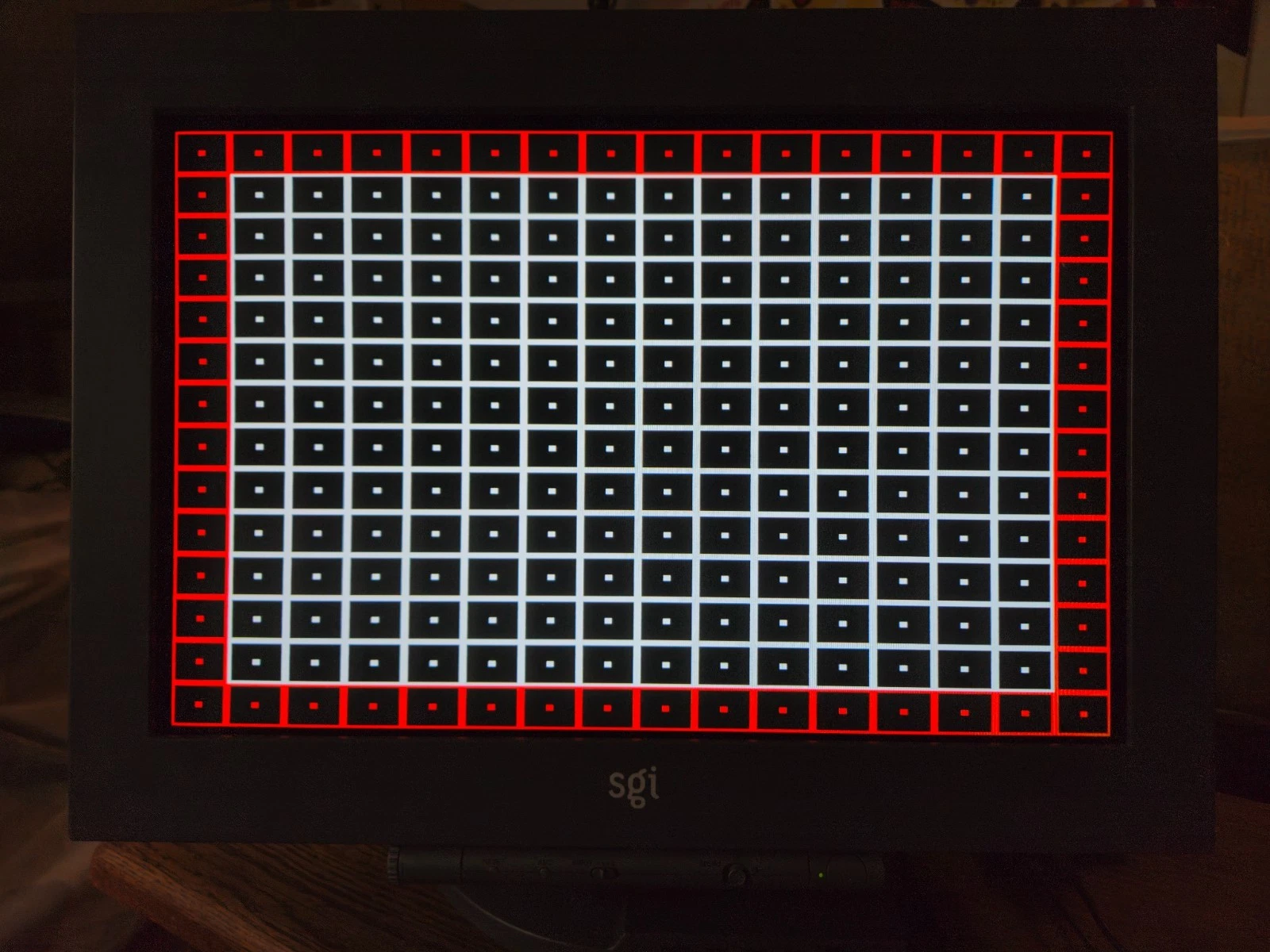

This monitor includes digital convergence controls, accessible through the OSD menu.

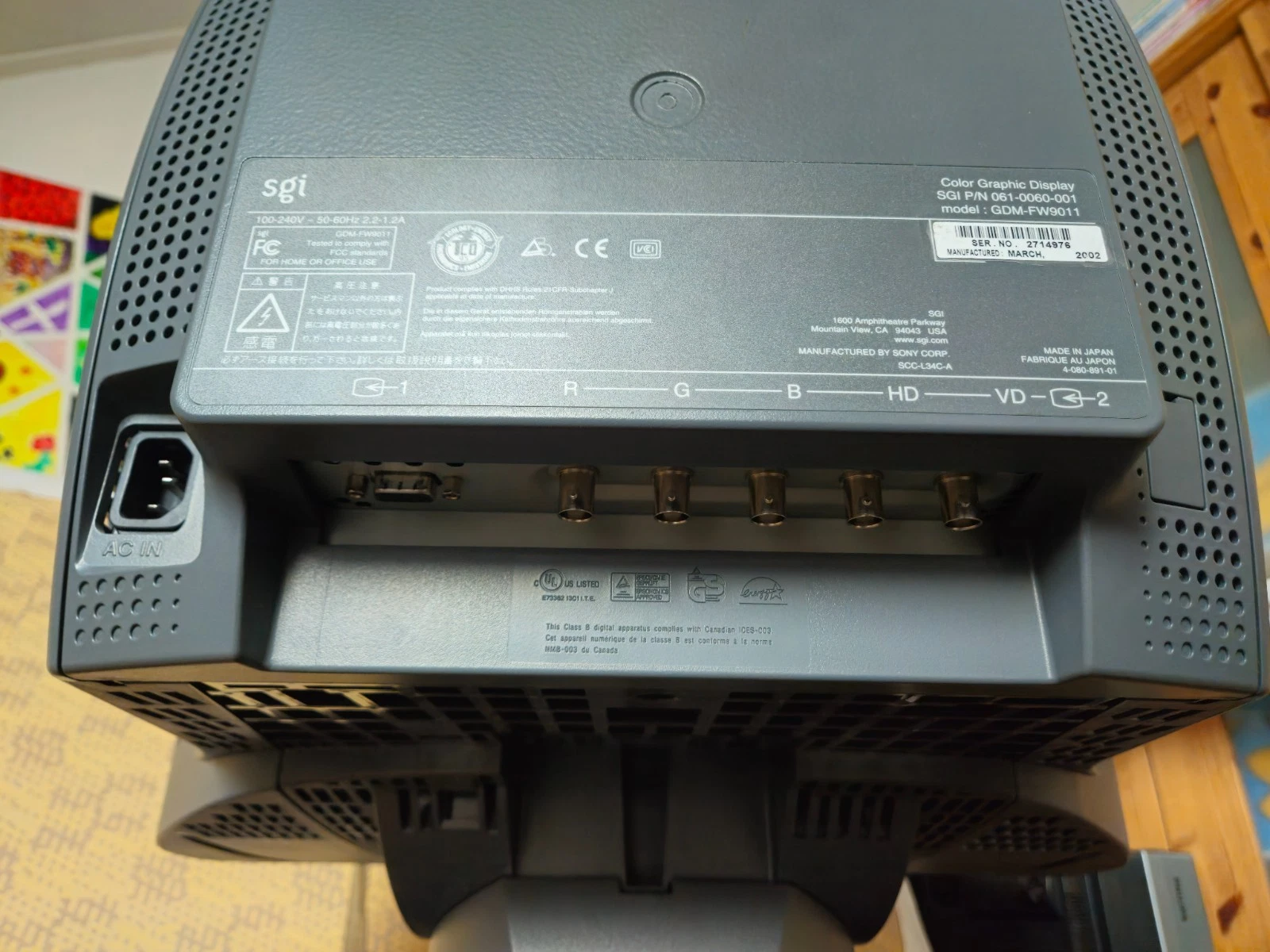

BNC does not carry EDID, therefore you should use the VGA input when trying to push the monitor to higher resolutions.

Brightness & Color Issues

PC Monitors made by Sony often have drifted out of calibration. This can result in poor color balance, excessive brightness, or other issues. These monitors often have an extremely bright picture, sometimes with a green tint. This cannot always be corrected with the OSD controls, and the monitor's firmware settings must be adjusted using WinDAS, Sony's proprietary calibration software.
