Summary
Similar to the CPD-G220 except at a lower horizontal frequency. The CPD-G220S is identical plus has audio input, output, and speakers.
Literature
Notes
Many of Sony's PC monitors from this generation include an hour counter. To access it, turn on the monitor with no input signal and hold control button to the left for a short time.
A small panel below the VGA cable can be removed to provide access to the serial pins for WinDAS calibration.
Brightness & Color Issues
PC Monitors made by Sony often have drifted out of calibration. This can result in poor color balance, excessive brightness, or other issues. These monitors often have an extremely bright picture, sometimes with a green tint. This cannot always be corrected with the OSD controls, and the monitor's firmware settings must be adjusted using WinDAS, Sony's proprietary calibration software.
This tube has a fragile anti-glare coating which will be damaged by all common cleaning products including Ammonia-Free products. You should only clean it with distilled water or distilled water mixed with a few drops of dish soap. Use only a soft clean microfiber towel to wipe the screen. I reccomend buying a spray bottle to mist the screen with the water or dish soap solution.
If the screen has missing/discolored parts of the finish, or spots that look like scratches that don't come off, or parts where the mirror finish is missing, the coating has already been permanently damaged and should be removed. You can find instructions for removing and replacing the film here.
Many brands used these coatings including Mitsubishi, Sony, JVC, IBM, and more. Usually if the underlying tube technology is aperture grille-based and the monitor is a higher performance PC monitor, it can be assumed the tube has this fragile coating. The user manual of the monitor will also mention not to use any cleaning products on the screen.
Here is an example of what permanently damaged glare coating looks like: Click to open Image

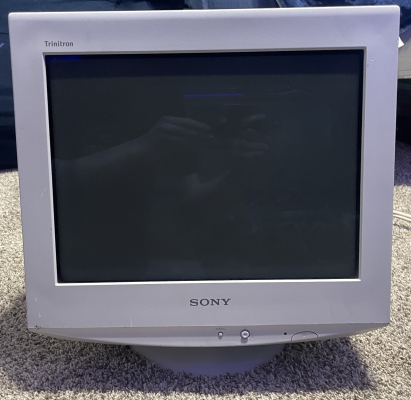

Gallery
| Specifications | |
|---|---|
| Brand: | Sony |
| Manufacturer: | Sony |
| Model: | CPD-G220R |
| Series: | CPD |
| Viewable Size: | 16" |
| Inputs: | VGA |
| Sync: | HV Sync |
| Native Resolutions: | VGA, SVGA, XGA, SXGA |
| Horizontal Scan Range: | 30 kHz, 85 kHz |
| Vertical Scan Range: | 48 Hz, 170 Hz |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, Software Calibration |
| Vertical Output IC: | LA78040 |
| Flyback: | NX-4405 |
| Focus Type: | Dual |
| Deflection: | 90° |
| Mask: |
Aperture Grille
|
| Pitch: | .24 mm |
| Tint: | Dark |
| Removable Glare Film: | Yes |
| Yoke: | Y17TKJ3-Y |
| Yoke Horz. Inductance: | 0.11145 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 3.822 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 0.500 ohm, 0.5 ohm, 0.50 ohm |
| Yoke Vert. Resistance: | 13.37 ohm |
| Speakers: | None |
| Chassis: | SCC-L38A-A |
| Weight: | 41.9 lbs (19 kg) |
| Dimensions (W/H/D): |
402 x 418 x 421 mm
(15.8 x 16.4 x 16.5") |
| Application: | Computer Monitor |
| Cabinet Material: | Plastic |
| Launched: | 2001 |
| MSRP: | 299 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | Universal |
| Mounting: | Desk Stand |
| Degaussing: | Automatic on Power-on, Manual |
| Tag: | Community Submission, Needs Tube Info |
