Sony KD-36FS170
Eli Krause, John S
October 2, 2024, 12:54 pm
May 21, 2025, 4:17 pm
October 2, 2024, 12:54 pm
May 21, 2025, 4:17 pm
Description
Enjoy incredible image accuracy and wide viewing angles with Sony’s FS170 series WEGA TVs. Stepping up from the KV-20FS120 and KV-24FS120 they feature built-in analog and digital receivers, ClearEdge VM Wideband Velocity Modulation (KD-32FS170 and KD-36FS170 only), Wide Screen Mode and Program Palette Presets.
Made in 2006, this was the last SD CRT that Sony produced. It has a digital ATSC tuner and is still capable of receiving modern broadcast TV with an antenna and it has the same tube and picture quality as its predecessors
Manuals
Media & Promo Materials
- Sony Dealer Product Guide 2006

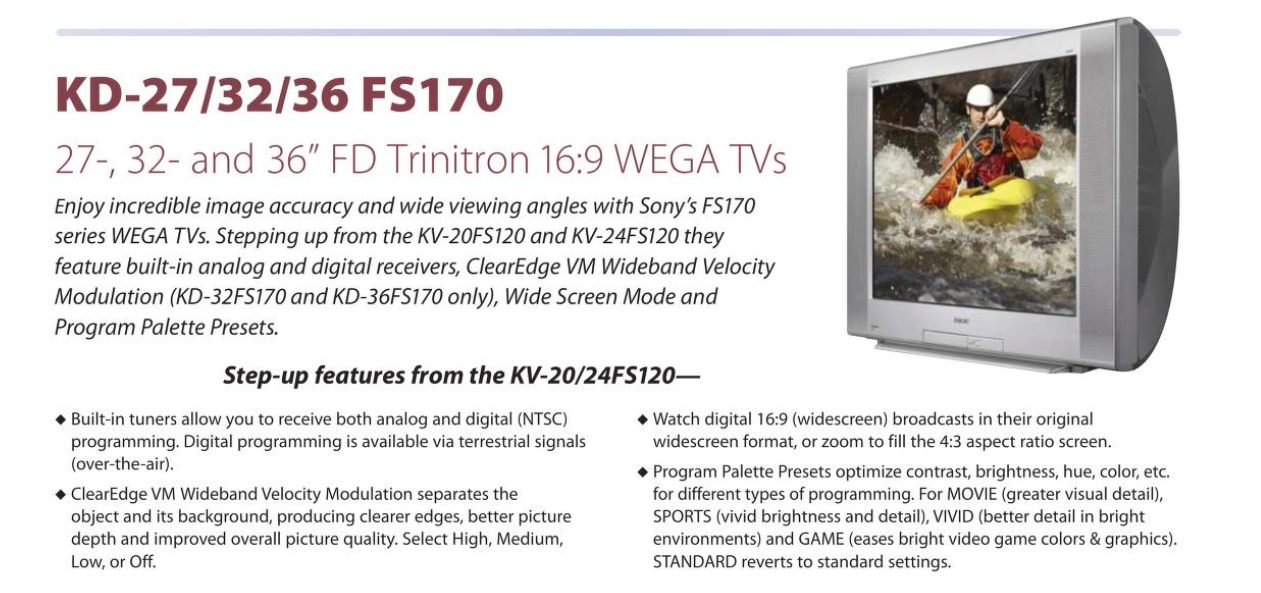

- B&H Catalog 2007
- Sony Continues to Market Direct-View CRT Televisions
Notes
Like the other BA-6 chassis Trinitrons, this TV uses a one-chip design and cannot be modified to accept RGB. However, its component video quality is excellent. Adjusting the yoke on a flat CRT to fix bowing

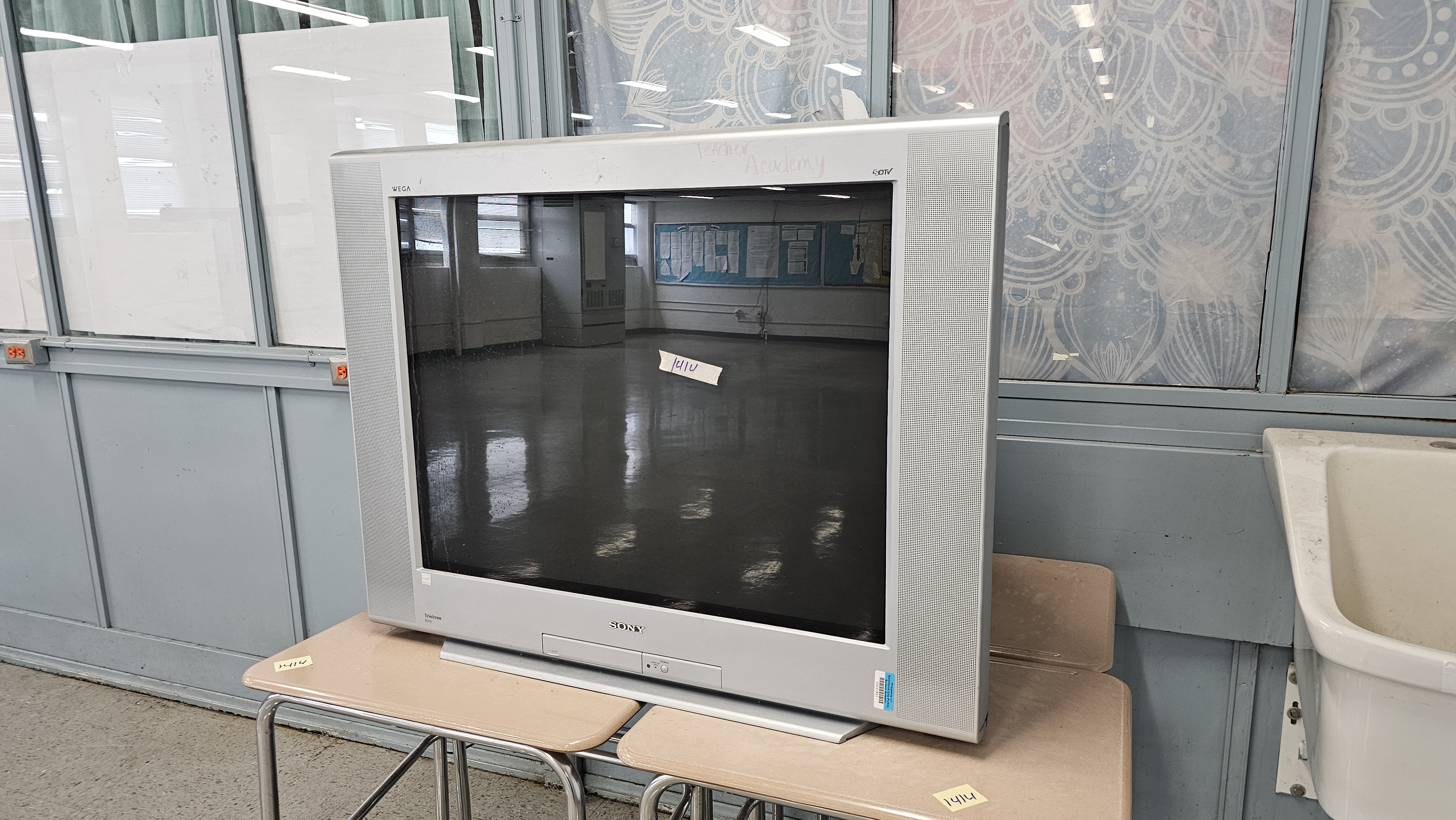

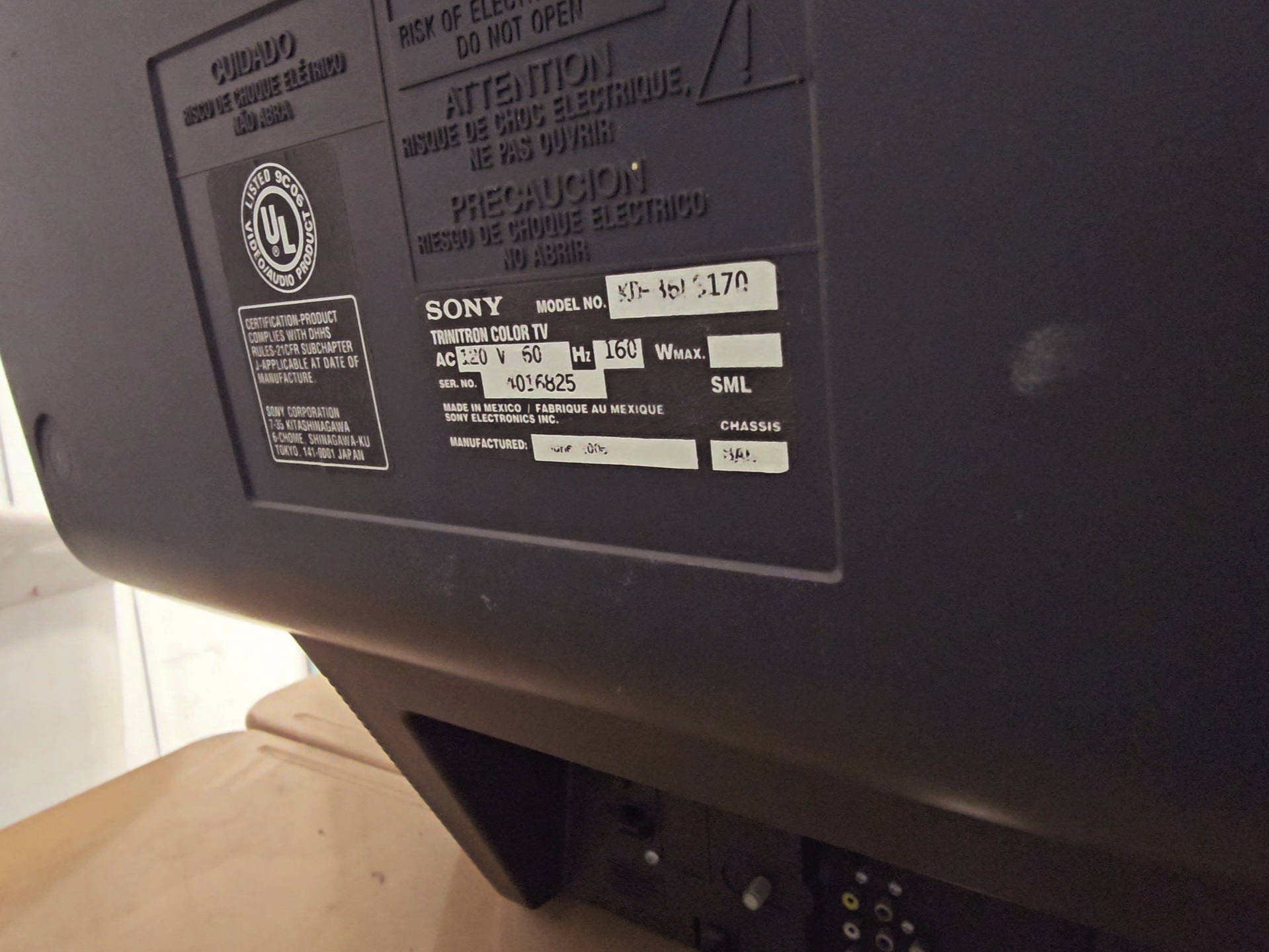

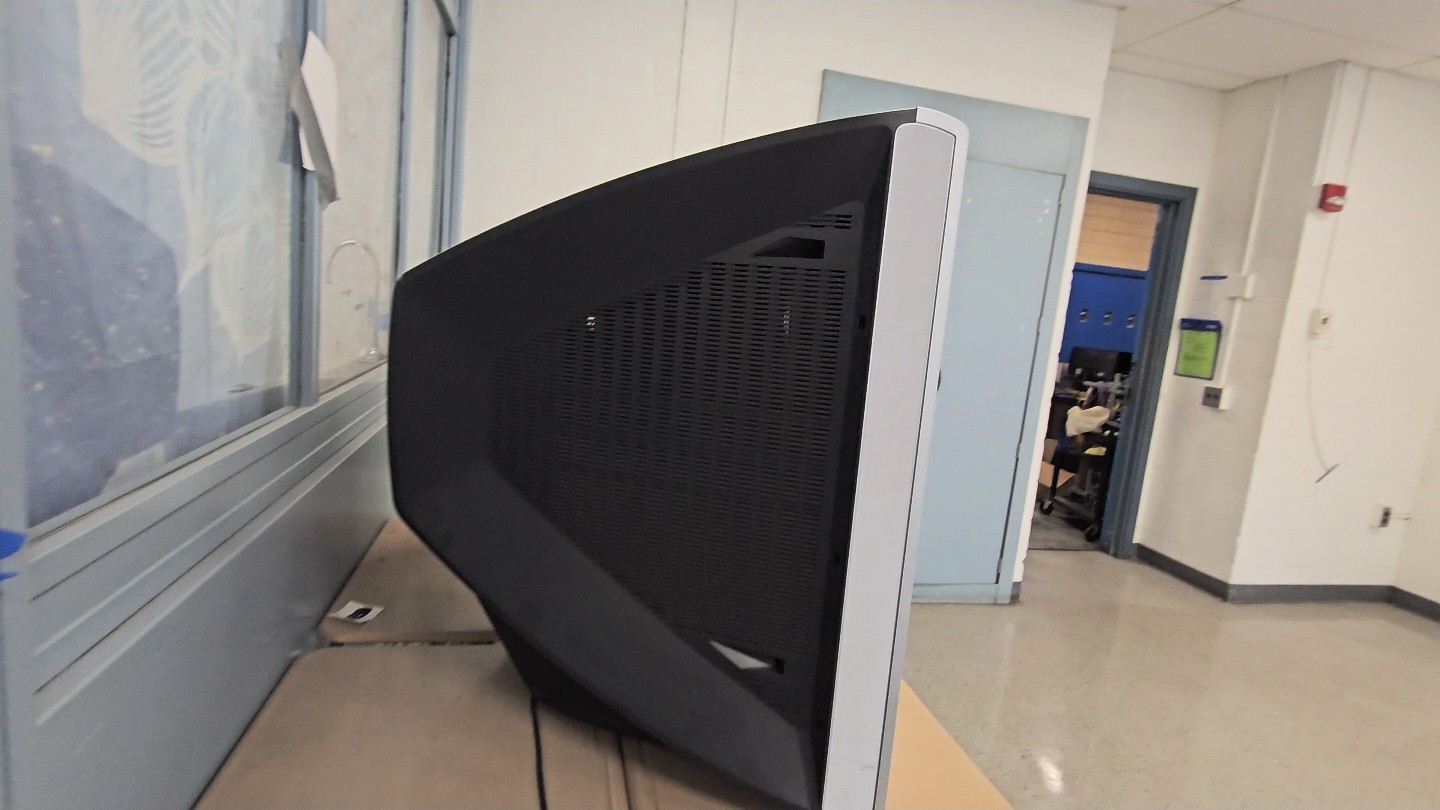

Gallery




Specifications | |
---|---|
Brand: | Sony |
Manufacturer: | Sony |
Model: | KD-36FS170 |
Series: | Wega |
Viewable Size: | 36" |

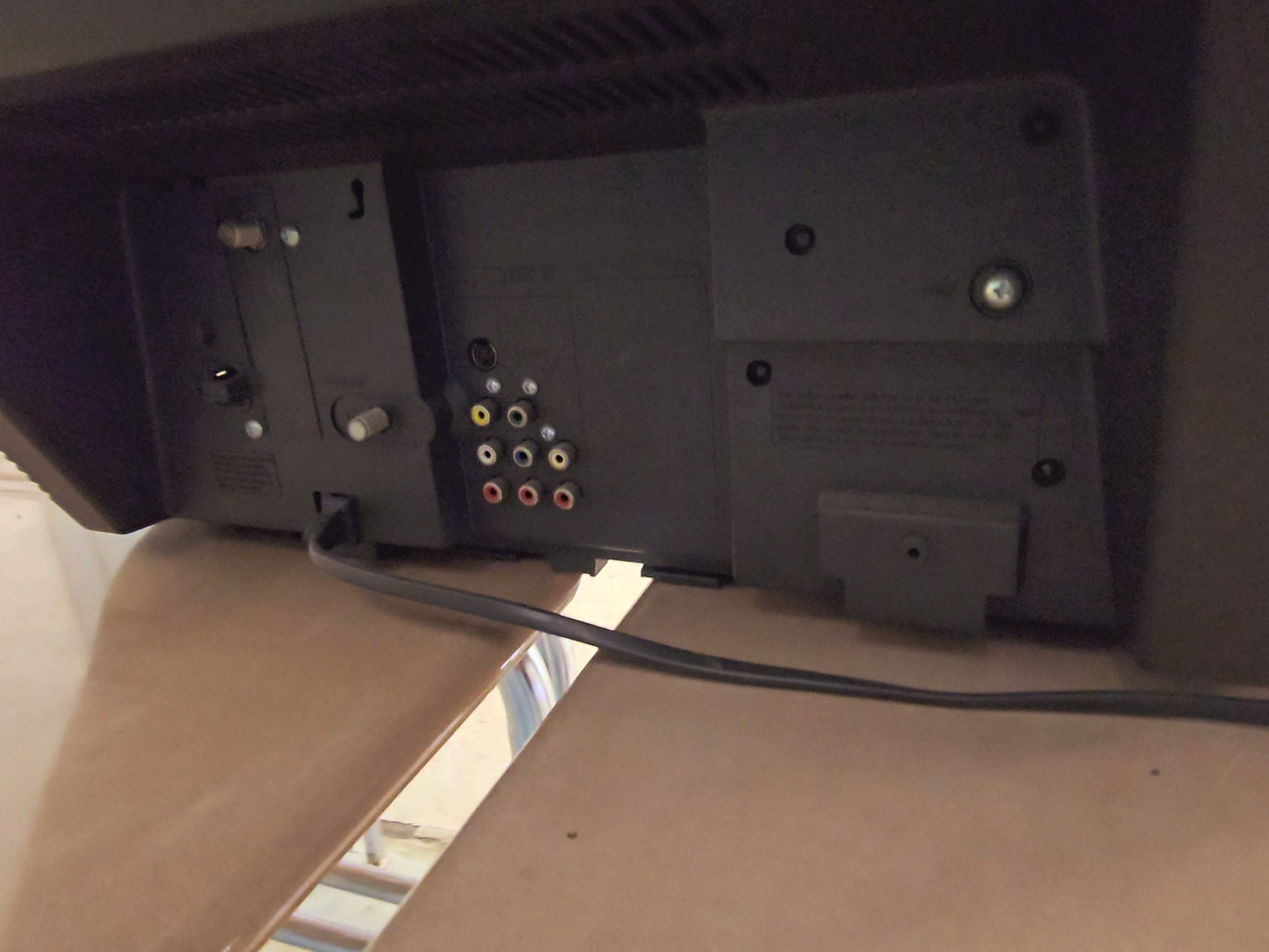

Inputs: | Composite, S-Video, RF, Component YPbPr, ATSC |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Horz. Output Transistor: | D2645 |
Vertical Output IC: | STV9325 |
Jungle: | Renesas, M65586MK-056FP |
Comb Filtering: | 3-Line Digital |
Comb Filter IC: | Renesas, M65586MK-056FP |
Flyback: | NX-4900 |
Focus Type: | Single |
Tube: | Sony FD Trinitron , A90LPW80X |
Mask: |
Aperture Grille
![]() |
Tint: | Dark |
Yoke: | Y38RSA-V |
Speakers: | 5W x 2 |
Remote: | RM-YD006 |
Chassis: | BA-6 |
Weight: | 216 lbs (98 kg) |
Dimensions (W/H/D): |
985 x 773 x 633 mm
(38.7 x 30.4 x 24.9") |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 2006 |
MSRP: | 999 USD |
Country of Manufacture: | Mexico |
Market: | North America |
Power Standard: | 120v |
Mounting: | OEM Stand, SU-36FS2 |
Degaussing: | Automatic on Power-on |
