Sony KV-36FS120
Mike Morisette, Eli Krause
October 2, 2024, 12:54 pm
October 3, 2024, 10:05 am
October 2, 2024, 12:54 pm
October 3, 2024, 10:05 am
Summary

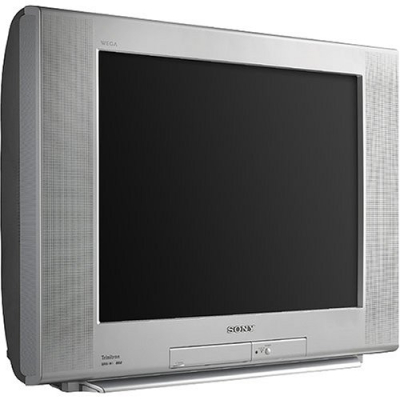

36" flat screen color TV from Sony. Features a full set of inputs including RF, composite, s-video, and component
Literature
Notes
- RGB-Moddable: No
- Adjusting the yoke on a flat CRT to fix bowing
Composite 240p Performance
by Eli Krause

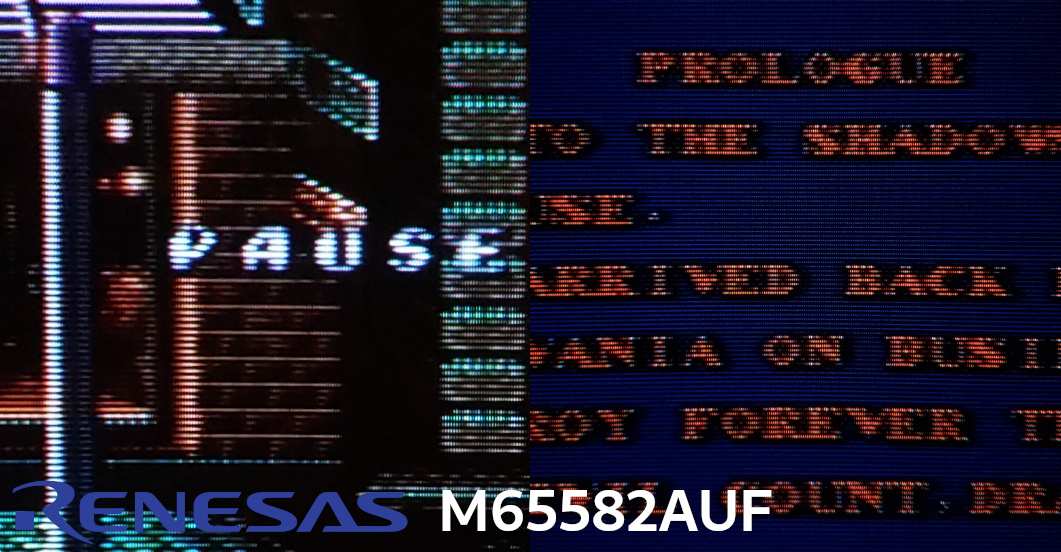

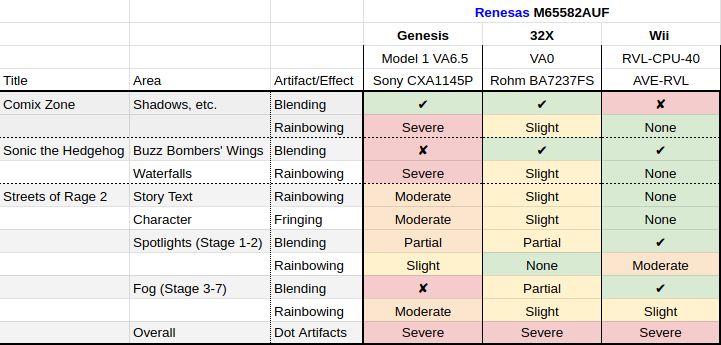

For composite decoding this set uses a Renesas M65582AUF, a 3-line digital comb filter/unified jungle chip. The blending of dithering patterns is inconsistent, and the dot artifacting is severe on all consoles tested. Recommend using an external notch filter to decode composite instead (such as the notch filter in a RetroTink) and sending that to the set's component input to remove nearly all dot artifacts and blend all dithering patterns.
Gallery
Specifications | |
---|---|
Brand: | Sony |
Manufacturer: | Sony |
Model: | KV-36FS120 |
Series: | Wega |
Viewable Size: | 36" |
Inputs: | Composite, S-Video, RF, Component YPbPr |
Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Jungle: | Renesas, M65582AUF |
Comb Filtering: | 3-Line Digital |
Comb Filter IC: | Renesas, M65582AUF |
Tube: | Sony FD Trinitron , A90LPW80X |
Mask: | Aperture Grille |
Tint: | Dark |
Speakers: | Stereo, 10W x 2 |
Remote: | RM-Y194 |
Chassis: | BA-6 |
Weight: | 216 lbs (98 kg) |
Application: | Consumer |
Launched: | 2004 |
MSRP: | 899 USD |
Country of Manufacture: | Mexico |
Mounting: | OEM Stand, SU-36FS2 |
Degaussing: | Automatic on Power-on |
