Summary

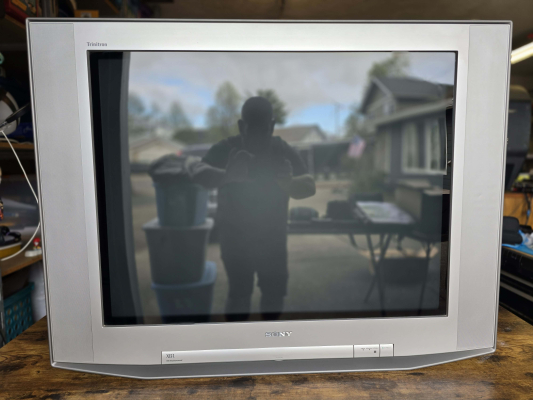

36" flat-display HD Trinitron by Sony, made in the USA in 2000. Has RF, composite, s-video, and component inputs with stereo sound. Can accept 240p/480i, 480p, 720p, and 540p/1080i. All signals are converted to 33khz, resulting in lag.
(Special thanks to Andrew Hash for the pics!)
Manuals
Media & Promo Materials
Notes
Gallery
| Specifications | |
|---|---|
| Brand: | Sony |
| Manufacturer: | Sony |

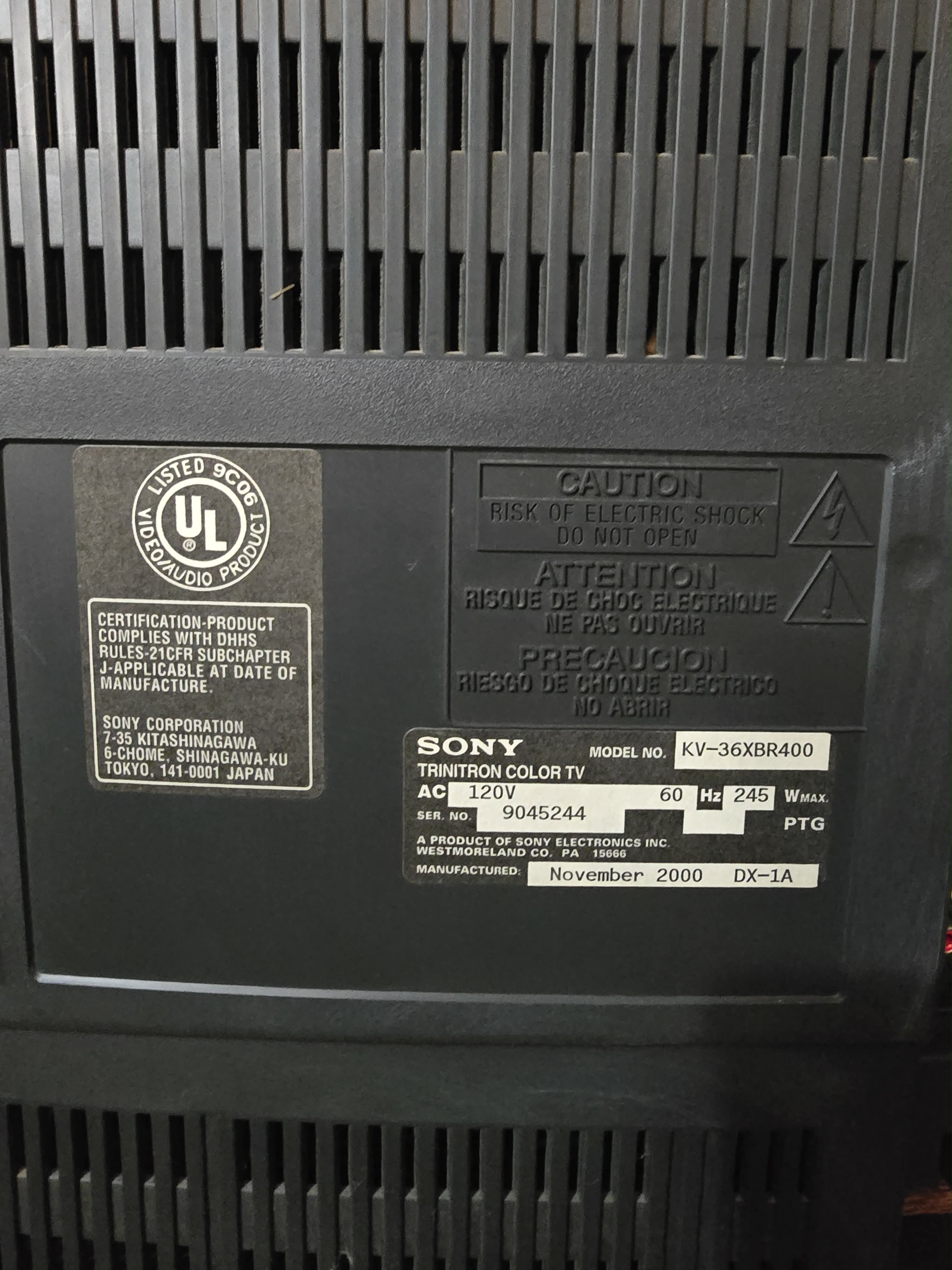

| Model: | KV-36XBR400 |
| Series: | Wega (HD) |
| Viewable Size: | 36" |

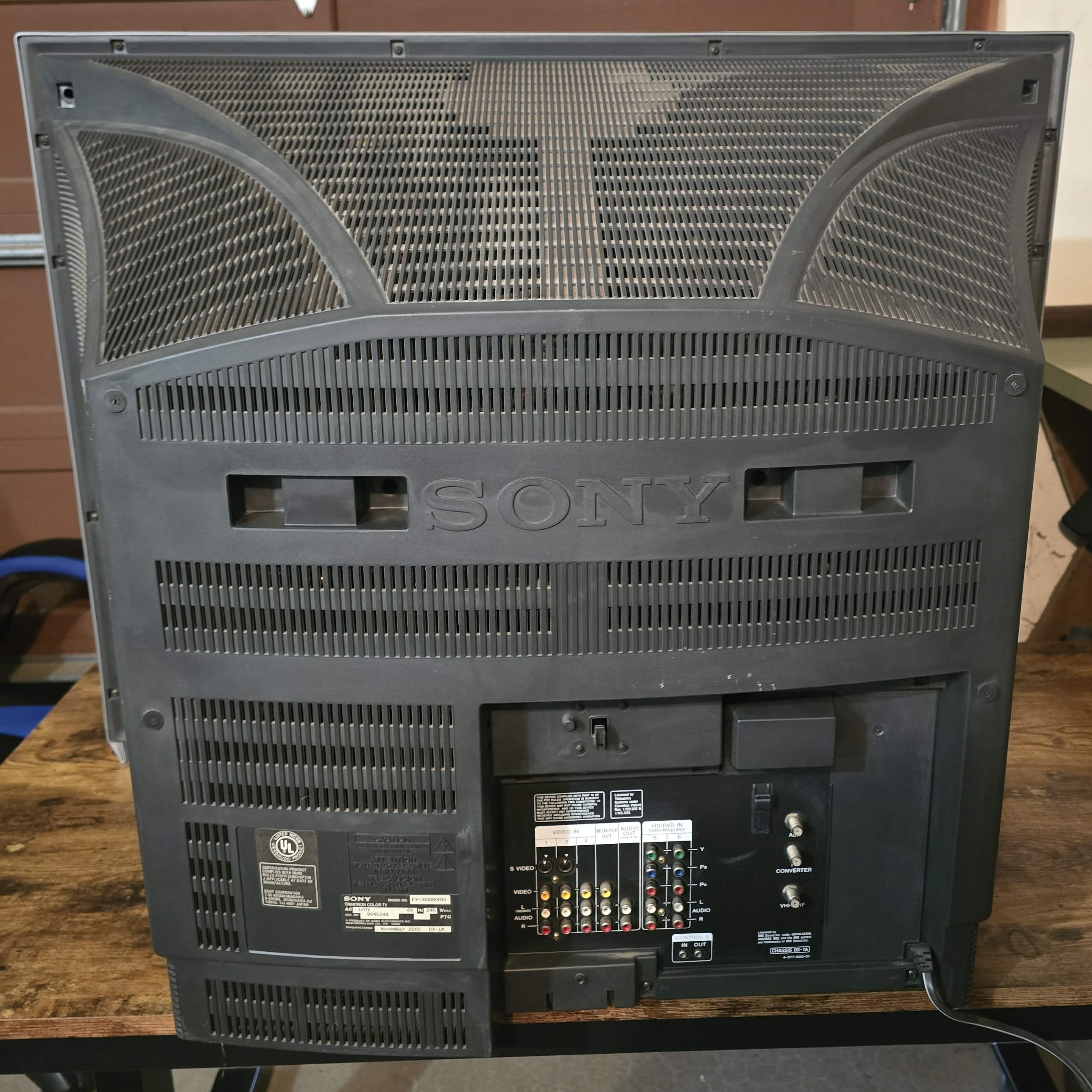

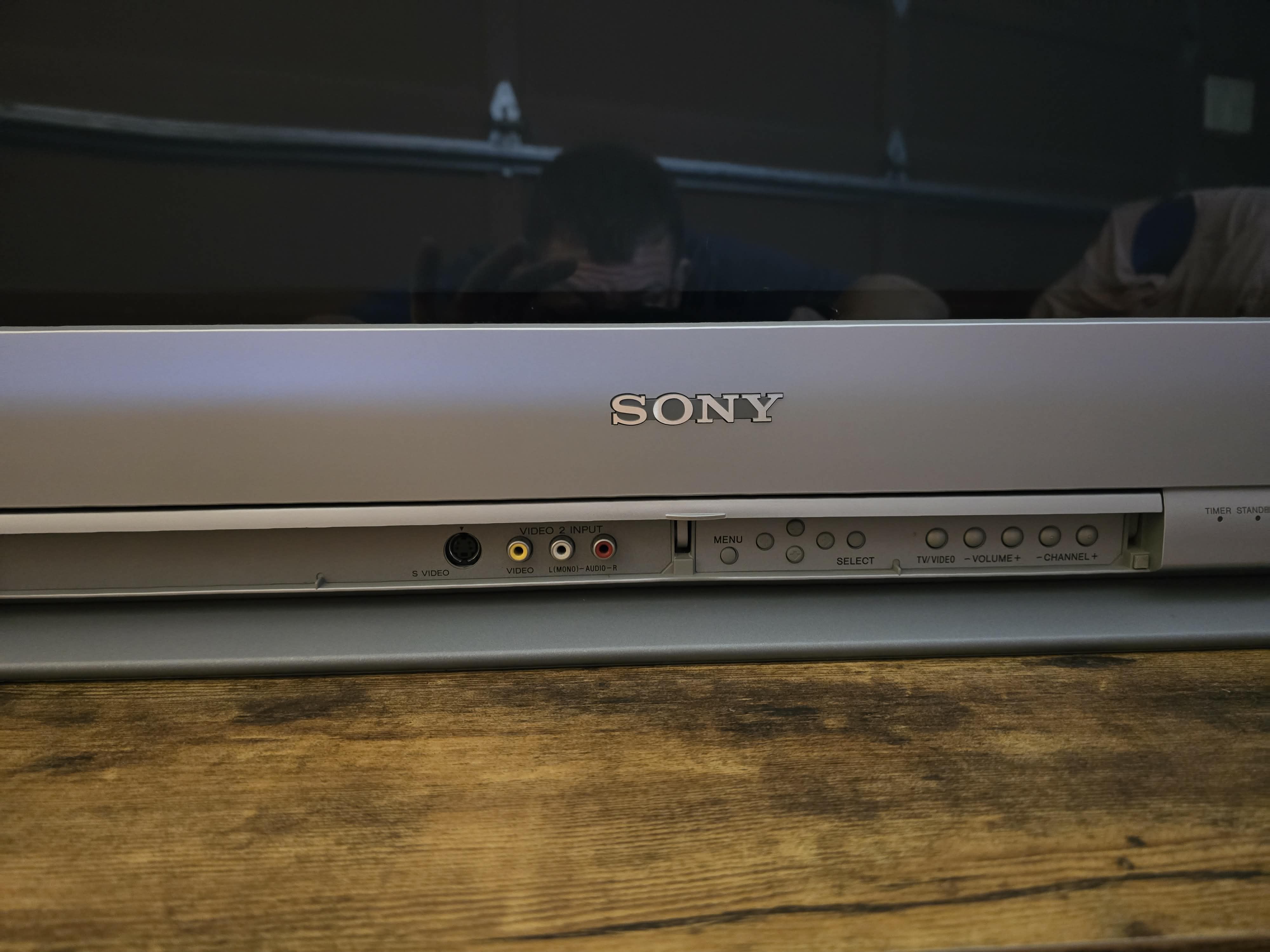

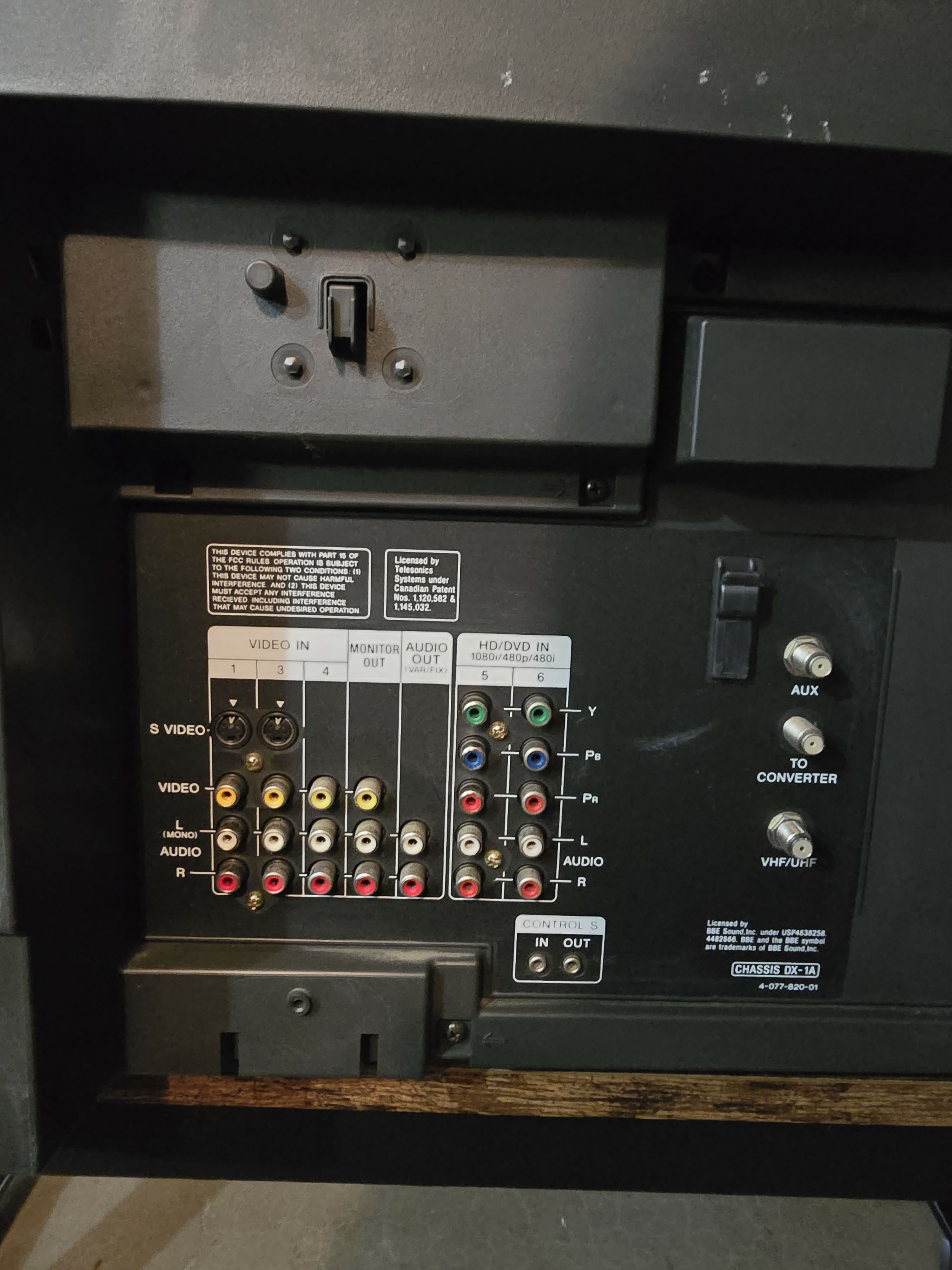

| Input Signals: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 1080i, 540p |
| Scaled Resolutions: | 240p, 480i, 480p, 720p |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers |
| Flyback: | 1-453-346-11 |
| Focus Type: | Single |
| Tube: | Sony FD Trinitron , A90LPW80X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Aperture Grille
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo, 15W x 2 |

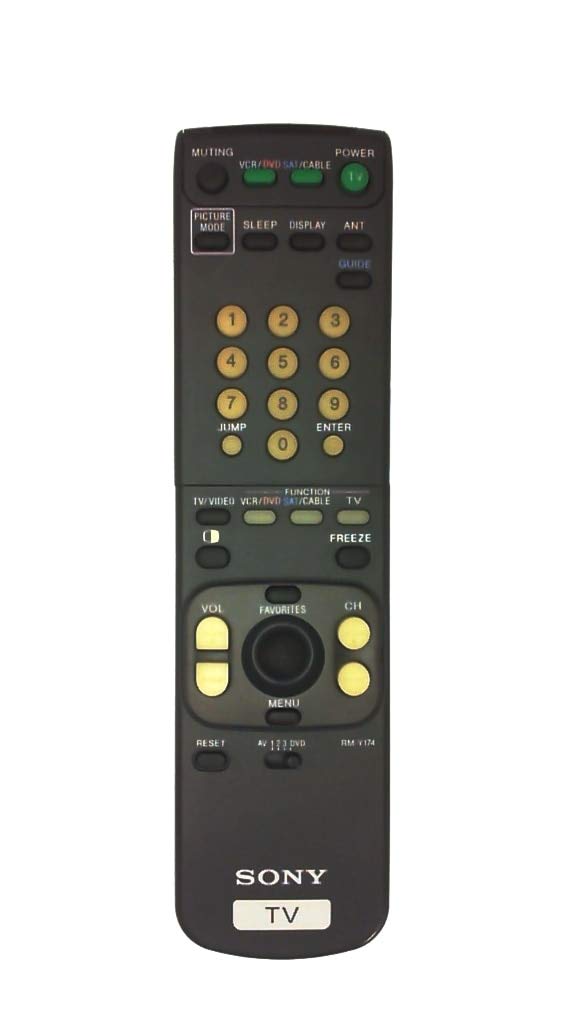

| Remote: | RM-Y174 |
| Chassis: | SCC-S47B-A, DX-1A |
| Weight: | 238 lbs (108 kg) |
| Dimensions (W/H/D): |
994 x 754.5 x 622 mm
(39.1 x 29.7 x 24.4") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2000 |
| MSRP: | 2699 USD |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |

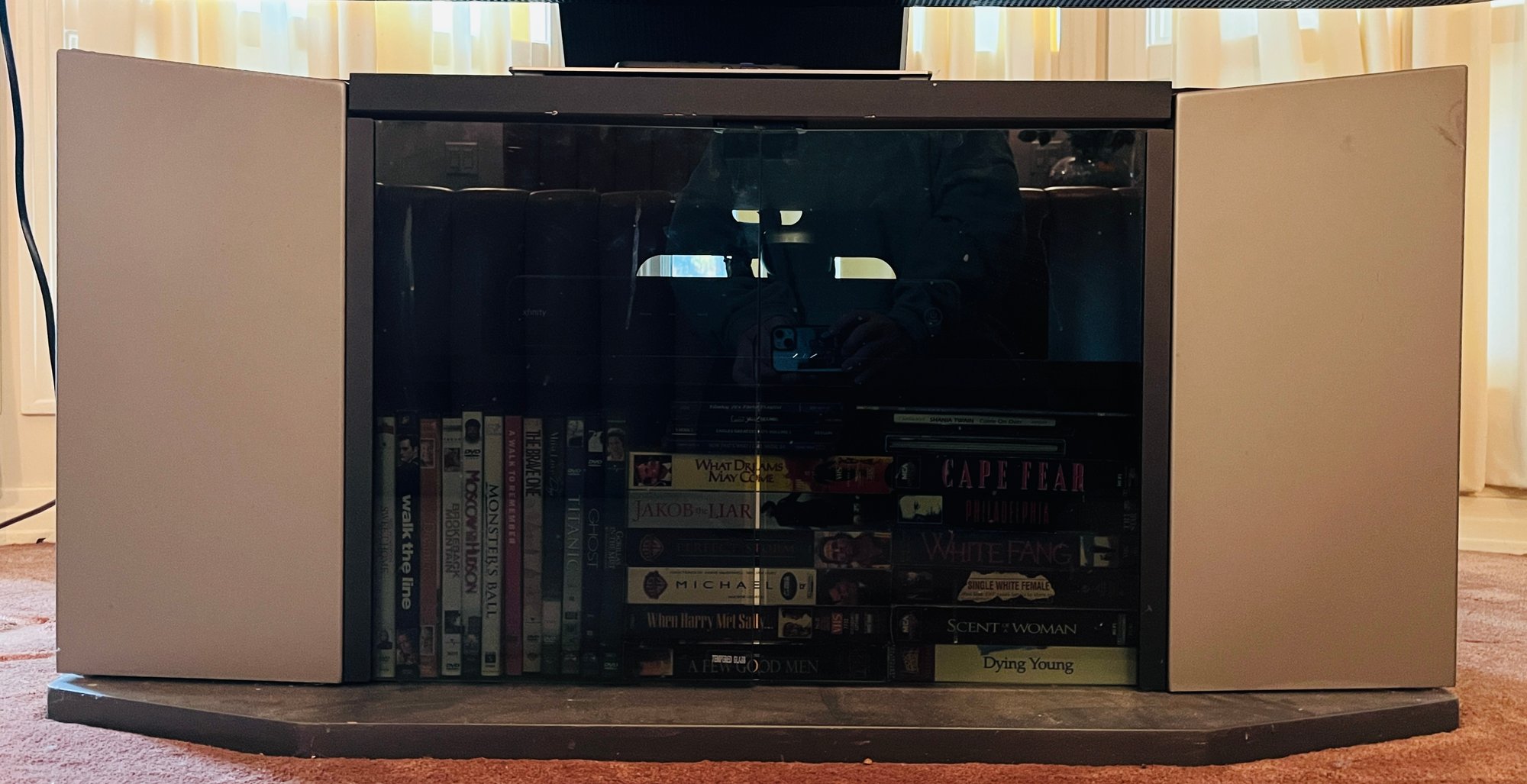

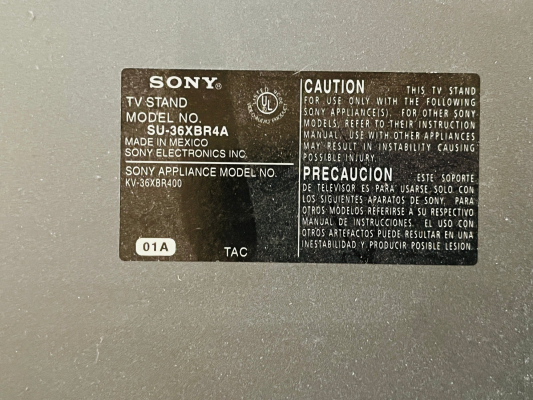

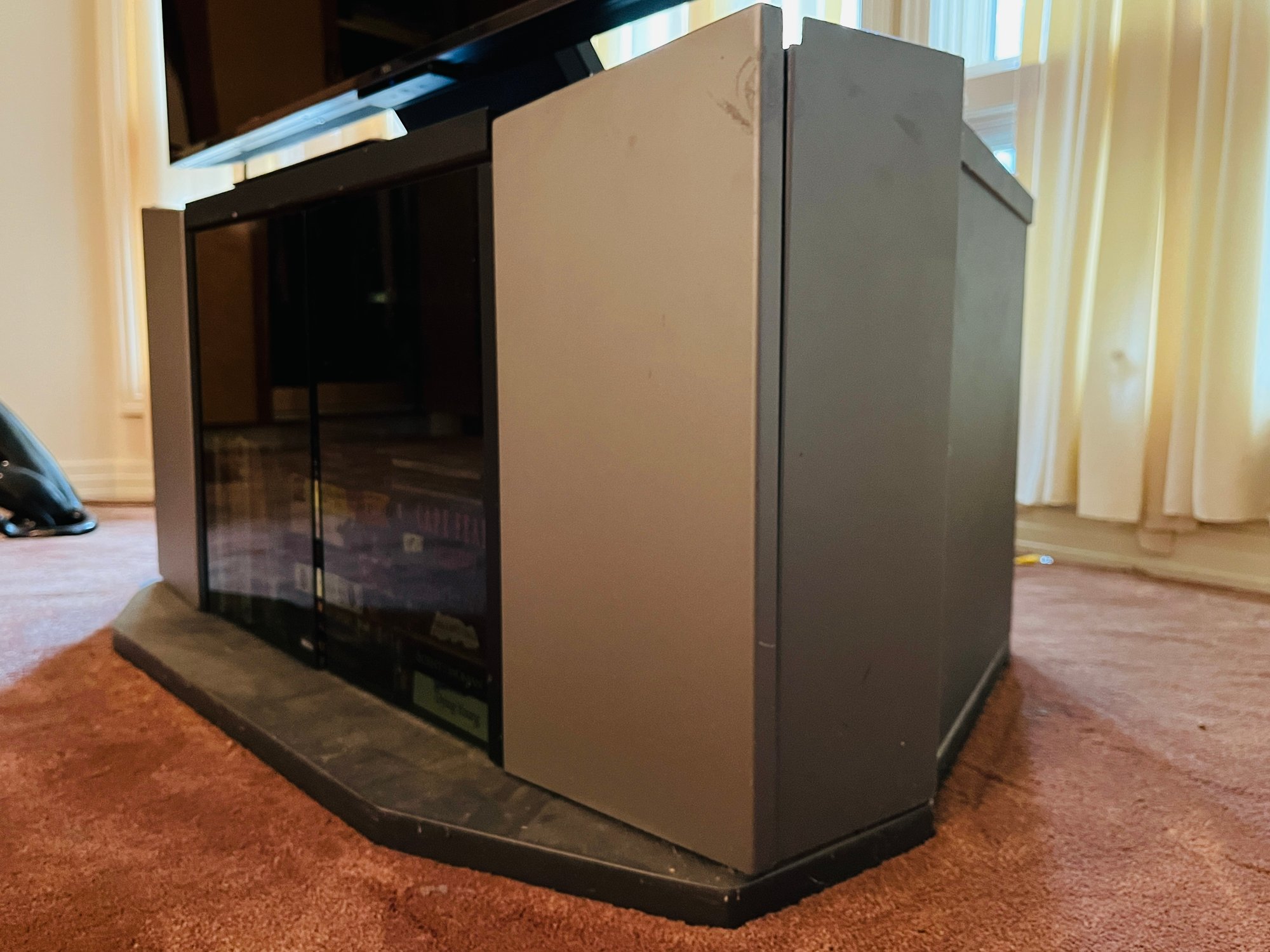

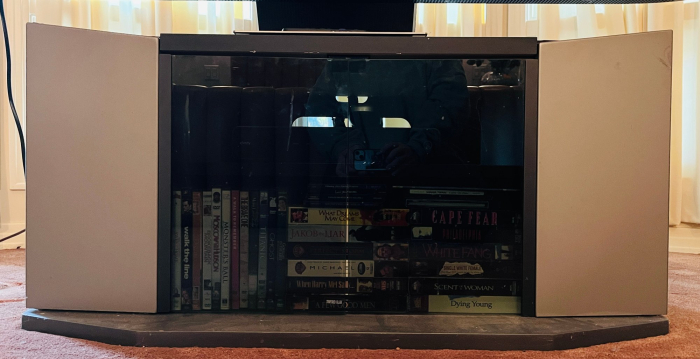

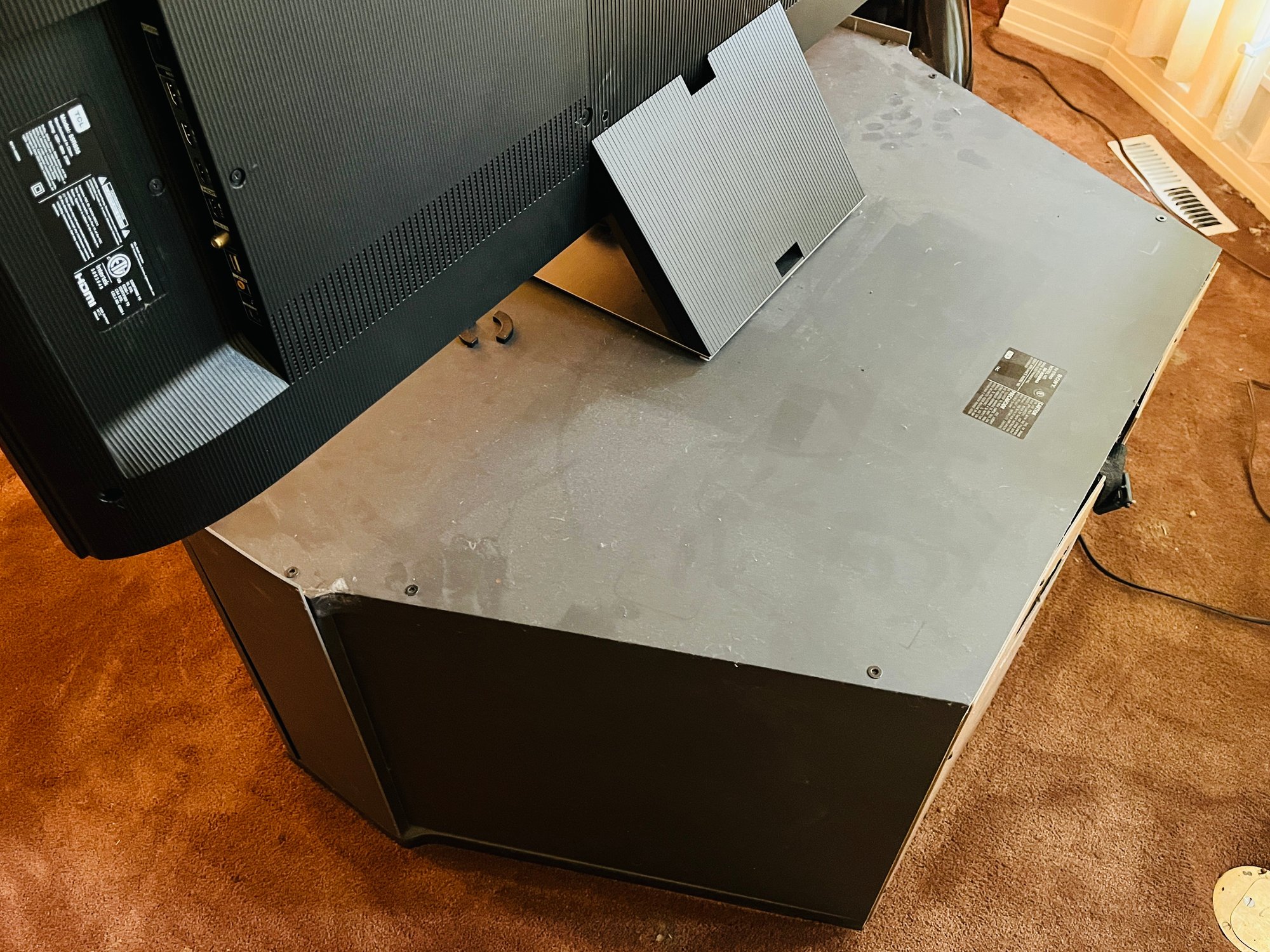

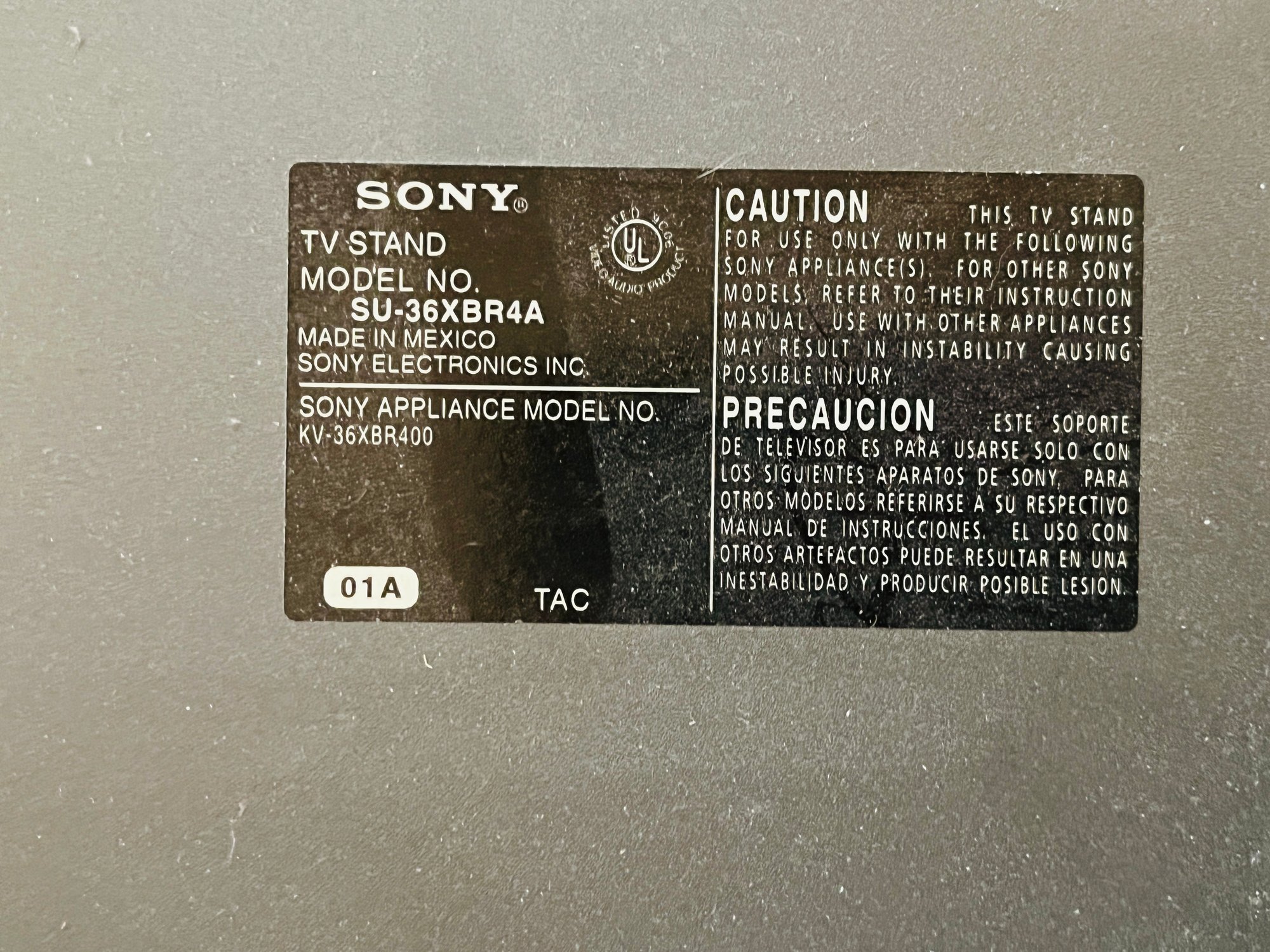

| Mounting: | Table Surface (Standard), OEM Stand, SU-36XBR4A, SU-36XBR4 |
| Degaussing: | Automatic on Power-on |
