Summary

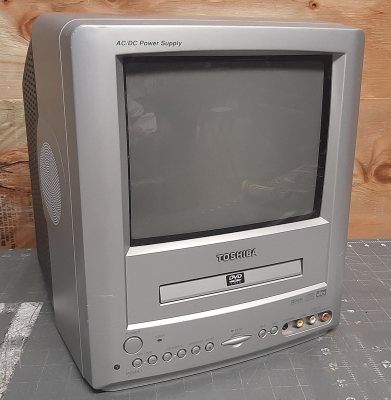

Portable 9" TV/DVD combo, made by Orion and sold by Toshiba. Includes a front mounted stereo AV input. Can be run off 12 volts DC if needed.

Literature

• Service Manual
• RGB Mod
• Notched S-Video Mod

Notes

This TV uses the same tube as the JVC TM-A9 series of pro monitors.

While most picture adjustments are performed with the service menu, there is an adjustment pot on the main board for vertical position.

This model uses the same Toshiba jungle chip as the 14AF42. It uses analog RGB for the OSD and can be modded for RGB using the Mux method. It can also be modded for S-Video (see links in "literature" section.
