Summary

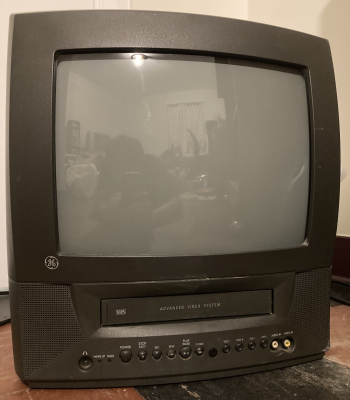

13" TV/VCR combo, manufactured by Thomson Electronics and sold under the GE brand. Originally manufactured in 2001 in Thailand.
Manuals
Notes
Most of the menu functions of this TV, including picture settings, can be accessed by the front buttons.
In the US, Thomson was best known as the owner of RCA. They produced an RCA-branded version of this TV, the T13062; it used a different front bezel but was internally the same. There is also the GE 13TVR72 which is a white version of this set.

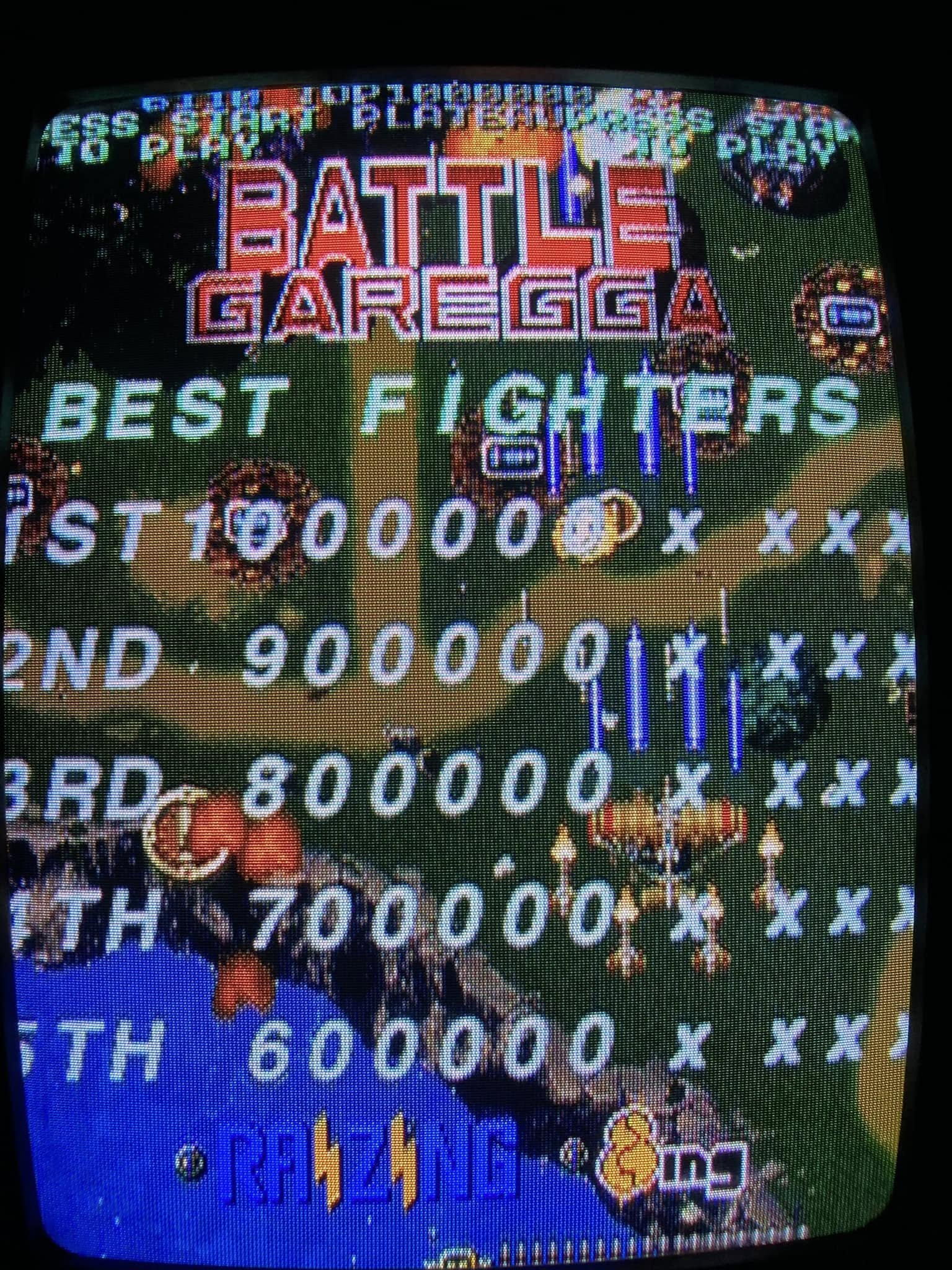

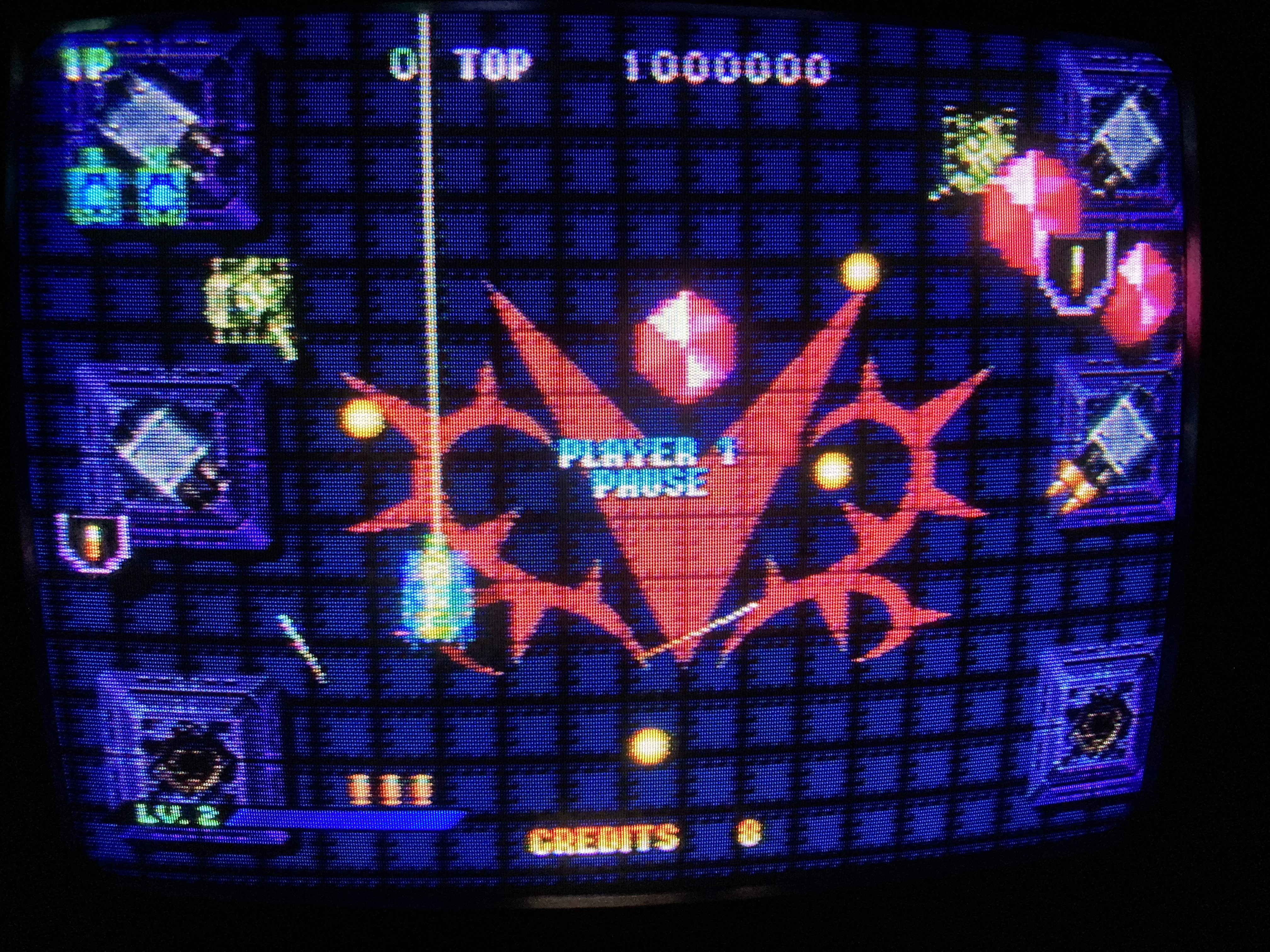

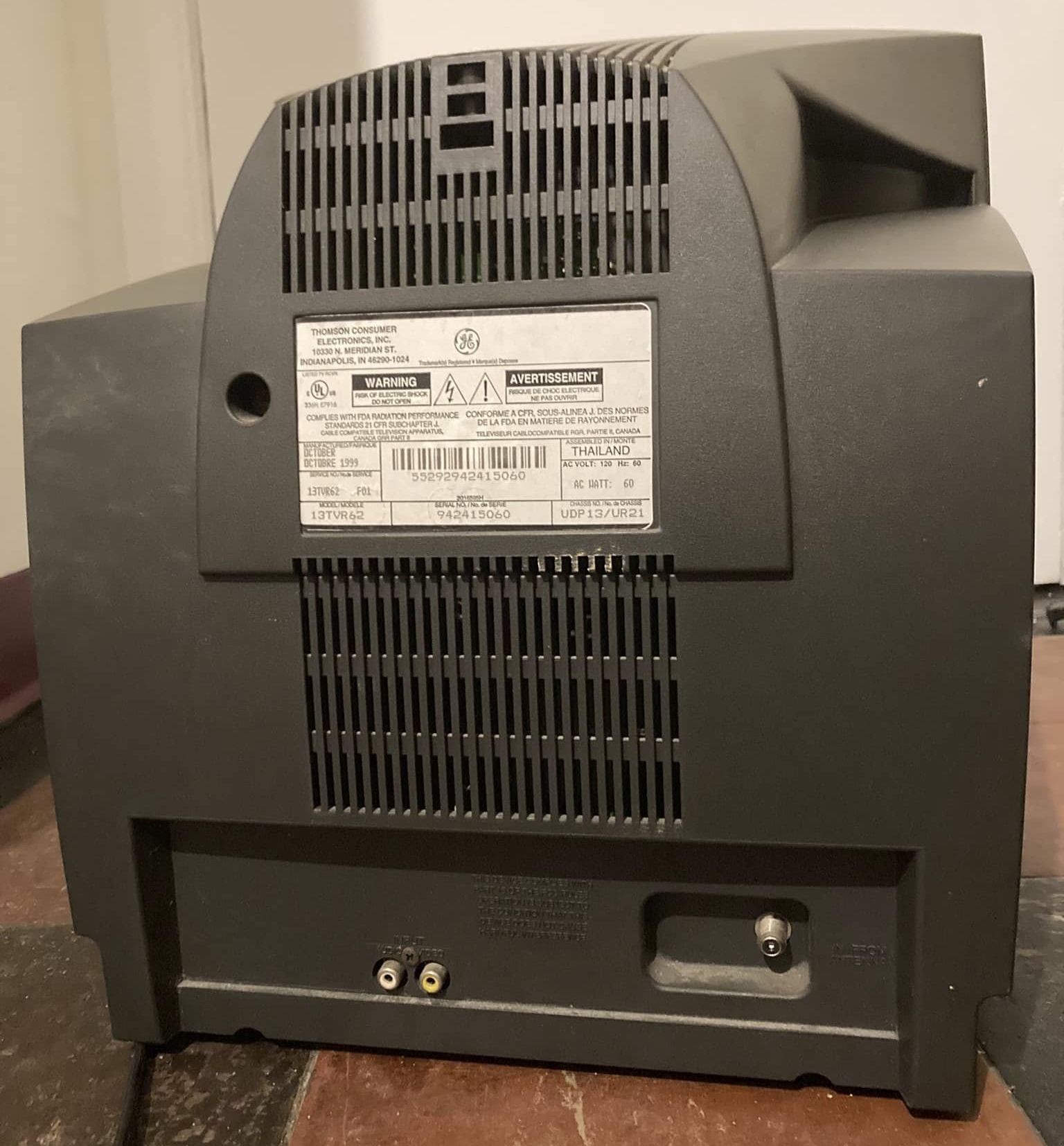

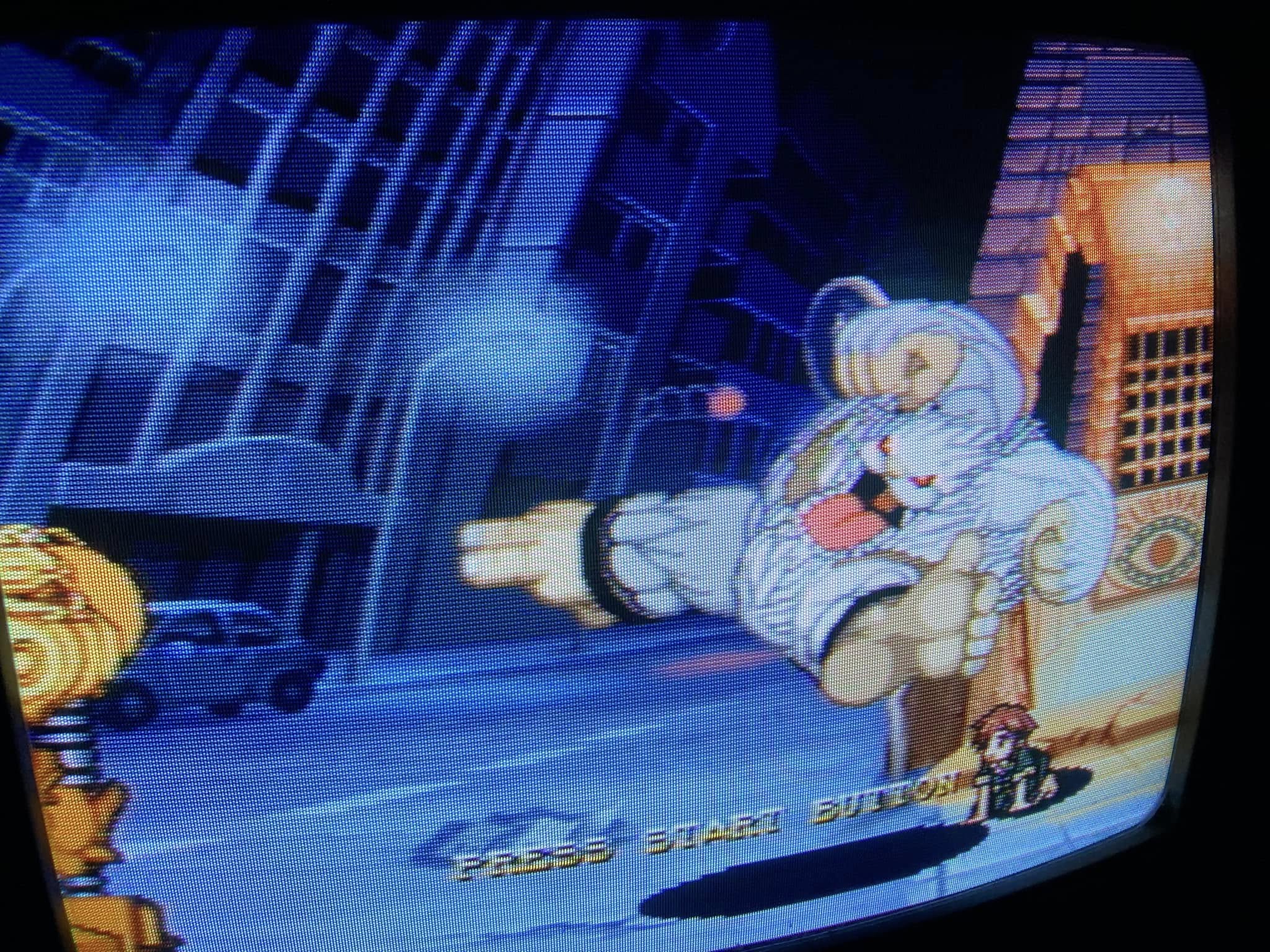

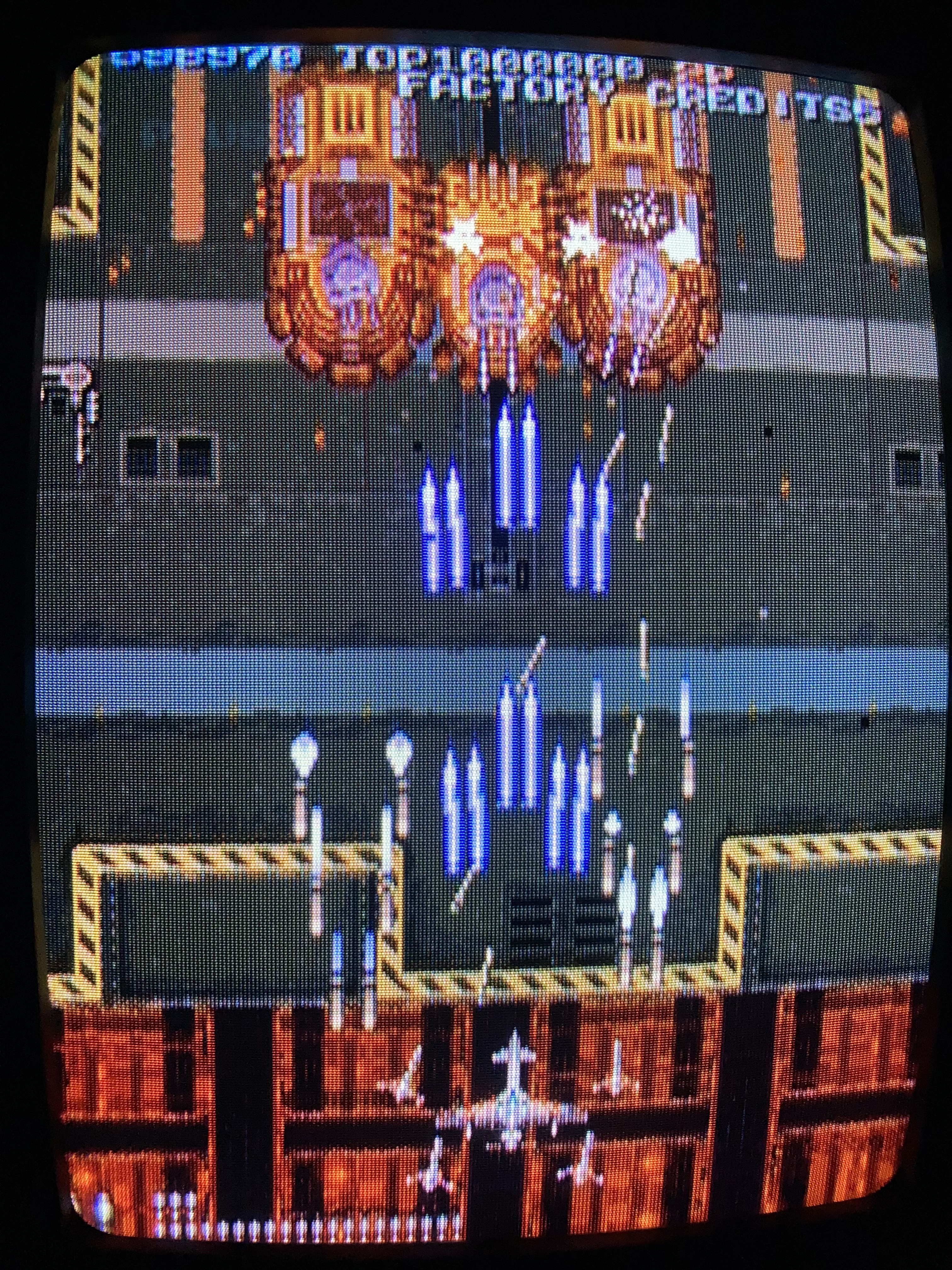

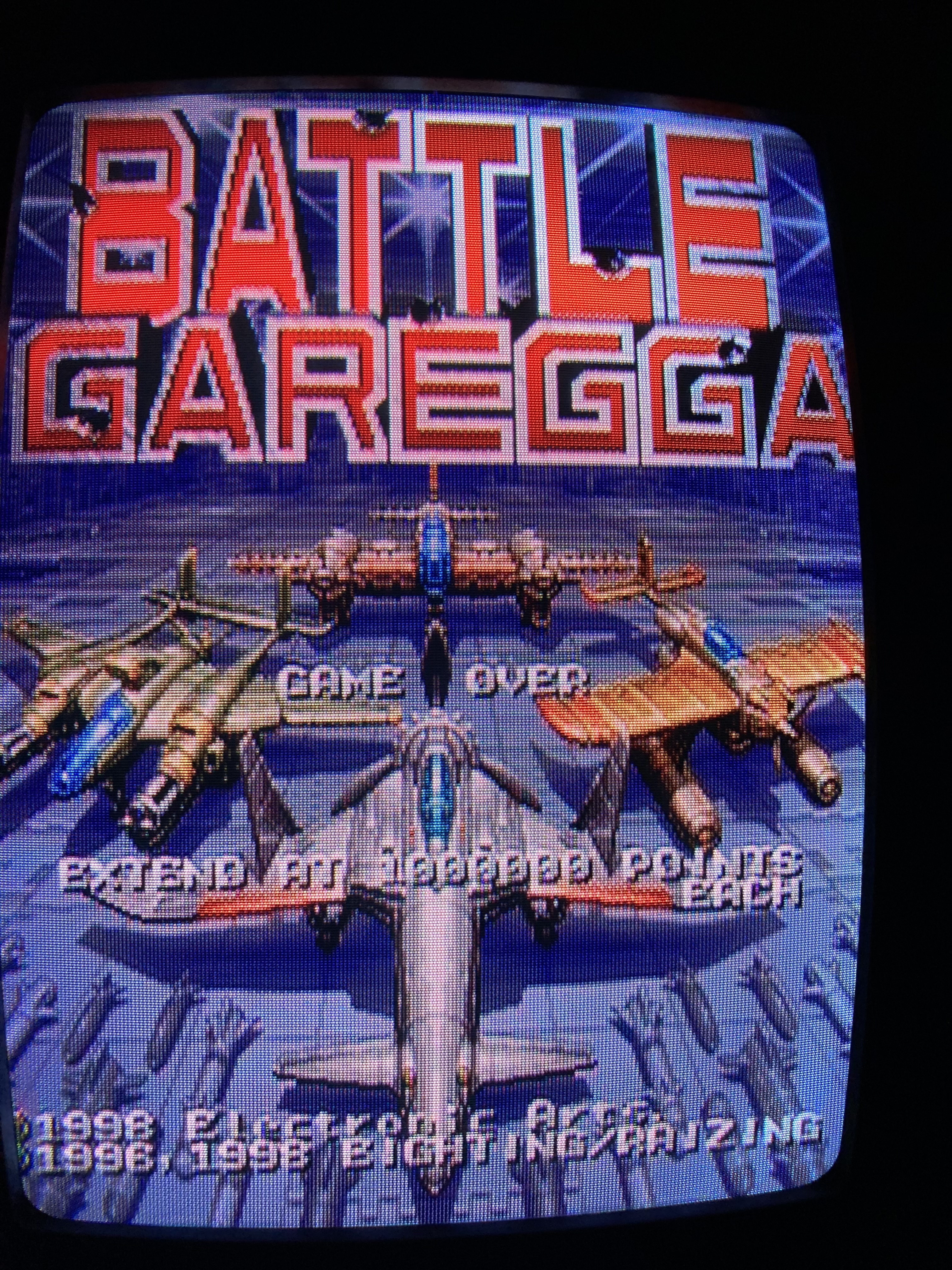

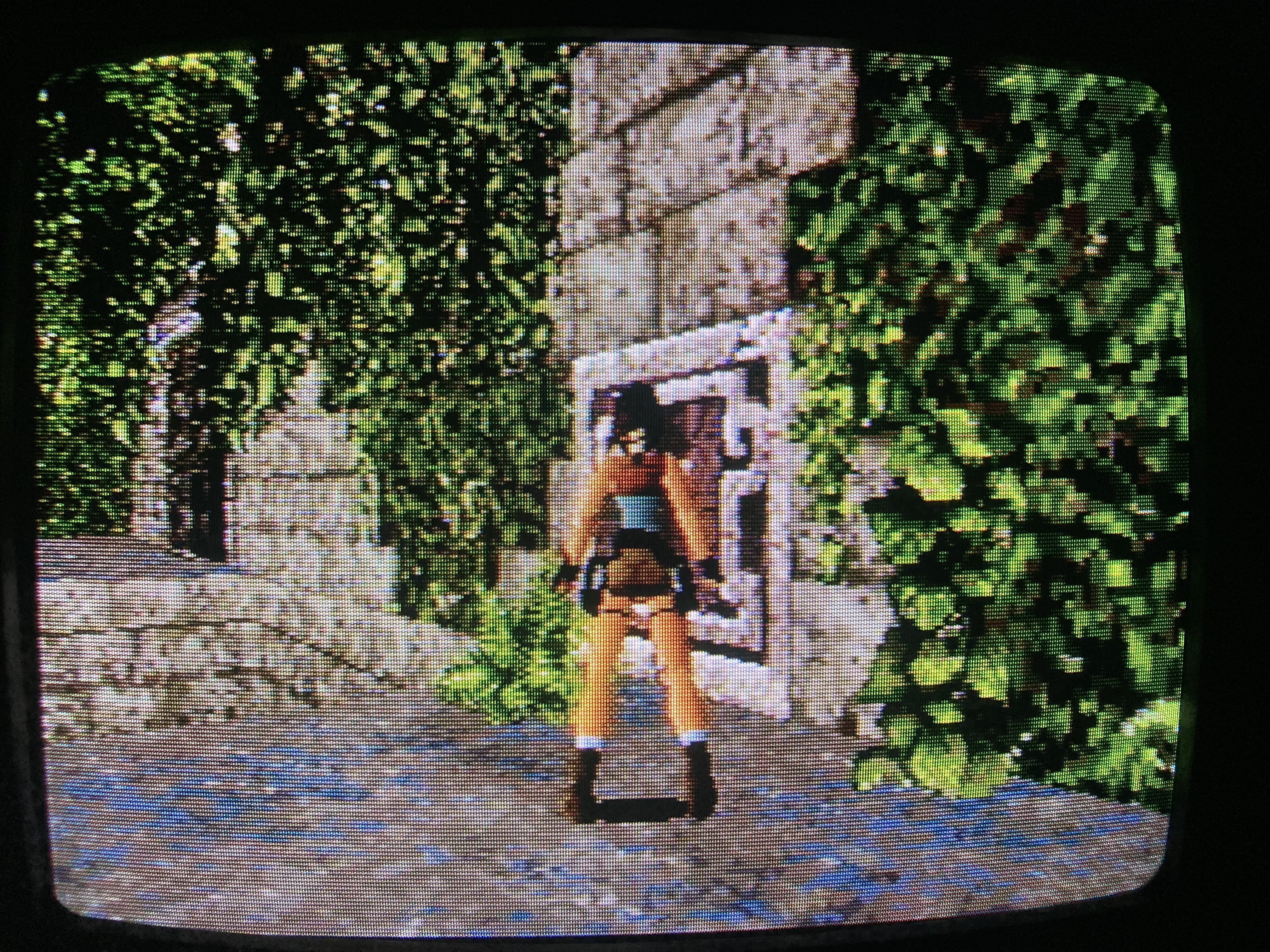

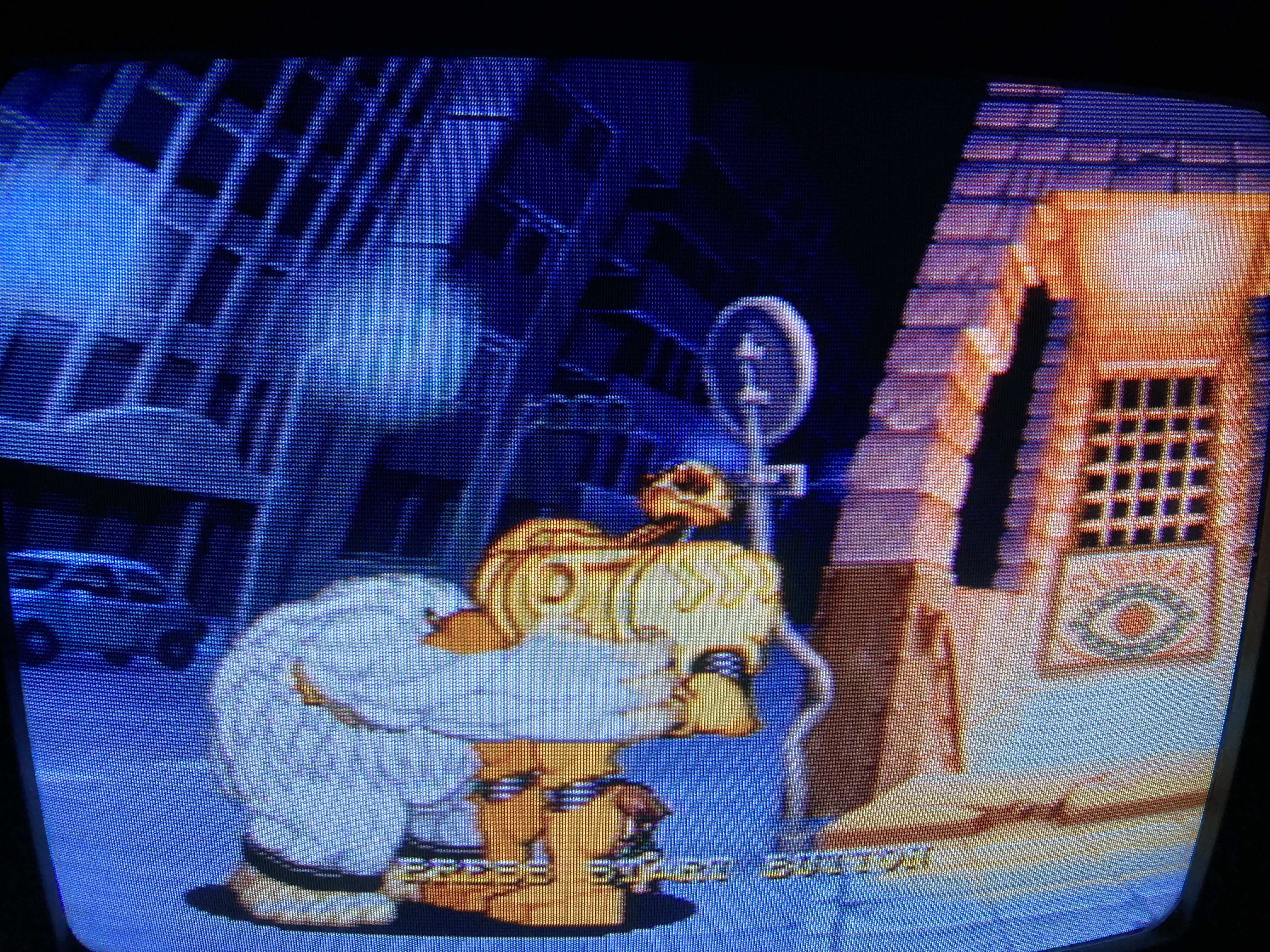

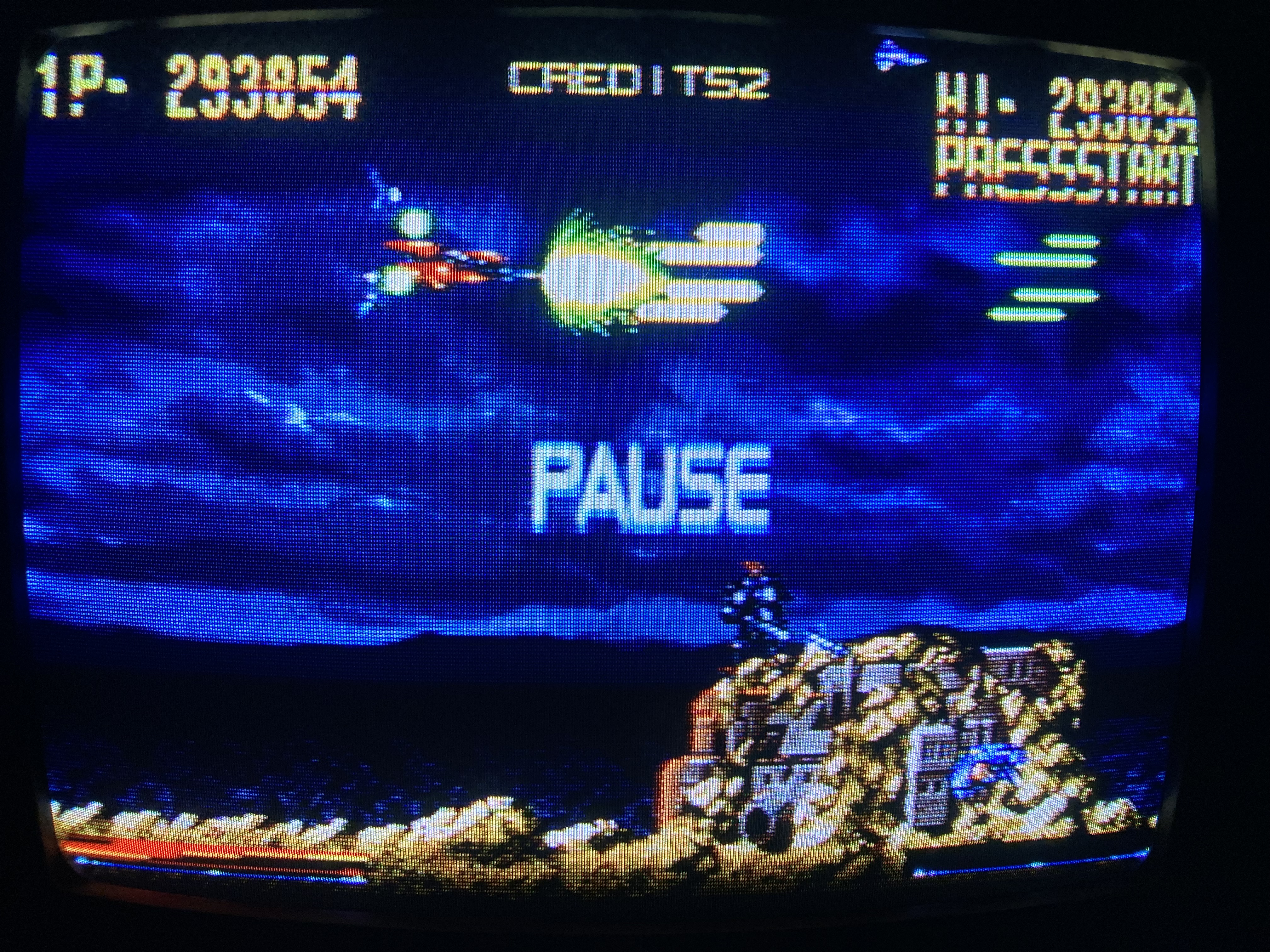

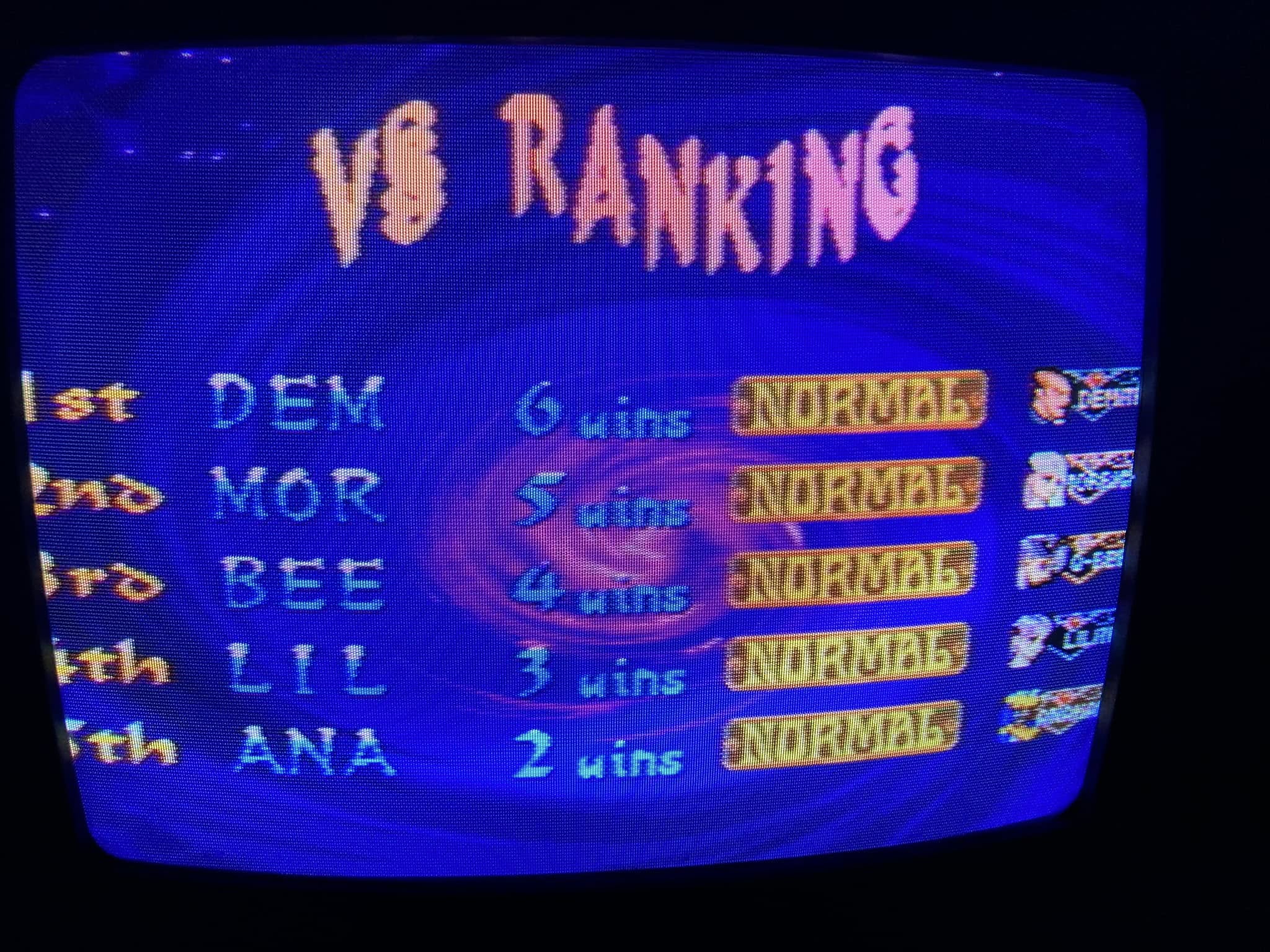

Gallery










Specifications | |
---|---|
Brand: | General Electric |
Manufacturer: | Thomson |
Model: | 13TVR62 |
Series: | TV/VCR Combo |
Viewable Size: | 13" |
Inputs: | Composite, RF |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Horz. Output Transistor: | S2000N |
Vertical Output IC: | TA8403K |
Jungle: | Toshiba, TA1268N |
Focus Type: | Single |
Tube: | Thai CRT Co. , A34JXV70X , A34JXV70X14 |
Heater Voltage: | 6.3v |
Deflection: | 90° |
Mask: |
Slot
![]() |
Pitch: | 0.64 mm |
Tint: | Dark |
Removable Glare Film: | No |
Yoke: | 9D062 |
Speakers: | Mono |
Chassis: | UDP13/UR21 |
Weight: | 29 lbs (13.2 kg) |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 2001 |
MSRP: | 199 USD |
Country of Manufacture: | Thailand |
Market: | North America |
Power Standard: | 120v |
Mounting: | Table Surface (Standard), Carrying Handle |
Mods: | RGB via Direct |
Degaussing: | Automatic on Power-on |
Tag: | Needs Service Manual |
