Summary

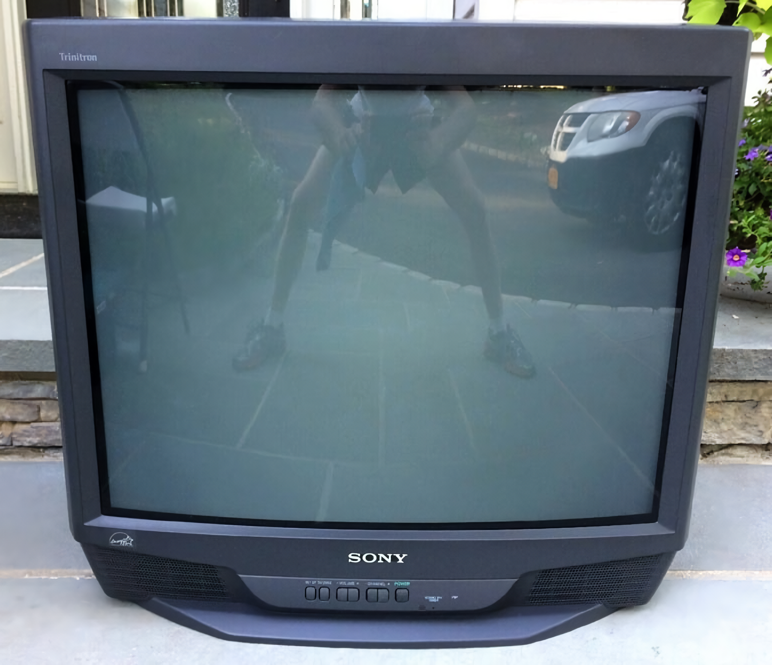

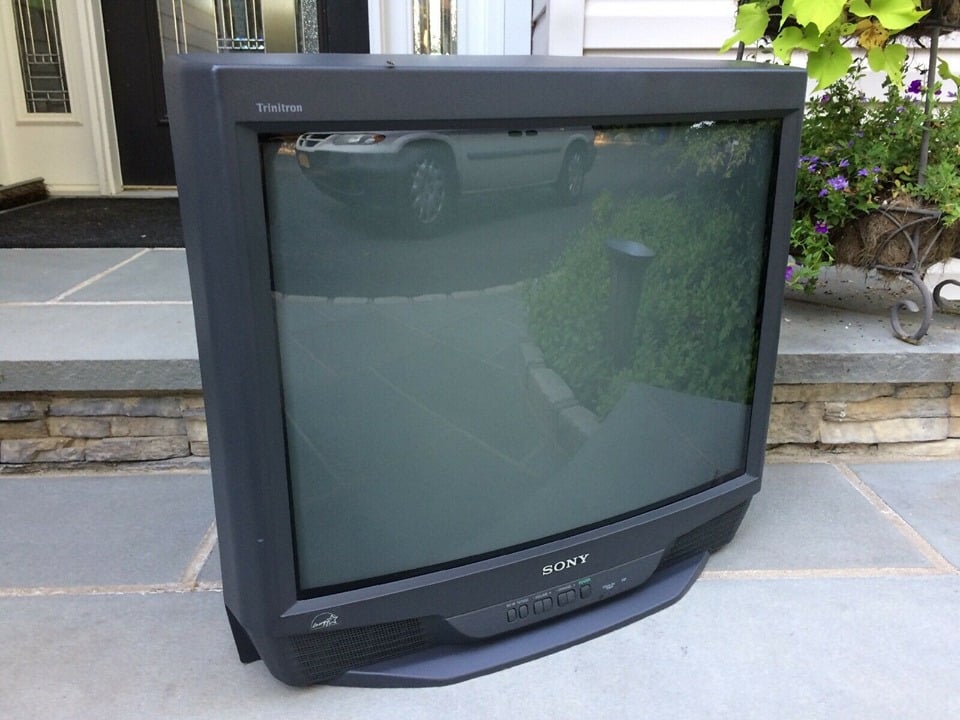

27" curved Trinitron CRT by Sony. Has RF, composite and s-video input. Originally manufactured at Sony's Mexico plant in 1999, one of the last curved Trinitron models.
Manuals
Notes

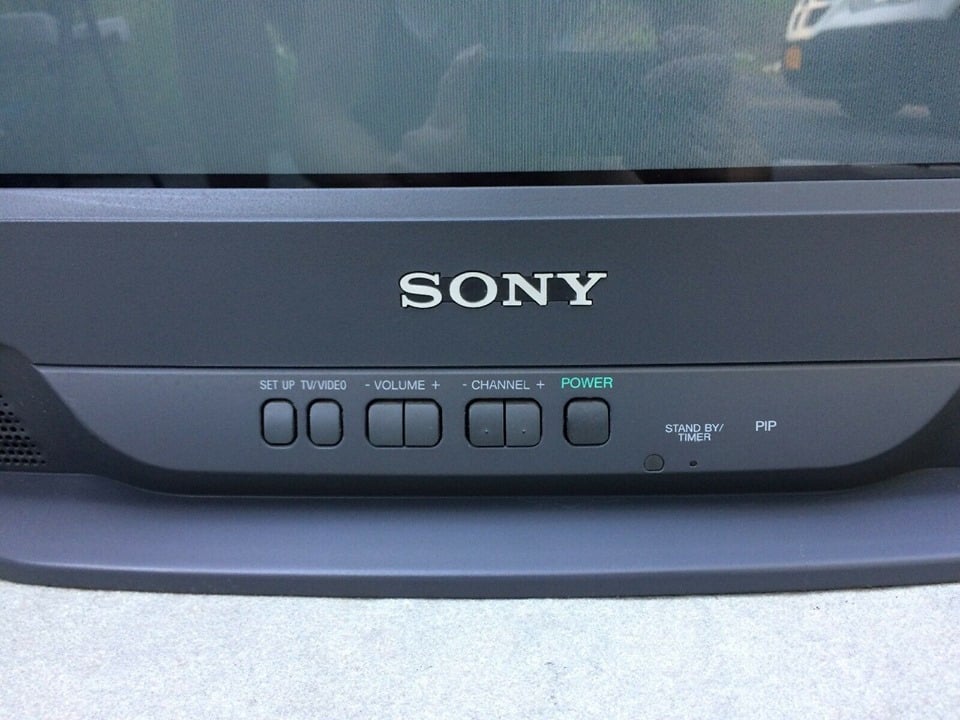

Despite looking seemingly identical to the KV-27S42, this set has Picture-In-Picture and a second AV input.
This set can also be modified for RGB via OSD mux as well as component YPbPr! Guide HERE

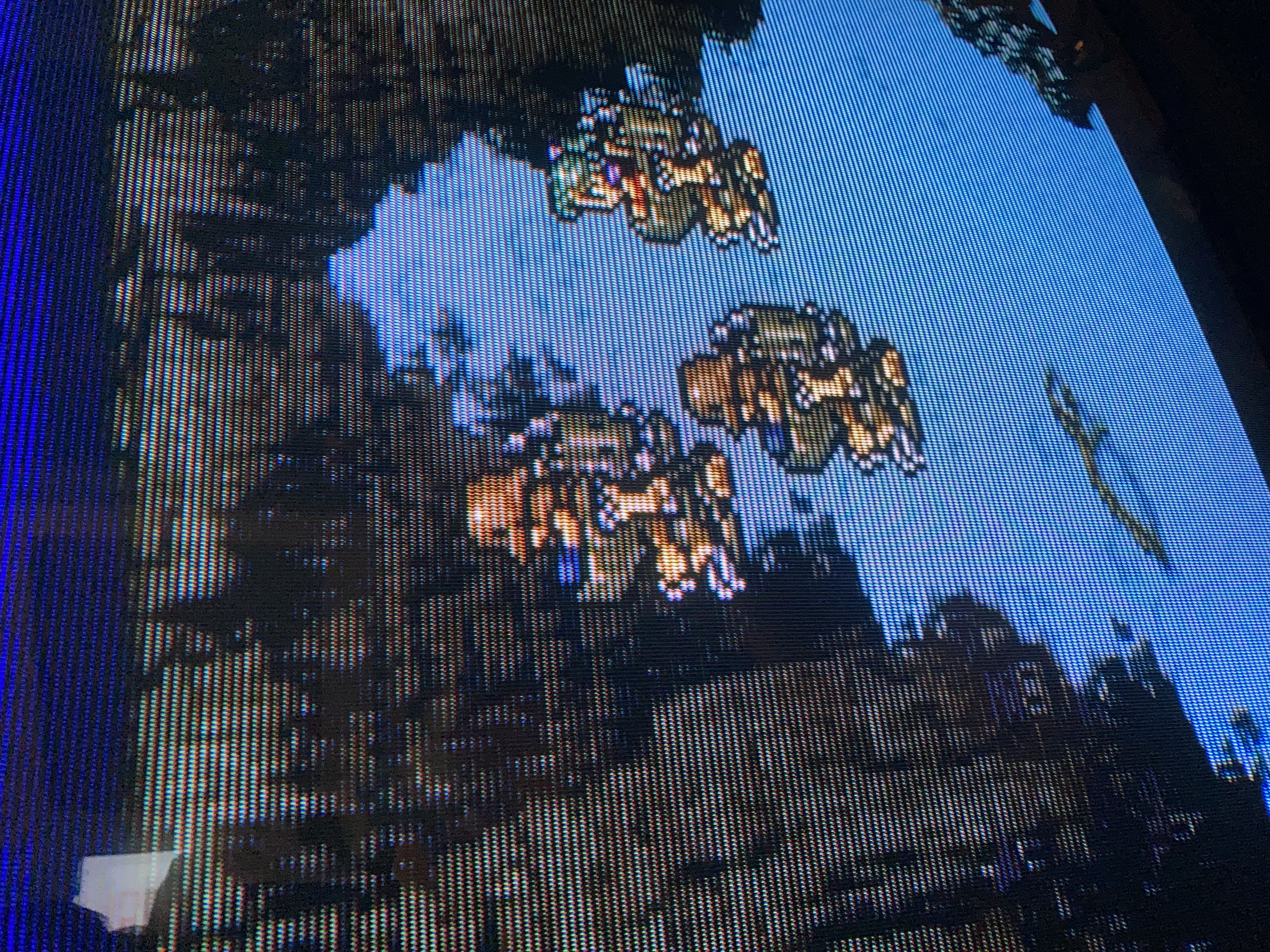

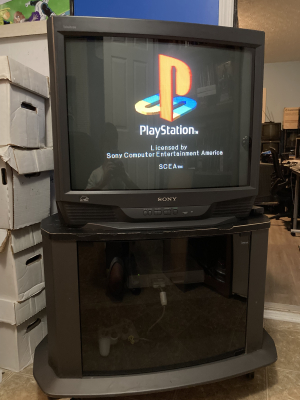

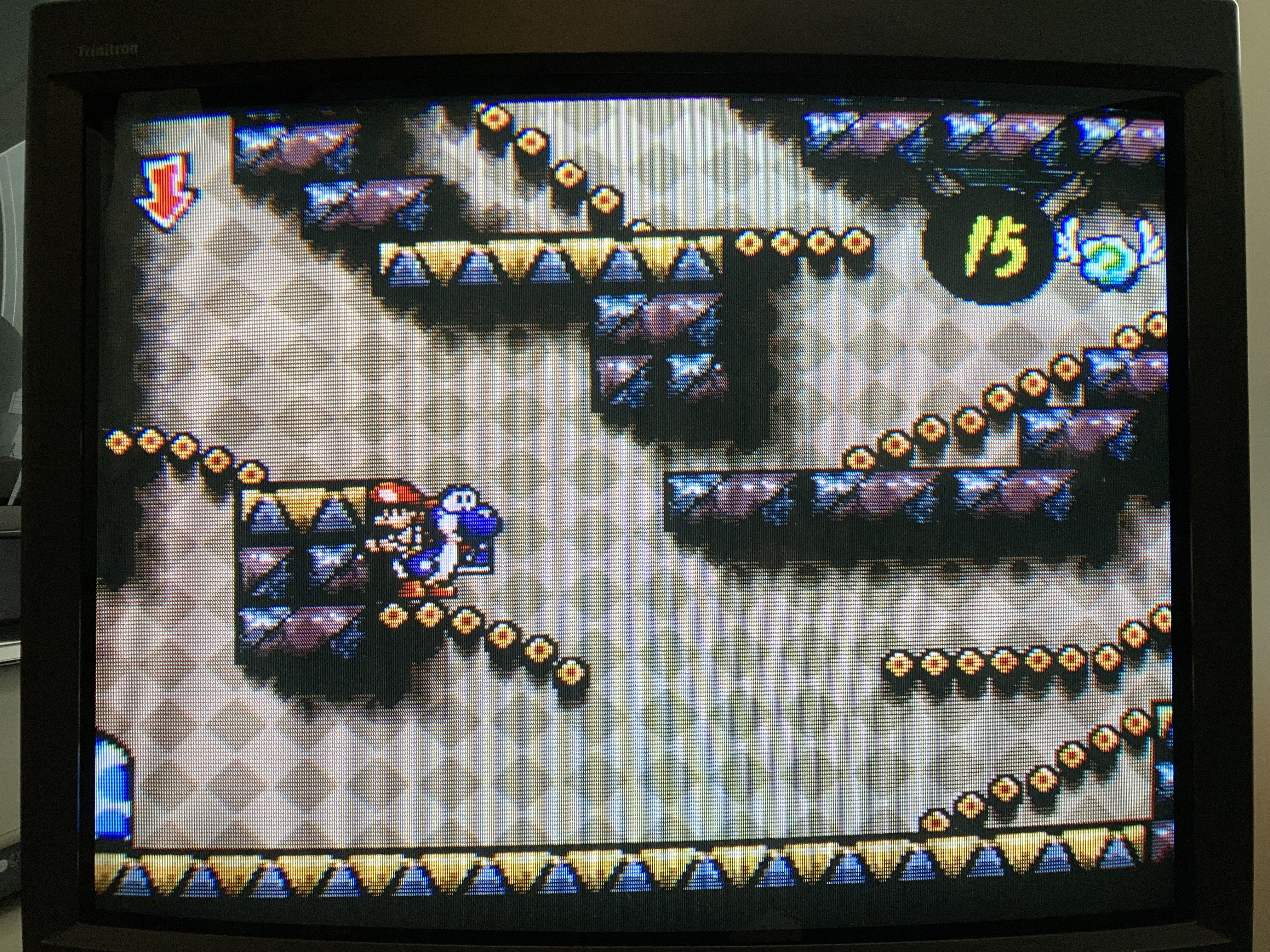

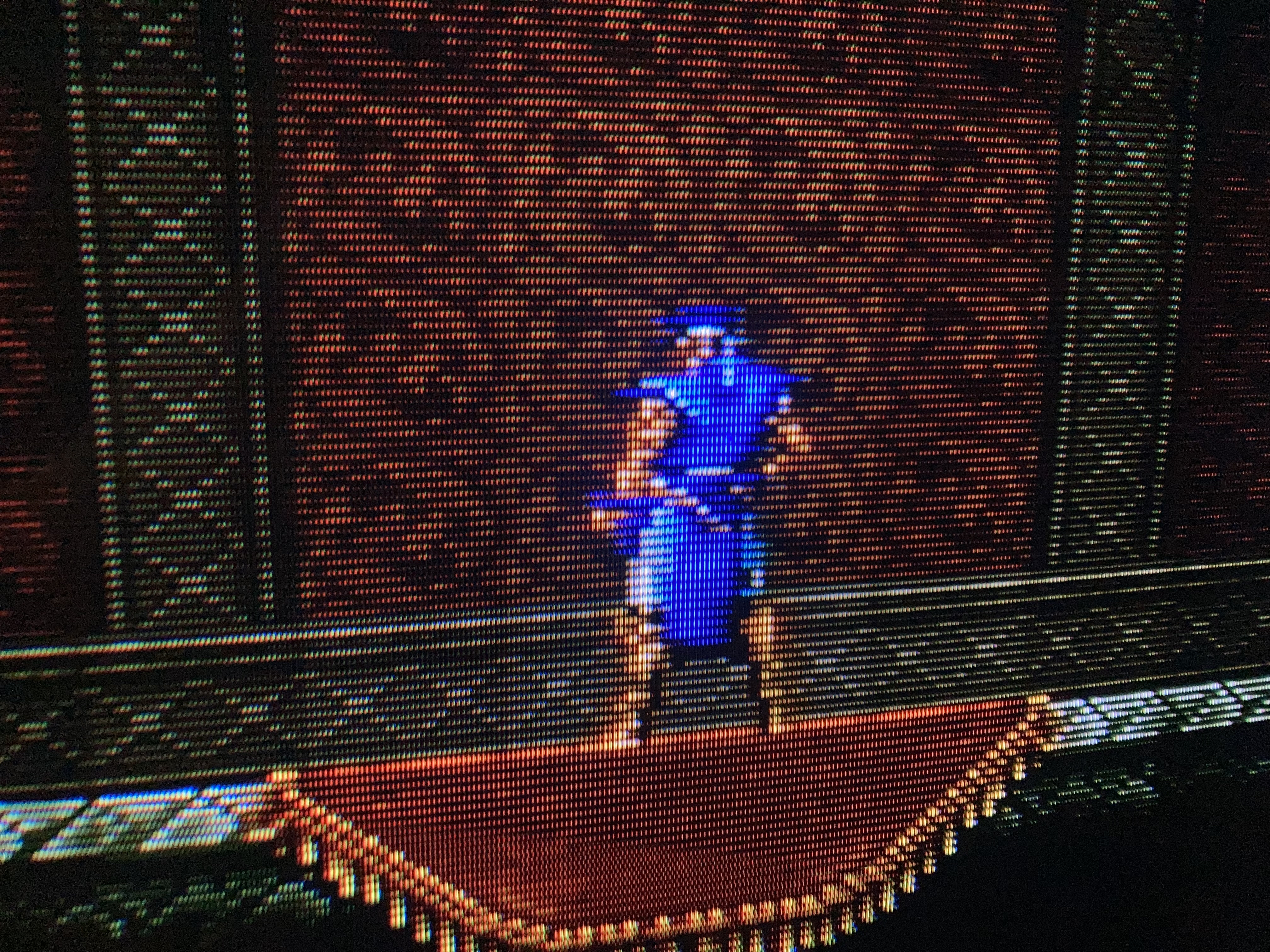

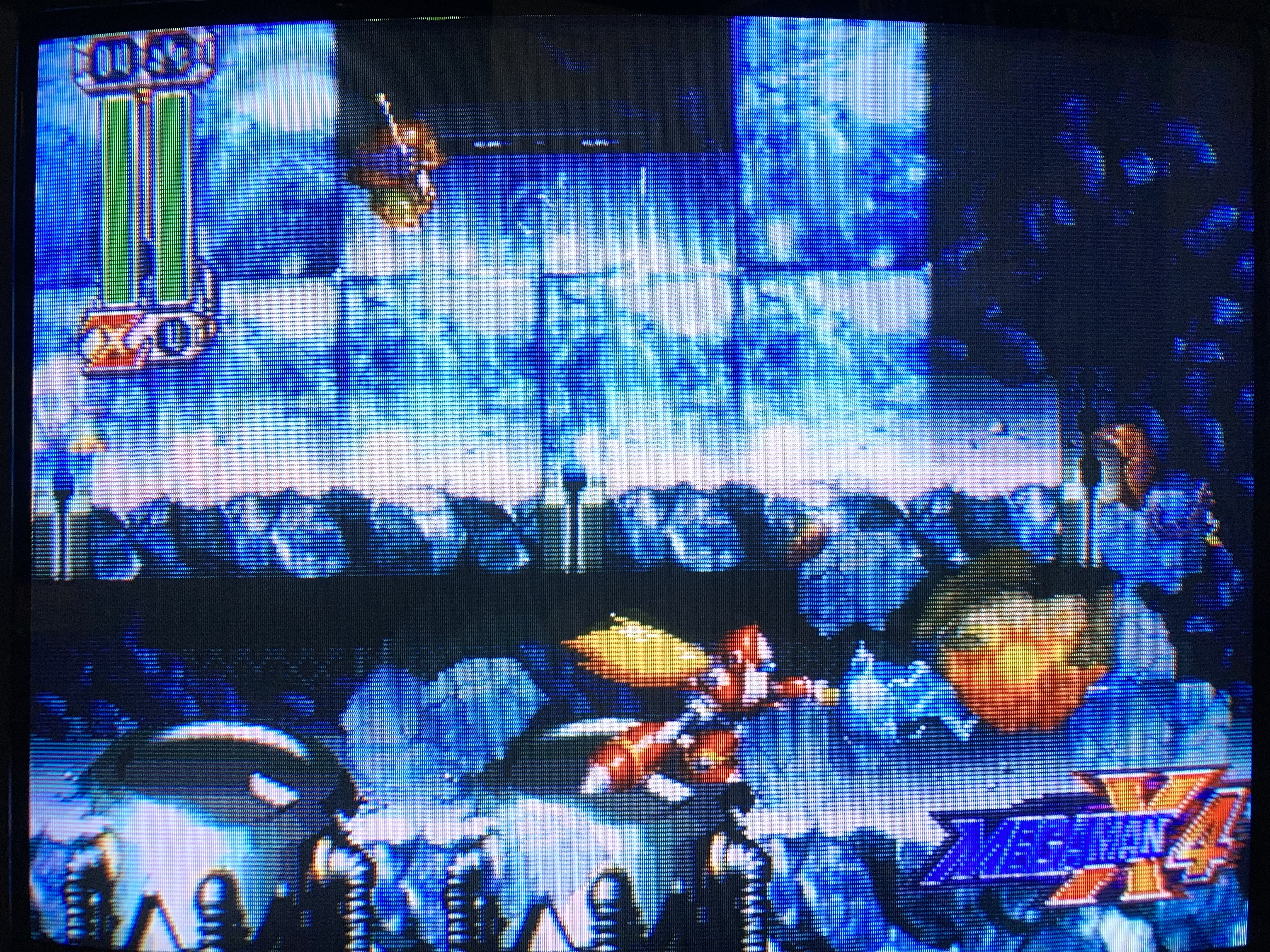

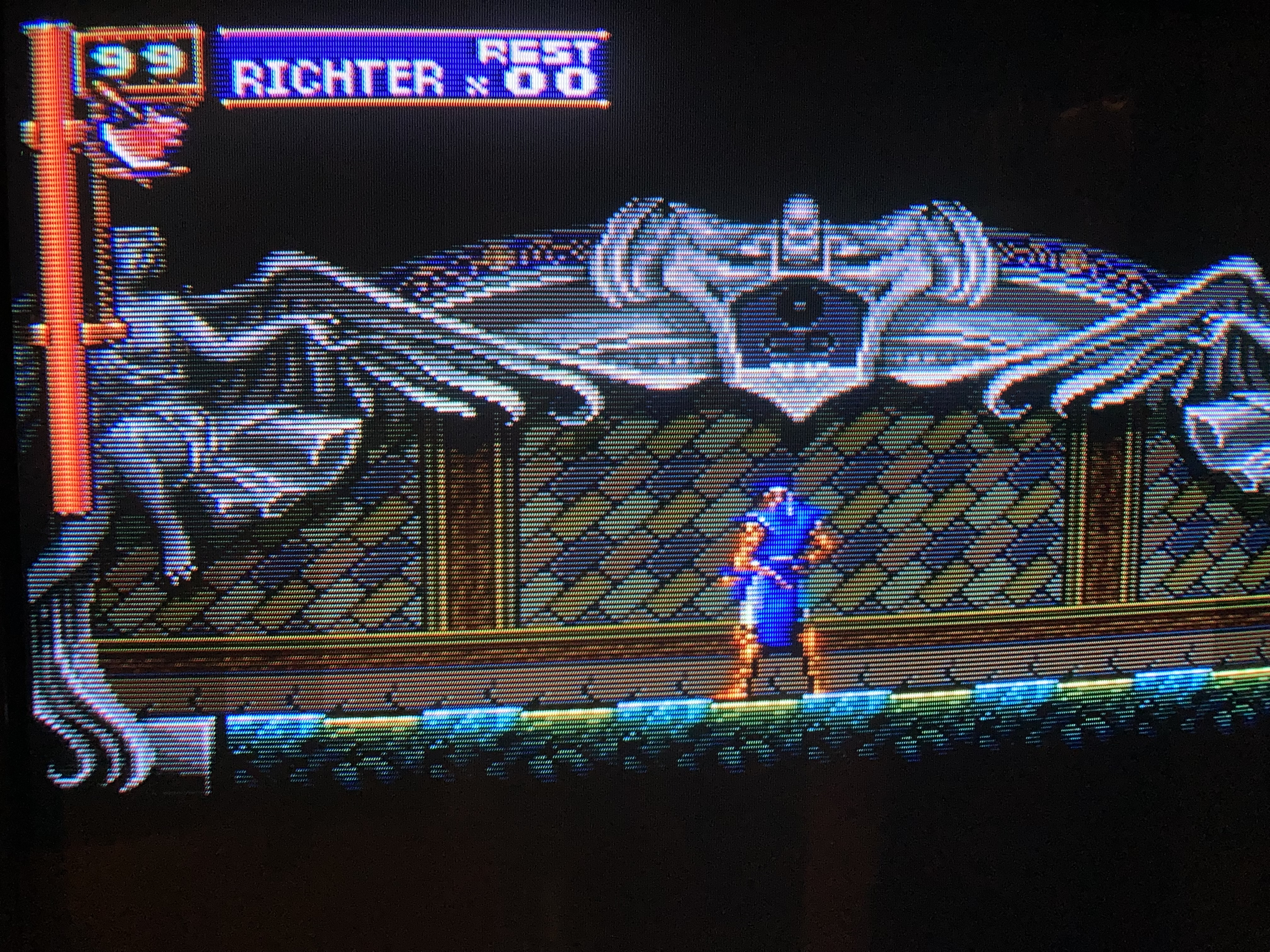

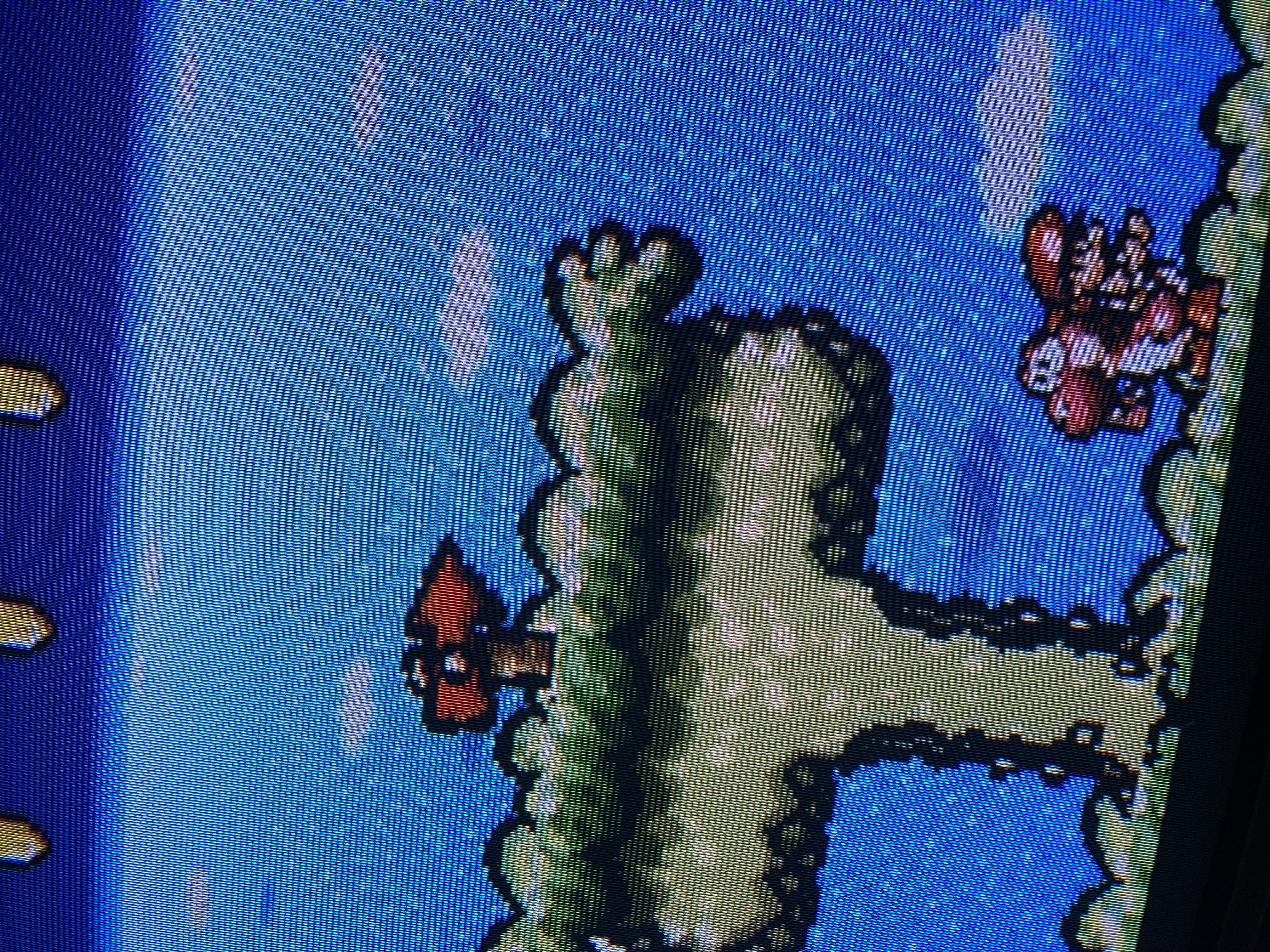

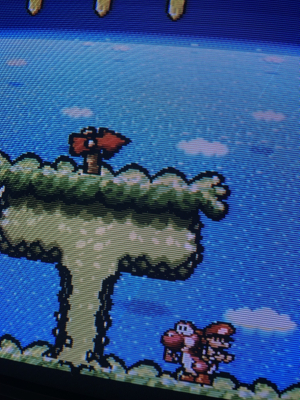

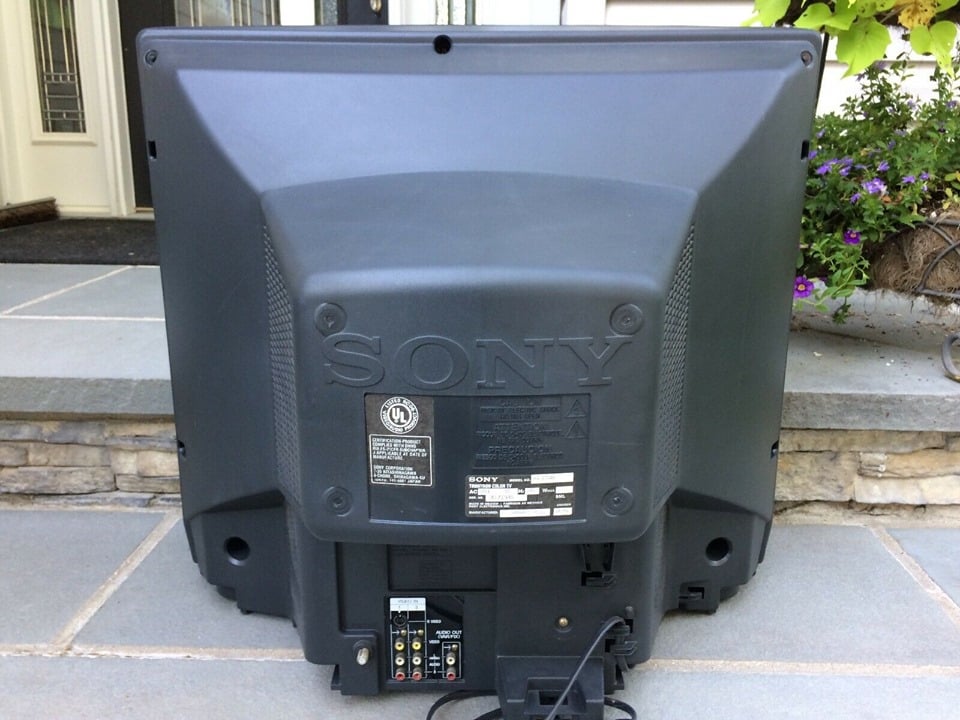

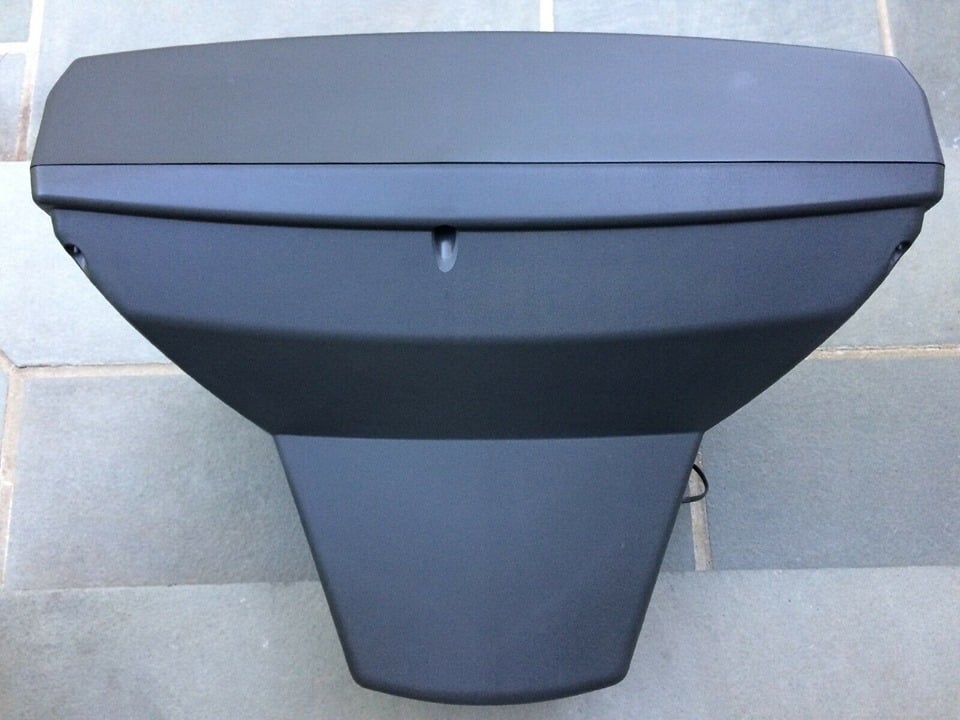

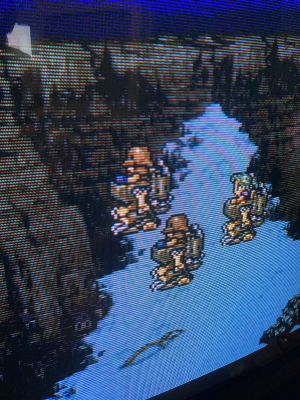

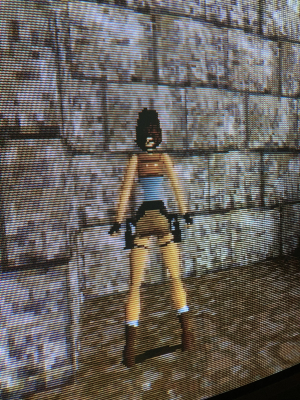

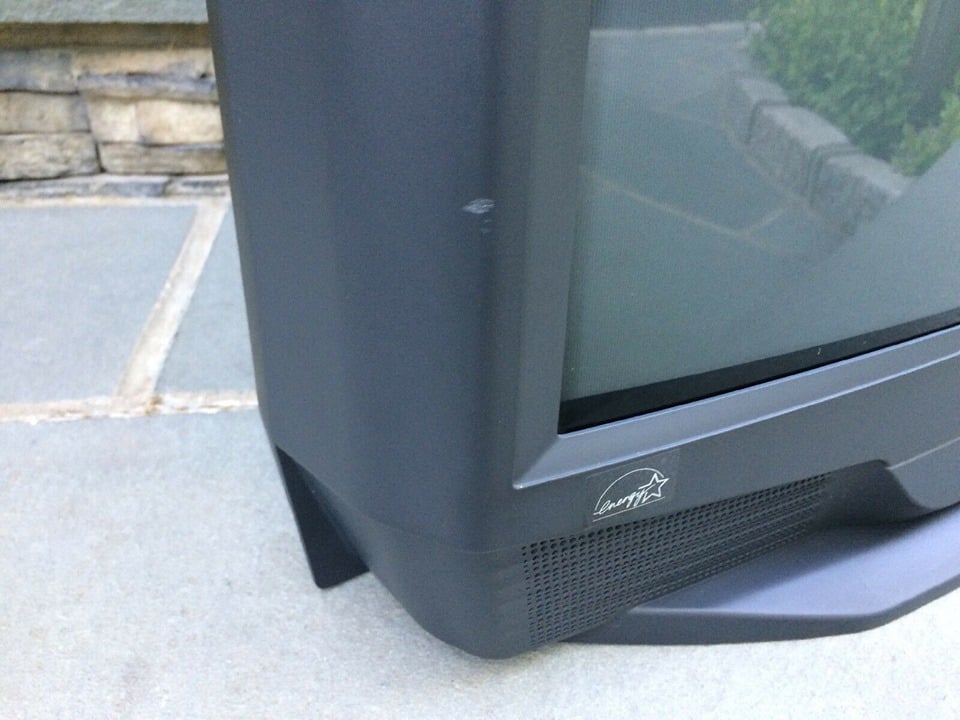

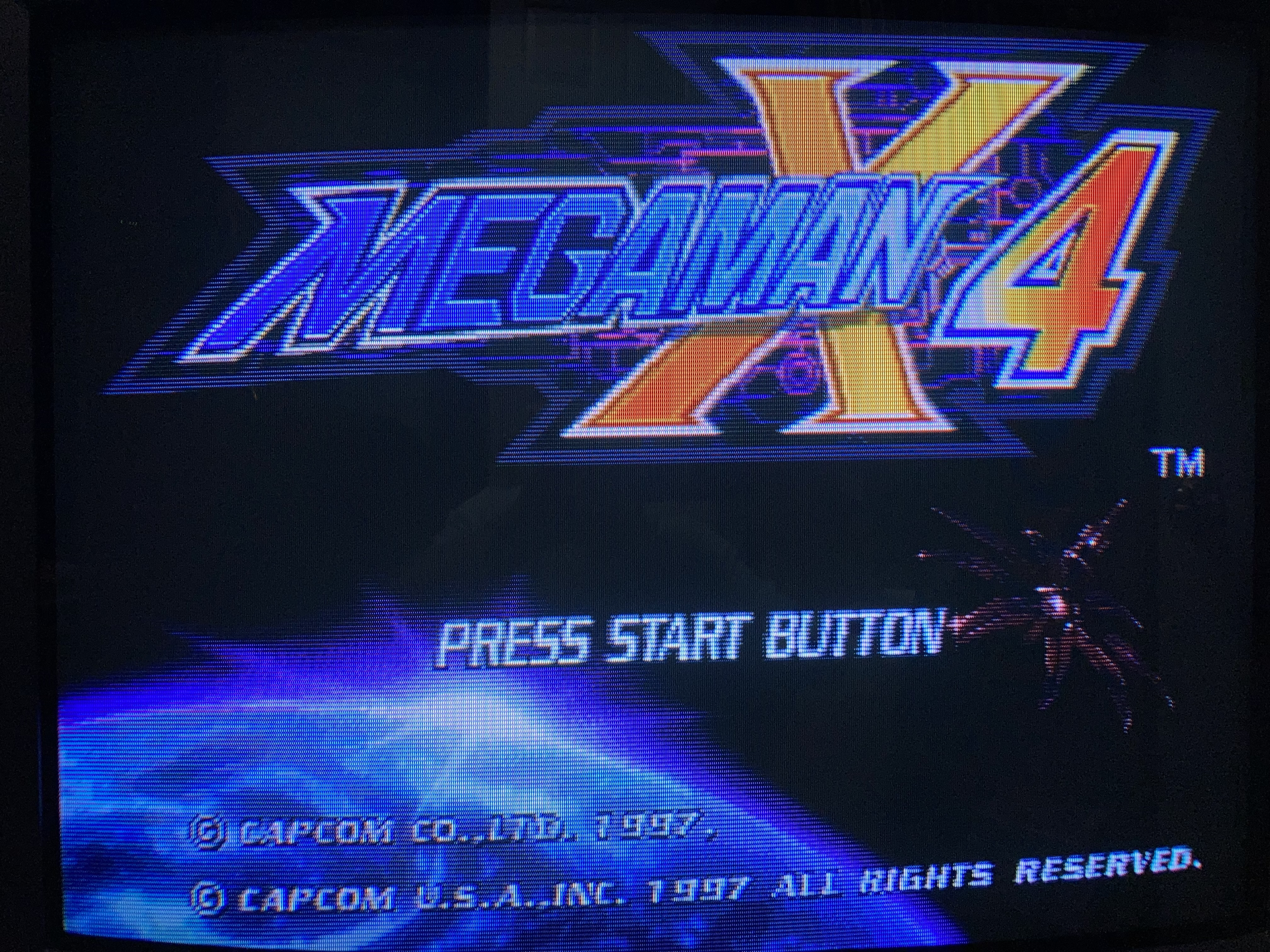

Gallery






















Specifications | |
---|---|
Brand: | Sony |
Manufacturer: | Sony |
Model: | KV-27S46 |
Series: | KV |
Viewable Size: | 27" |
Inputs: | Composite, S-Video, RF |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Jungle: | Sony, CXA2133S, CXA2133BS |
Comb Filtering: | 2-Line Digital |
Comb Filter IC: | Sony, CXD2073S |
Flyback: | 1-453-268-21, NX-4005, NX-X4J4 |
Focus Type: | Single |
Tube: | Sony FD Trinitron , A68LML50X |
Heater Voltage: | 6.3v |
Mask: |
Aperture Grille
![]() |
Pitch: | .75 mm |
Tint: | Dark |
Removable Glare Film: | No |
Yoke: | DYY29NXA-V2 |
Speakers: | Stereo, 5W x 2 |

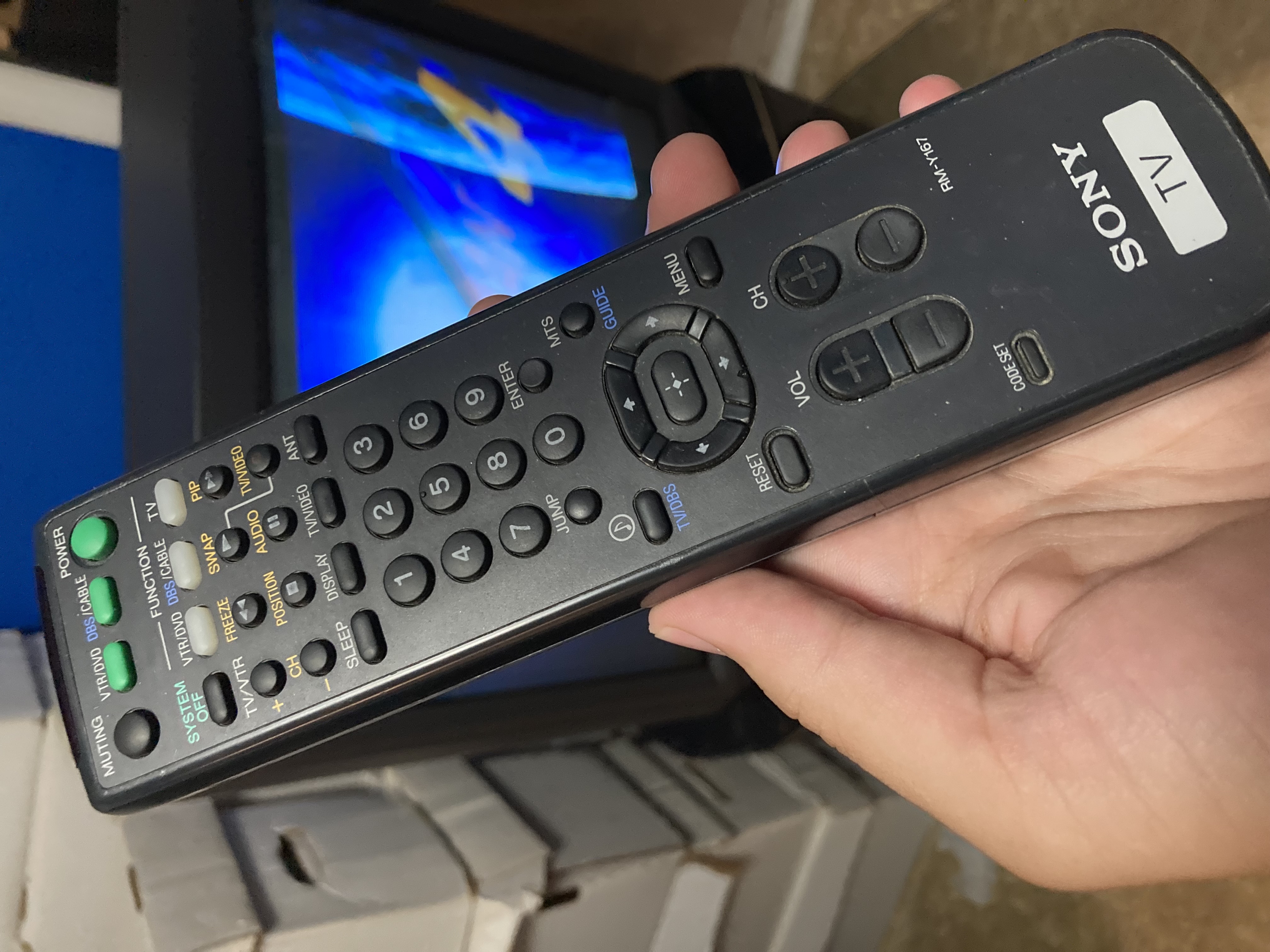

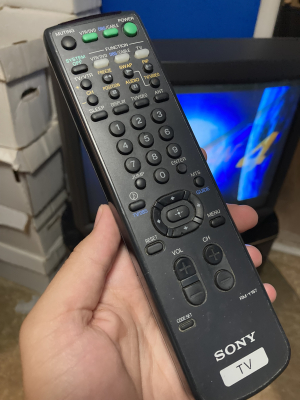

Remote: | RM-Y165 |
Chassis: | BA-4D |
Weight: | 83.6 lbs (37.9 kg) |
Dimensions (W/H/D): |
660 x 597 x 508 mm
(25.9 x 23.5 x 20") |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 1999 |
MSRP: | 499 USD |
Country of Manufacture: | Mexico |
Market: | North America |
Power Standard: | 120v |

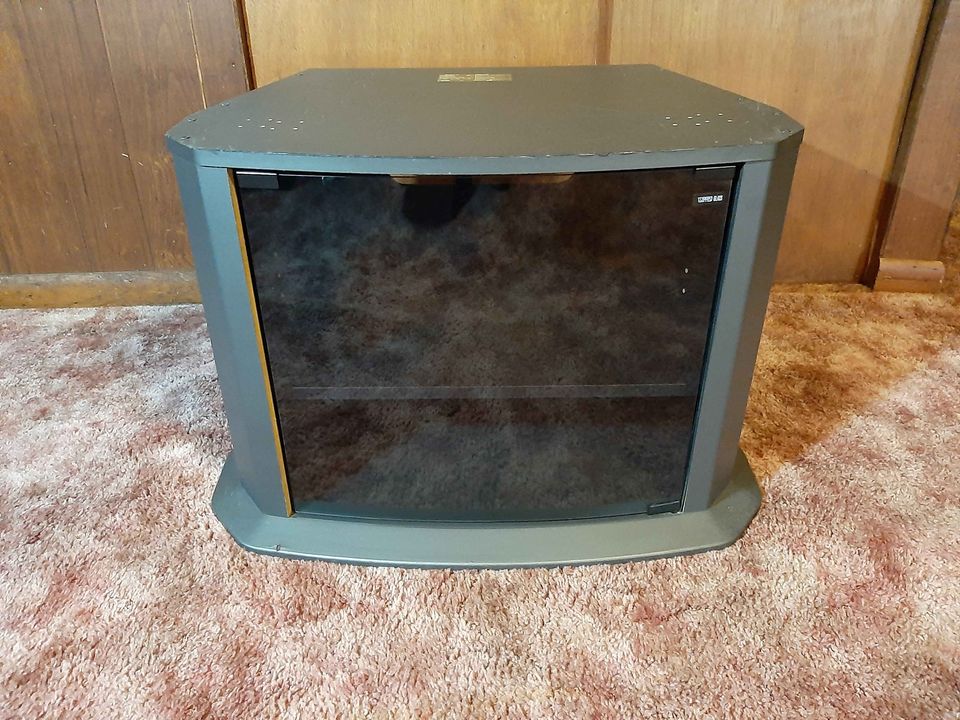

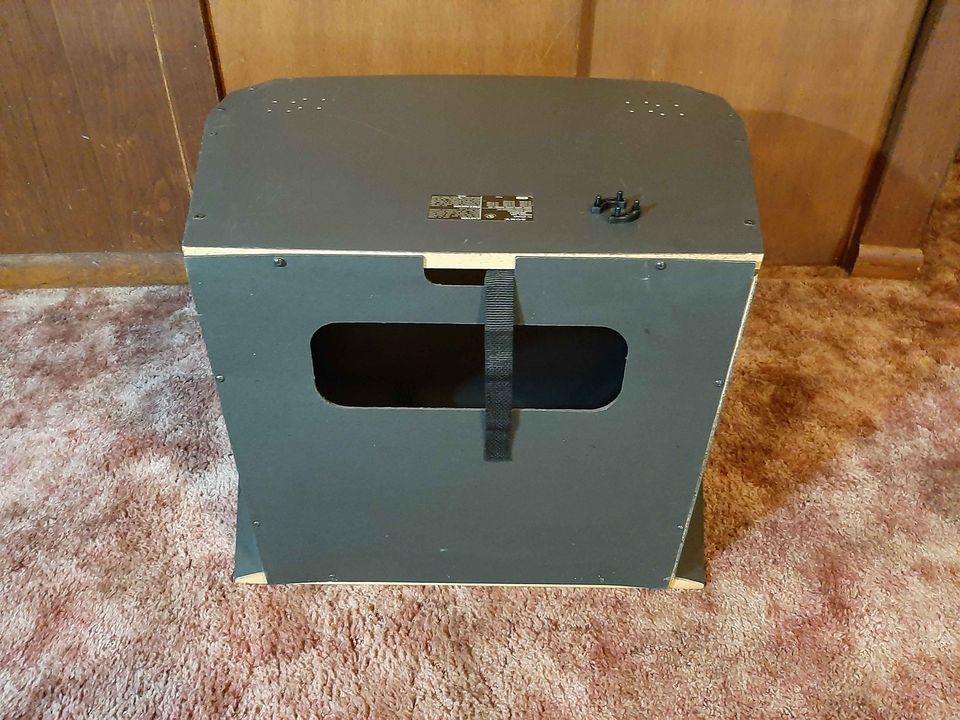

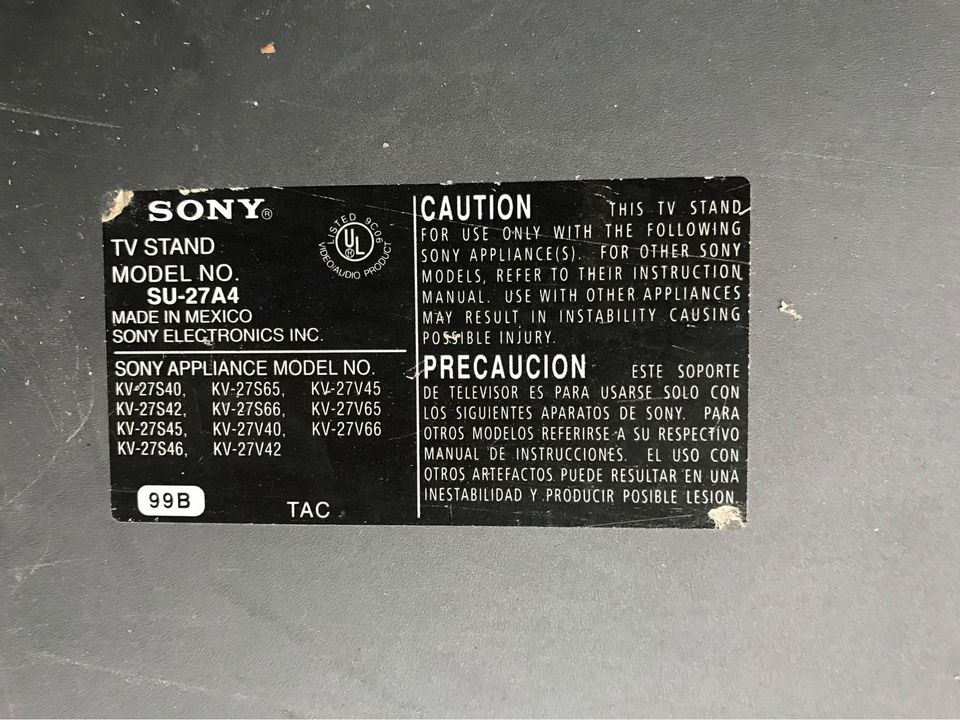

Mounting: | Table Surface (Standard), OEM Stand, SU-27A4 |
Mods: | RGB via Mux, Component YPbPr |
Degaussing: | Automatic on Power-on |
